Stainless steel 316 Underwater LED Swimming Light
The FD-BL020R18 is an 18W underwater LED swimming light with a stainless steel 316 body, designed for permanent installation in pools, fountains, and other aquatic environments. It operates on DC12V or DC24V, allowing integration with low-voltage control systems. The fixture is rated IP68 for full submersion, ensuring reliable performance in continuous water exposure. The colour temperature range of 2800K to 6500K and RGB colour options provide flexibility for ambient lighting and accent effects in swimming pools and water features.

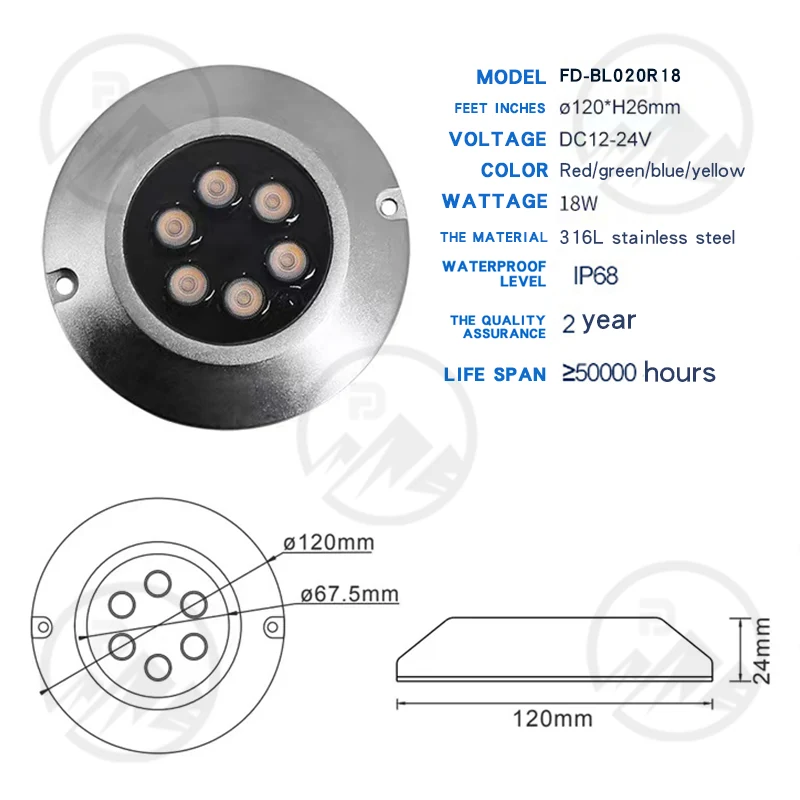

| Model | FD-BL020R18 |
|---|---|
| Power | 18W |
| Input Voltage | DC12/24V |
| IP Rating | IP68 |
| Dimension | D120 x H26 mm |
| Material | Stainless steel 316 |
| Colour | 2800-6500K/R/G/B |
| Life Span | ≥50000 Hours |
| Warranty | 2 Years |
Key Benefits
- Stainless steel 316 body resists corrosion in chlorinated and saltwater environments
- IP68 rating ensures full protection against water ingress during permanent submersion
- DC12V or DC24V input allows compatibility with low-voltage pool lighting systems
- Adjustable colour temperature from 2800K to 6500K and RGB options support multiple lighting effects
- 18W power draws low energy while delivering sufficient output for pool illumination
- Long life span of at least 50,000 hours reduces maintenance and replacement frequency
Application Scenarios
- Illuminating the bottom and walls of residential and commercial swimming pools
- Highlighting water features such as fountains, cascades, and waterfalls
- Creating dynamic lighting effects in poolside landscapes and outdoor aquatic installations
- Providing safety lighting in pool edges and steps with consistent visibility
Who It Is For
- Lighting contractors installing permanent underwater fixtures in swimming pools
- Landscape lighting designers specifying accent and safety lighting in aquatic features
- Electrical wholesalers supplying pool and fountain lighting components
- Brand owners sourcing OEM underwater lights under their own label
Problems It Solves
- Standard steel or aluminium fixtures corrode quickly in chlorinated or saltwater pools
- Non-IP68 rated lights fail when submerged for extended periods or during maintenance
- Fixed colour temperature lights limit design flexibility in pool and fountain projects
- High-power underwater lights increase energy use and heat generation in enclosed pool environments
- Shorter life spans require frequent replacements during pool maintenance cycles
Technical Features
- Stainless steel 316 body for corrosion resistance in harsh aquatic environments
- IP68 sealing for permanent submersion without risk of water ingress
- DC12V or DC24V input voltage for compatibility with low-voltage pool lighting systems
- Adjustable colour temperature from 2800K to 6500K and RGB colour options
- 18W power consumption with a rated life span of at least 50,000 hours
- Compact D120 x H26mm form factor for easy installation in tight pool or fountain spaces
Materials
- Stainless steel 316 body for long-term resistance to chlorinated and saltwater corrosion
- Sealed electrical connections with waterproof gaskets and epoxy potting
- LED module with heat-conductive base for thermal stability in submerged conditions
Manufacturing Process
- Stainless steel 316 body machining and polishing
- LED module assembly with heat-conductive interface
- Sealing of electrical connections with waterproof gaskets and epoxy
- IP68 pressure test before final assembly
- Aged lighting test under submersion for 72 hours before packing
Quality Control
- Incoming inspection of stainless steel 316 material for grade compliance
- IP68 pressure test on every unit before packing
- 72-hour submersion ageing test under DC12V or DC24V
- Stated defective rate below 0.2%
- Final visual and functional check before shipment
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in DC12V or DC24V input versions to match site control systems
- Colour temperature and RGB options can be specified per order
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Stainless steel 304 underwater light
316 offers better corrosion resistance in chlorinated and saltwater, critical for long-term pool use
Plastic-bodied underwater light
316 body is more durable and resistant to impact and UV degradation, but heavier and more expensive
Mains-voltage underwater light
DC12V/24V reduces safety risk and allows use with low-voltage control systems, but requires external power supply

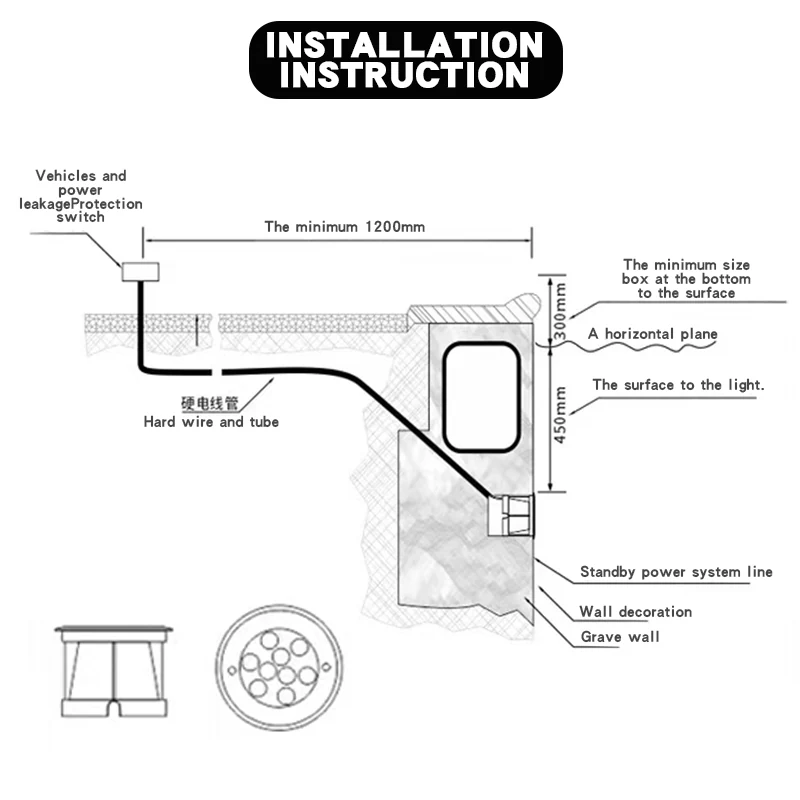

Use Guide
- Install the fixture in a dry environment before submerging to avoid water ingress during wiring
- Use a waterproof connector and seal all joints before submerging the light
- Ensure the power supply is rated for DC12V or DC24V and compatible with the fixture's input
- Avoid direct contact between the fixture and pool walls during installation to prevent stress on seals
- Clean the lens periodically during pool maintenance to maintain light output
Stainless steel 316 Underwater LED Swimming Light Questions
What is the input voltage for this underwater light?
The fixture operates on DC12V or DC24V, suitable for low-voltage pool lighting systems.
Is the light rated for permanent submersion?
Yes. It is rated IP68, which means it is designed for continuous submersion in water.
Can the colour temperature be changed after installation?
The colour temperature and RGB options are set during production. Custom colour settings can be specified in the order.
What is the warranty period?
This model carries a 2-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Is the driver included?
The fixture is supplied without a driver. The driver must be provided separately to match the site's DC12V or DC24V system.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
