Round Shape LED Neon Strip Light
The FD-NS02010 is a 10W round-shaped LED neon strip light designed for architectural and commercial linear lighting applications. It features a flexible silicon body with a diameter of 14mm, rated IP68 for full immersion protection, and uses OSRAM LED chips at a density of 144 LEDs per meter. The light operates on AC85-265V and is suitable for facade, office, and interior linear lighting where a continuous, low-profile glow is required. The driver is supplied by FENGDIAN and can be integrated into the strip or omitted for site-supplied drivers.
| Model | FD-NS02010 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP68 |
| Dimension | D14 mm |
| Material | Silicon |
| LED Chip | OSRAM |
| LED Quantity | 144 LEDS/M |
| Driver | FENGDIAN |
| Warranty | 3 Years |
Key Benefits

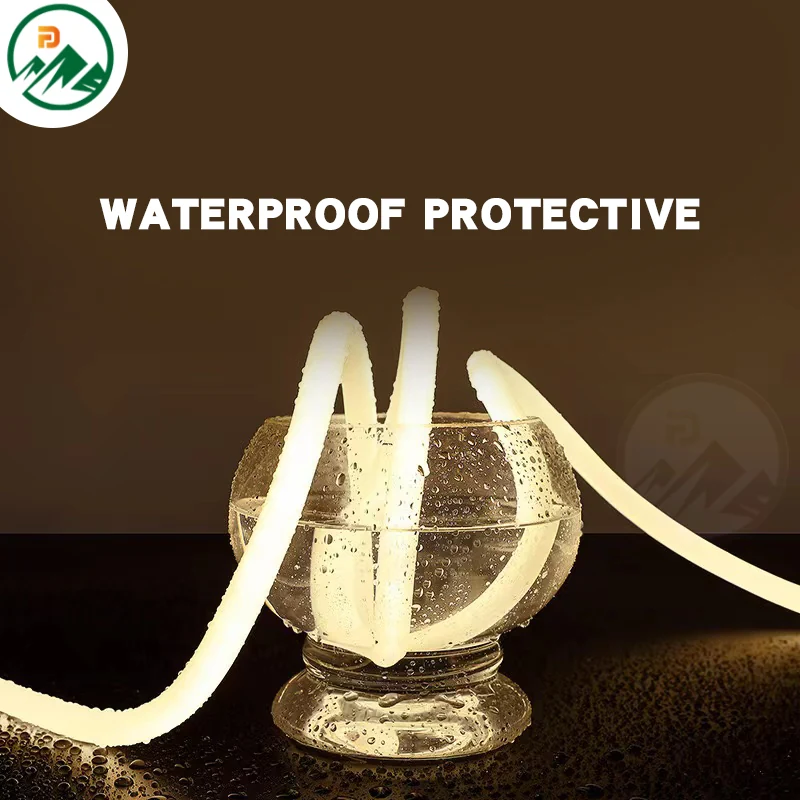

- IP68 rating allows installation in wet or submerged environments without damage
- Round shape with 14mm diameter provides a slim, unobtrusive profile for linear lighting
- 144 LEDs per meter ensures even, bright illumination along the full length
- OSRAM LED chips deliver consistent colour and long life in architectural applications
- AC85-265V input supports standard mains voltage across Europe and the Middle East

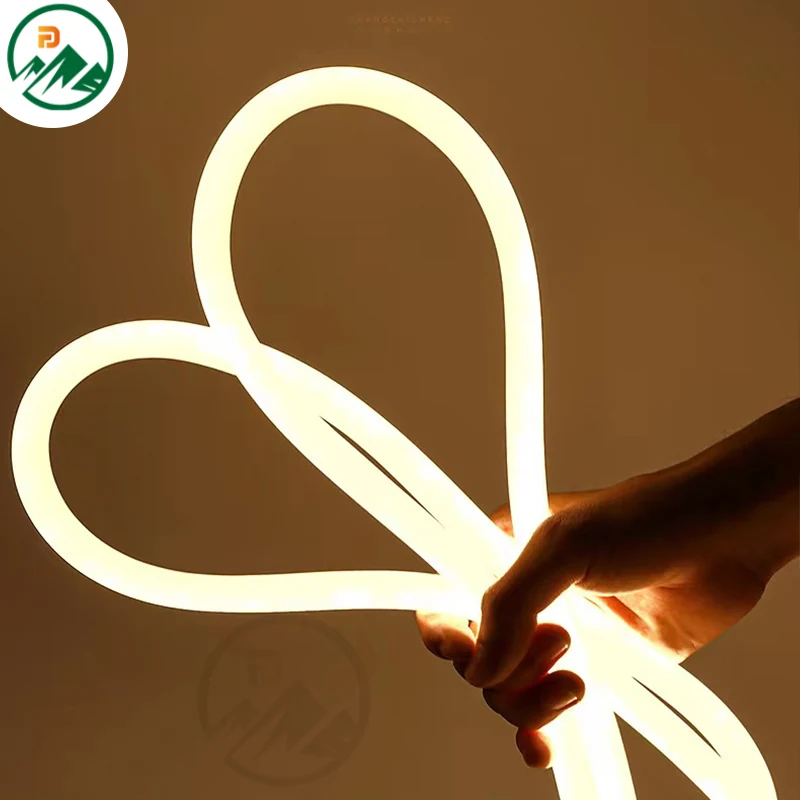

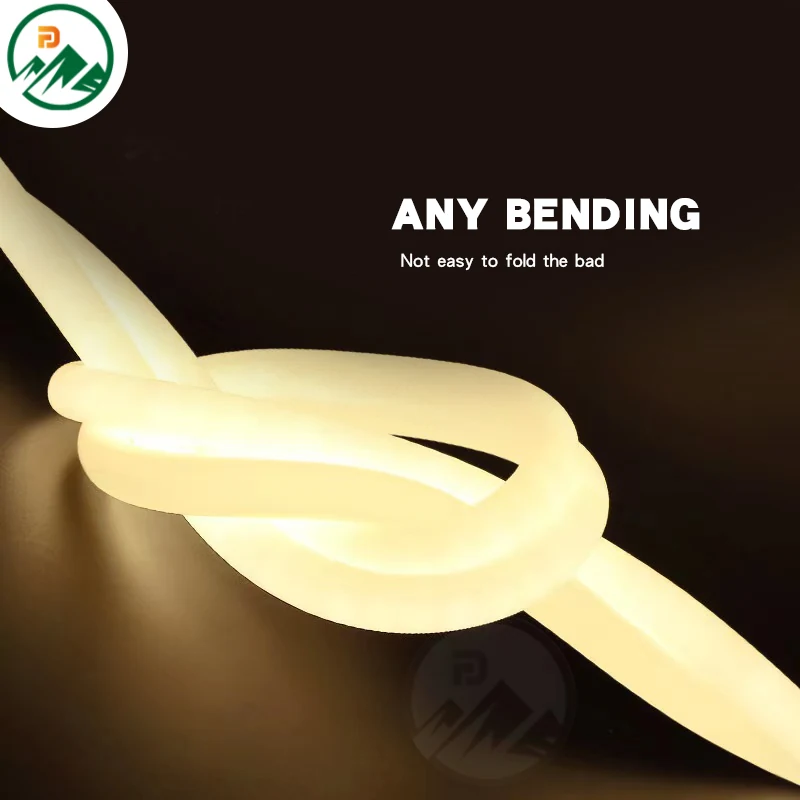

- Flexible silicon body allows bending around curves and tight corners during installation
Application Scenarios
- Linear lighting along the edge of office ceilings or suspended ceilings
- Accent lighting on building facades with curved or irregular contours
- Under-cabinet or under-shelf lighting in commercial office spaces
- Edge lighting for reception desks, counters, or display cases
- Interior linear glow in lobbies, corridors, and retail spaces
Who It Is For
- Facade and landscape lighting contractors specifying linear lighting for curved building edges
- Electrical wholesalers supplying office and commercial lighting projects
- Lighting designers integrating low-profile linear lights into interior architectural schemes
- Brand owners sourcing OEM linear LED strips under their own label
Problems It Solves
- Rigid linear lights cannot follow curved or irregular building edges without cutting and splicing
- Non-waterproof strips fail when installed in wet areas or exposed to cleaning sprays
- Low LED density causes visible dark spots or uneven light along long runs
- Inconsistent driver quality leads to flickering or early failure in commercial installations
- Lack of flexibility in shape forces extra joints and connectors in tight spaces
Technical Features

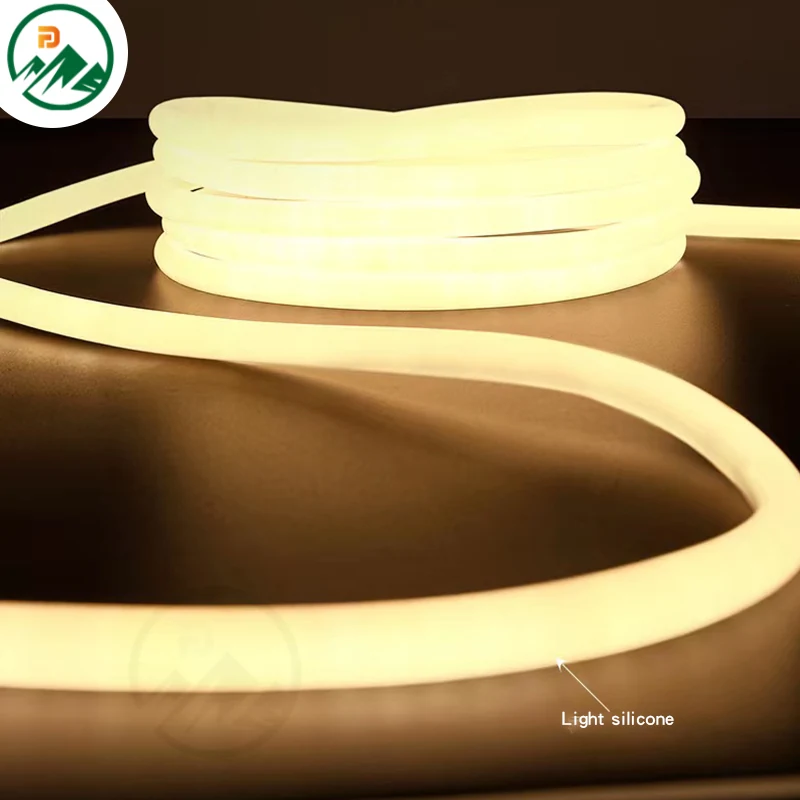

- Round-shaped silicon body with D14mm diameter for low-profile installation
- IP68 rating for full protection against dust and continuous immersion in water
- 144 LEDs per meter using OSRAM LED packages for consistent brightness
- AC85-265V input compatible with standard mains voltage in Europe and the Middle East
- FENGDIAN-supplied driver, available with or without driver for site integration
- Flexible silicon material allows bending around curves without damage
Materials
- Silicon body for flexibility and durability in tight bends
- OSRAM LED packages for consistent light output and longevity
- FENGDIAN driver for stable power regulation
- Internal wiring and encapsulation for IP68 sealing
Manufacturing Process
- Silicon tube extrusion and shaping to D14mm diameter
- LED mounting and soldering at 144 LEDs per meter
- Driver integration or preparation for site-supplied driver
- IP68 sealing and pressure testing for full immersion resistance
- Aging and light output testing before packing
Quality Control
- Incoming inspection of OSRAM LED packages and FENGDIAN drivers
- IP68 pressure test on each strip before final sealing
- Powered ageing test for 24 hours to verify stability
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site control strategy
- Available in standard 10W, 144 LEDs/M configuration
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Flat rigid LED strip
More flexible and suitable for curved surfaces, but less rigid for straight runs
Non-IP68 flexible strip
Can be used in wet or submerged areas, but non-IP68 versions fail in damp environments
Round plastic neon light
Higher durability and better heat dissipation, but more expensive than plastic alternatives
Use Guide
- Install the strip on a clean, dry surface to ensure proper adhesion and sealing
- Bend the strip gently around curves; do not exceed the minimum bending radius
- For IP68 performance, ensure all joints and connectors are sealed properly
- Use only AC85-265V power supply; avoid voltage fluctuations
- Clean the strip with a dry cloth; do not use water or cleaning agents on the surface
Round Shape LED Neon Strip Light Questions
What is the diameter of the LED neon strip?
The strip has a diameter of D14mm.
Is it waterproof?
Yes. It is rated IP68, which means it is protected against dust and continuous immersion in water.
Can the driver be omitted?
Yes. The strip can be supplied with or without the driver, depending on whether the site uses centralised drivers.
How many LEDs are there per meter?
There are 144 LEDs per meter, using OSRAM LED packages.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
