6W DMX IP66 RGB RGBW DMX LED Point Light

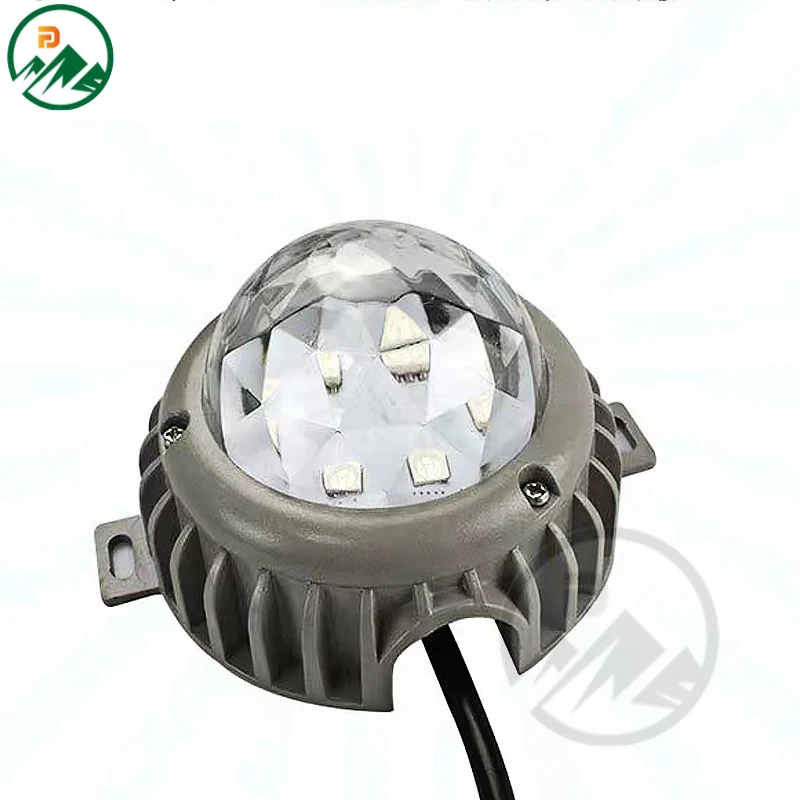

The FD-PL010R05 is a 5W recessed point light designed for architectural and landscape lighting projects requiring dynamic colour control. It operates on DC24V and supports DMX512 control, allowing precise programming of RGB and RGBW colour sequences. The fixture features a polycarbonate (PC) cover over a die-casting aluminium body, with an IP66 rating suitable for outdoor installation in exposed positions. The driver is not included, so it can be integrated into a central control system or powered by a site-supplied driver. This model is used in facade, garden, and accent lighting where colour change is required without complex wiring.
| Model | FD-PL010R05 |
|---|---|
| Power | 5W |
| Input Voltage | DC24V |
| IP Rating | IP66 |
| Dimension | D100 mm |
| Material | PC Cover + Die-casting aluminium |
| LED Chip | EPISTAR |
| Driver | Not included |
| Colour Temperature | RGB/RGBW |
| Control System | DMX |
| Warranty | 3 Years |
Key Benefits
- DMX512 control enables dynamic colour changes and programmed sequences for architectural and landscape effects
- IP66 rating allows installation in exposed outdoor positions with rain, dust, and splashing water
- PC cover with die-casting aluminium body provides impact resistance and heat dissipation
- 5W power draw reduces energy use in large installations with multiple fixtures
- Driver not included allows integration with centralised or distributed control systems
- RGB and RGBW colour modes support full colour mixing and white light output
Application Scenarios
- Accent lighting on building facades with programmable colour changes for events or seasonal themes
- Garden and landscape features such as trees, fountains, and pathways using dynamic colour effects
- Retail and hospitality entrances with animated lighting sequences to attract attention
- Architectural features like columns, railings, and steps where colour variation enhances form
- Outdoor installations in public spaces requiring low maintenance and reliable operation
Who It Is For
- Facade and landscape lighting contractors installing programmable point lights in outdoor projects
- Lighting designers specifying dynamic colour effects for architectural and urban schemes
- Electrical wholesalers supplying DMX-controlled lights for commercial and public projects
- Brand owners sourcing OEM point lights under their own label with custom logo and control options
Problems It Solves
- Fixed colour point lights require multiple SKUs for different hues, increasing inventory and cost
- Non-DMX lights cannot be programmed for dynamic effects, limiting design flexibility
- Lack of IP66 protection leads to early failure in outdoor positions exposed to rain and dust
- Inconsistent driver integration causes compatibility issues when mixing fixtures on one circuit
- High power draw in multiple fixtures increases energy cost and heat load in enclosed housings
Technical Features
- DMX512 control system for remote, programmable colour and intensity adjustment
- IP66 rating for protection against dust and water jets, suitable for outdoor and exposed positions
- Polycarbonate (PC) cover over die-casting aluminium body for impact resistance and thermal management
- EPISTAR LED chip for consistent light output and colour stability
- DC24V input voltage for compatibility with low-voltage control systems
- Driver not included, allowing use with site-supplied or centralised drivers

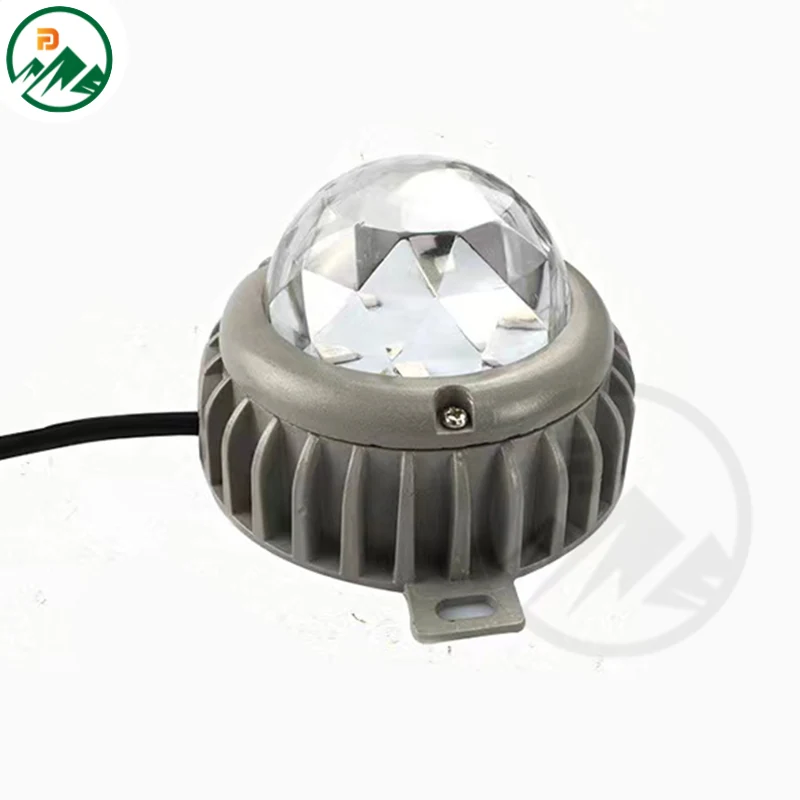

Materials
- Polycarbonate (PC) cover for impact resistance and light diffusion

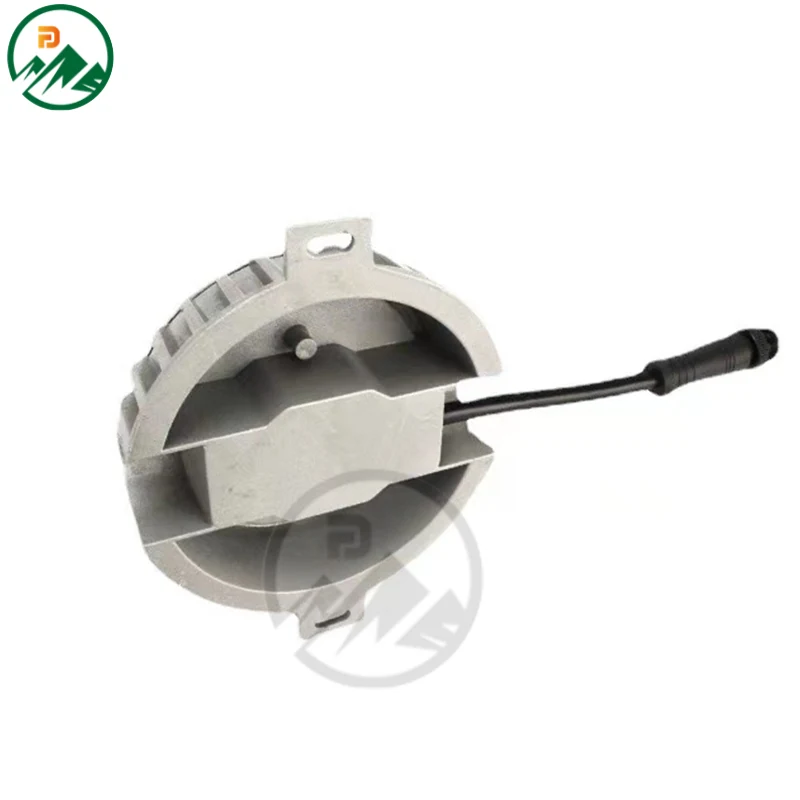

- Die-casting aluminium body for heat dissipation and structural strength
- Internal gaskets and seals for IP66 protection

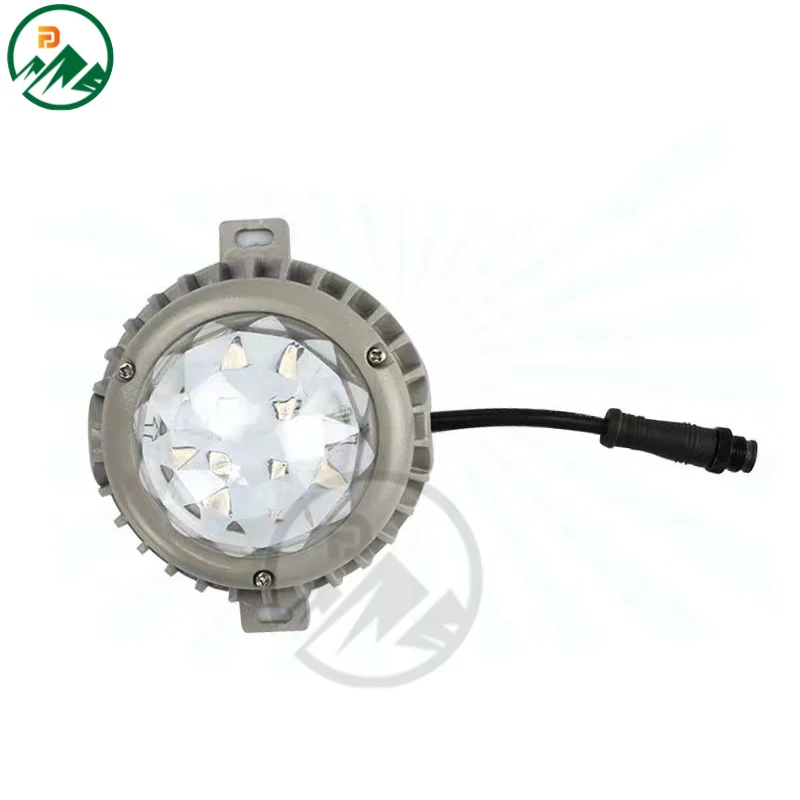

- DMX interface connector with shielded wiring for signal integrity
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Forming and polishing of PC cover with UV protection
- Assembly of EPISTAR LED modules on PCB with DMX interface
- Sealing with gaskets and O-rings to achieve IP66
- DMX signal testing and power-on verification
- Aged lighting test under controlled conditions before packing
Quality Control
- Incoming inspection of EPISTAR LED chips and DMX components
- IP66 sealing check using pressure and spray test
- DMX signal response test for all colour channels
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied or omitted based on project control strategy
- DMX address setting can be pre-configured or left for site programming
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Non-DMX point light
Higher initial cost, but enables dynamic effects without additional control hardware
AC-powered point light
Lower voltage reduces safety risk and wiring cost, but requires compatible drivers
IP65-rated point light
Higher protection level suits exposed positions where water jets are present
Use Guide
- Install the fixture in a recessed or surface-mounted position with a clear line of sight to the target area
- Connect to a DMX512 controller using shielded cable to avoid signal interference
- Set the DMX address using the built-in dip switches or via software before installation
- Use a DC24V power supply with sufficient current capacity for the total number of fixtures
- Ensure the PC cover is securely fastened and sealed to maintain IP66 performance
- Clean the cover periodically with mild detergent to maintain light output and appearance
6W DMX IP66 RGB RGBW DMX LED Point Light Questions
What is the power consumption of this point light?
The fixture consumes 5W of power at DC24V input.
Is the driver included with the fixture?
No. The driver is not included. The fixture is designed to be powered by a site-supplied or centralised driver.
Can it be controlled with a standard DMX controller?
Yes. The fixture supports DMX512 control and can be addressed and programmed using standard DMX controllers.
What does IP66 mean for outdoor use?
IP66 means the fixture is protected against dust and powerful water jets, suitable for outdoor installation in exposed positions.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
