New Design Garden Lighting LED Spike Light
The FD-SF010R05 is a 5W LED spike light designed for landscape and garden applications where low-voltage operation and adjustable beam angles are required. The fixture is built with an aluminium body and features a stainless steel support post for stability in soil. It operates on DC12V or DC24V, making it suitable for solar-powered systems or low-voltage circuits. The beam angle can be selected as 30° or 60°, and the colour temperature ranges from 2800K to 6500K, with an RGB option for dynamic lighting. The IP67 rating ensures protection against dust and temporary immersion, allowing installation in exposed garden areas without damage from rain or moisture.

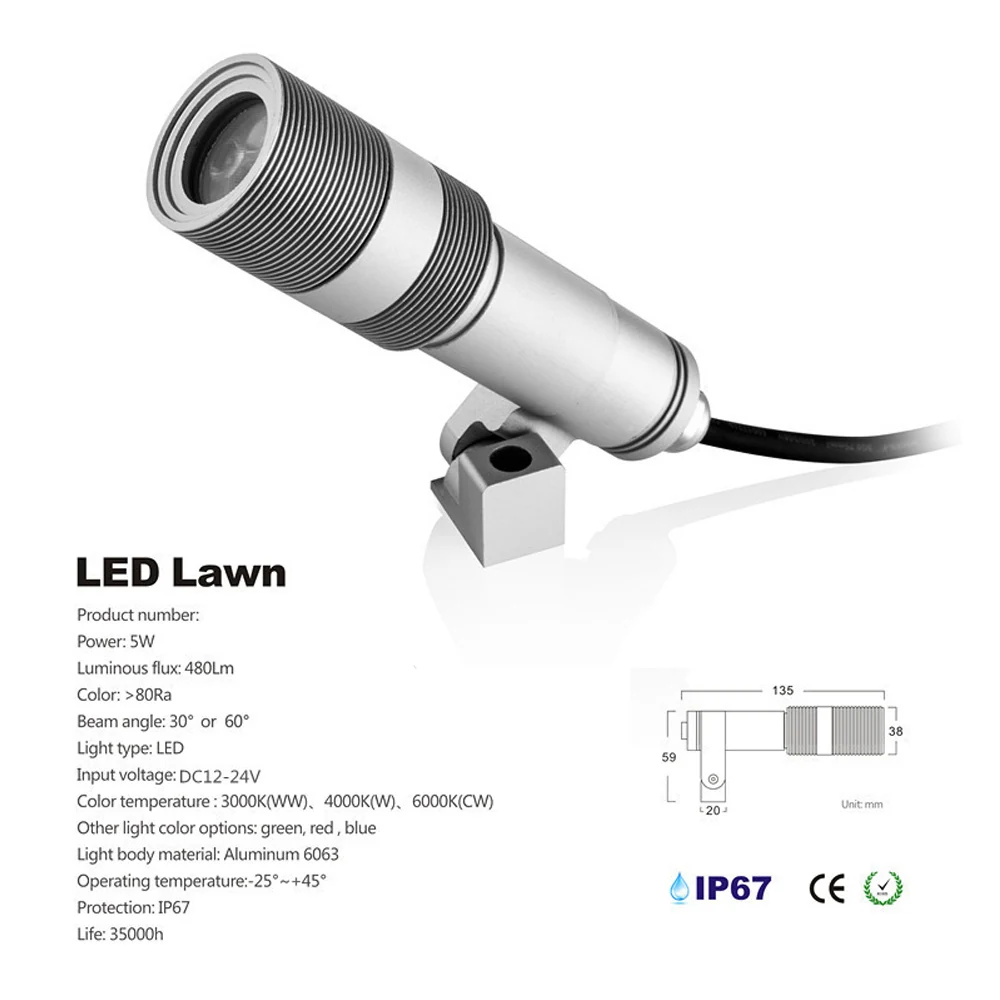

| Model | FD-SF010R05 |
|---|---|
| Power | 5W |
| Input Voltage | DC12/24V |
| IP Rating | IP67 |
| Dimension | D38 x L135 x H59 mm Support H20 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Colour Temperature | 2800-6500K/RGB |
| Beam Angle | 30/60° |
| Warranty | 3 Years |
Key Benefits
- DC12V or DC24V input supports integration with solar and low-voltage landscape circuits
- Beam angle selectable at 30° or 60° to suit close-up accenting or wider area lighting
- IP67 rating protects against dust and water immersion, suitable for outdoor garden use
- CREE LED chip ensures consistent output and long life in variable weather
- Aluminium body provides effective heat dissipation and structural rigidity
- RGB option allows for colour-changing effects without requiring separate fixtures

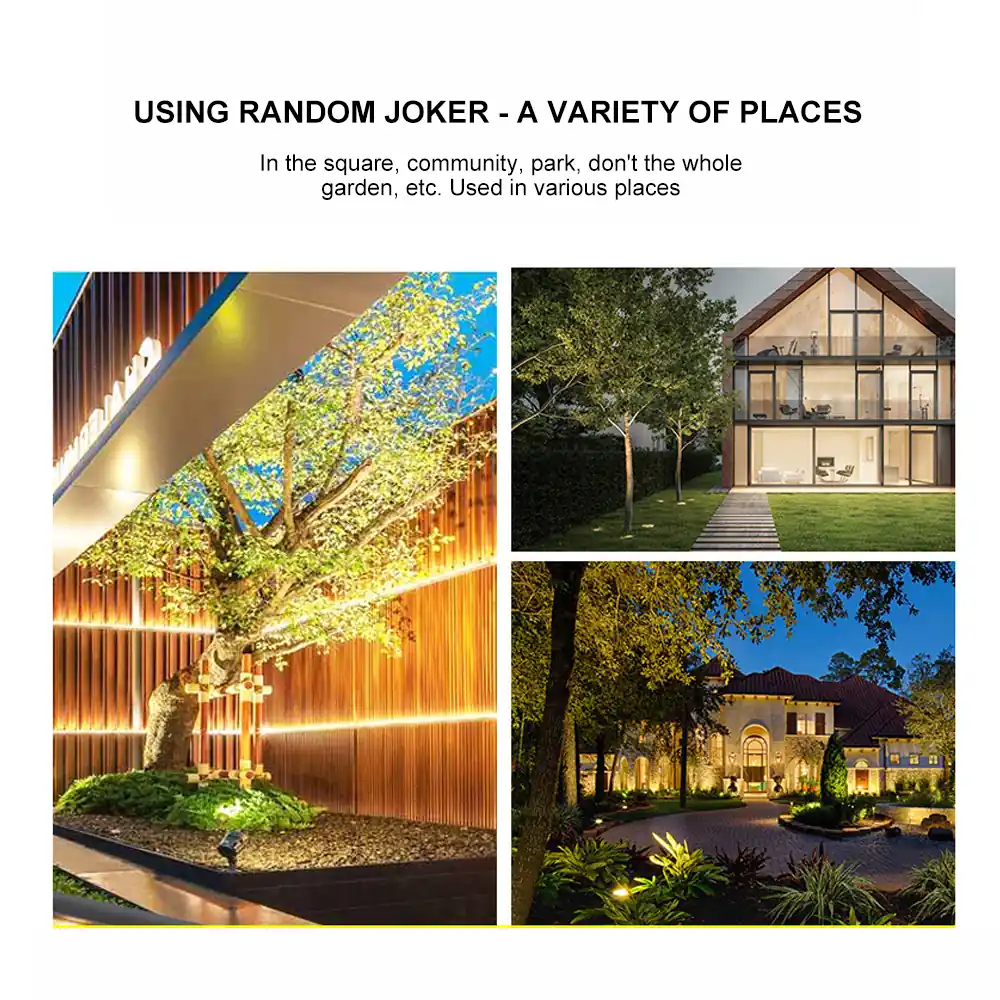

Application Scenarios
- Accent lighting for garden pathways and stepping stones in residential and commercial landscapes
- Highlighting shrubs, trees, and ornamental plants in garden beds and borders
- Illuminating garden features such as fountains, statues, and water features
- Low-voltage lighting in solar-powered garden schemes with DC12V or DC24V systems
- Dynamic lighting effects using RGB mode for seasonal or event-based garden displays
Who It Is For
- Landscape lighting contractors installing garden spike lights in residential and public parks
- Electrical wholesalers supplying low-voltage garden lighting to regional distributors
- Brand owners sourcing OEM spike lights under their own label for garden lighting lines
- Designers specifying flexible beam angles and colour options for outdoor lighting schemes
Problems It Solves
- Fixed beam angle spike lights require multiple SKUs for different lighting needs
- Non-IP67 rated fixtures fail quickly in wet or dusty garden environments
- Low-voltage systems cannot use mains-fed fixtures without a transformer
- Inconsistent colour temperature across fixtures leads to mismatched lighting effects
- Lack of RGB capability forces the use of multiple fixture types for dynamic lighting
Technical Features
- 5W power with CREE LED chip for consistent output and long life
- Selectable beam angle of 30° or 60° for flexible lighting coverage
- DC12V or DC24V input for compatibility with solar and low-voltage systems

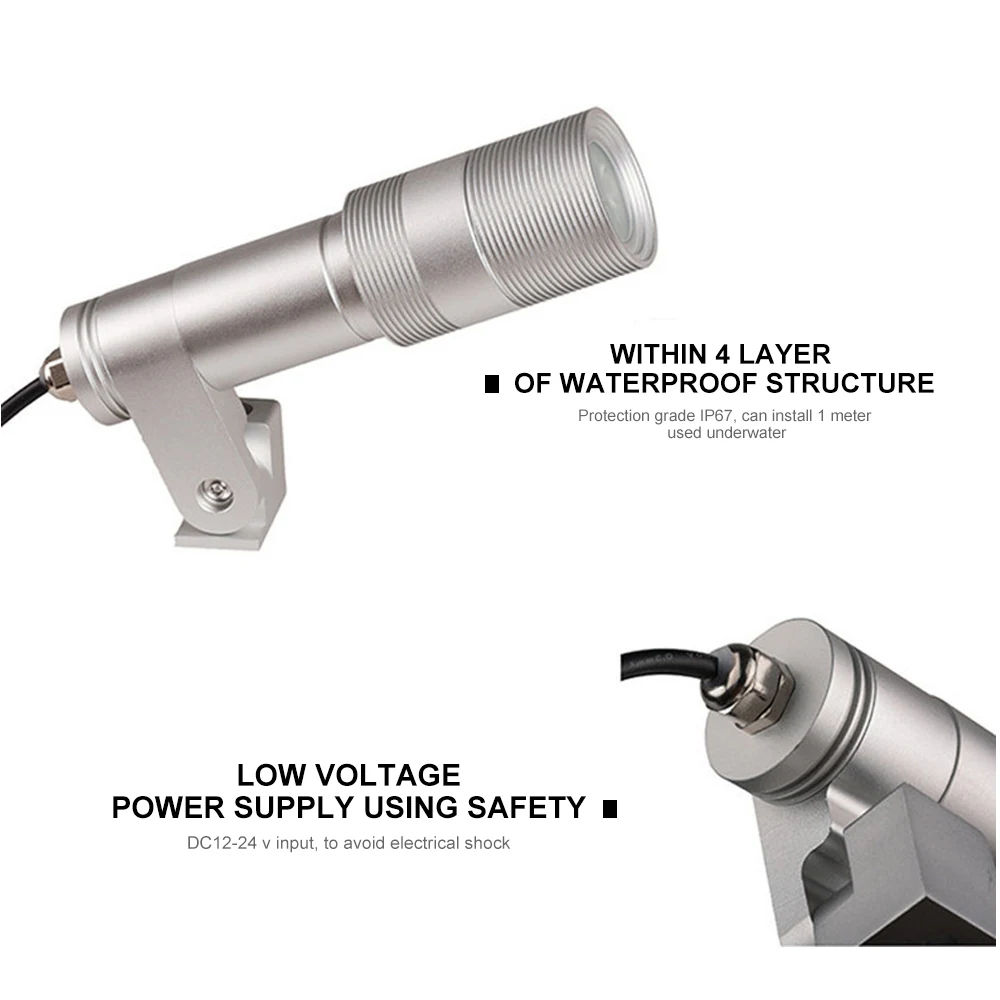

- IP67 rating for protection against dust and temporary immersion
- Aluminium body for heat dissipation and structural strength
- RGB option available for colour-changing applications
- Stainless steel support post with 20mm height for ground stability

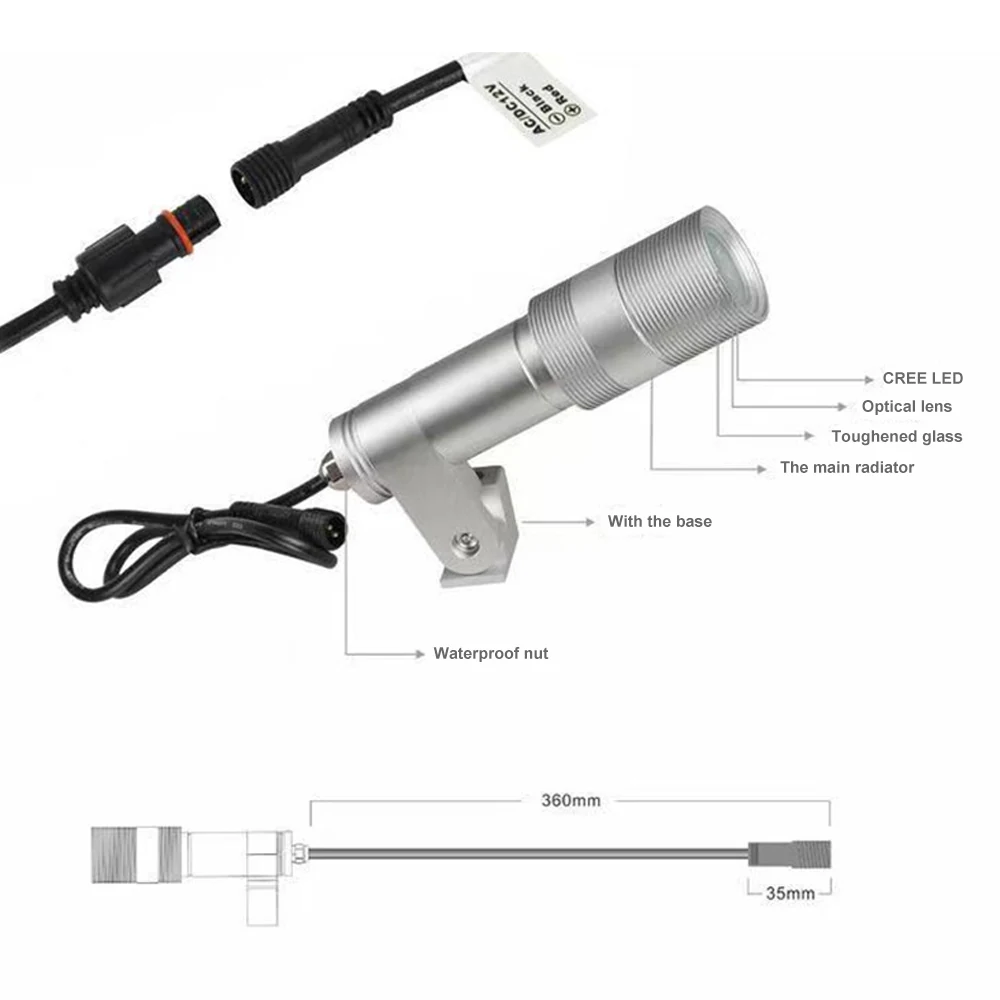

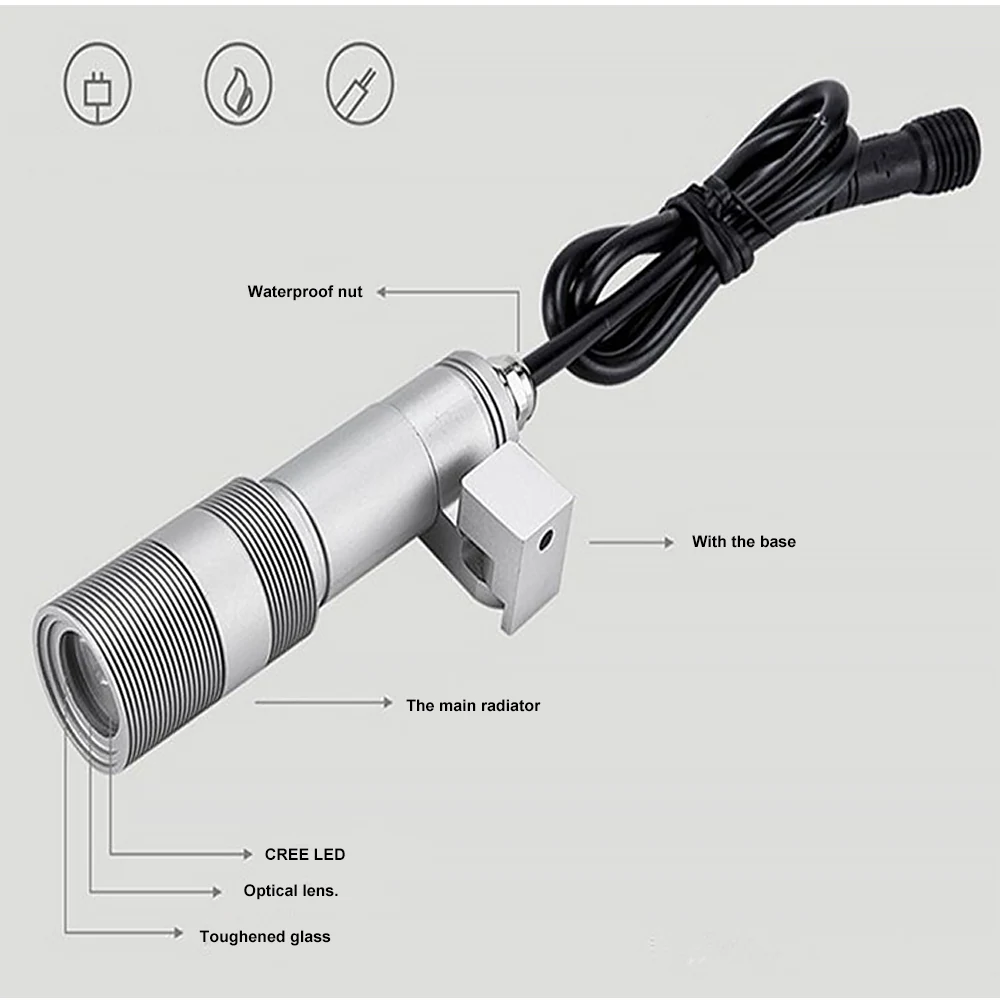

Materials
- Aluminium body for heat dissipation and structural rigidity
- Stainless steel support post for ground stability and corrosion resistance
- Tempered glass lens over the LED for protection and optical clarity
Manufacturing Process
- Aluminium body die-casting and surface finishing
- Stainless steel support post forming and attachment
- LED board assembly with CREE packages
- Sealing and gasket fitting to achieve IP67
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of CREE LED packages and drivers
- IP67 sealing check before fixture closure
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Available in DC12V or DC24V input versions
- Beam angle option of 30° or 60° selected at order stage
- RGB version available for dynamic lighting applications
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Fixed beam angle spike light
Requires multiple SKUs for different coverage needs, but offers lower cost per unit
Mains-fed spike light
Needs a transformer or driver, but avoids low-voltage wiring complexity
Plastic-bodied spike light
Less durable in high-traffic or harsh weather, but lighter and cheaper

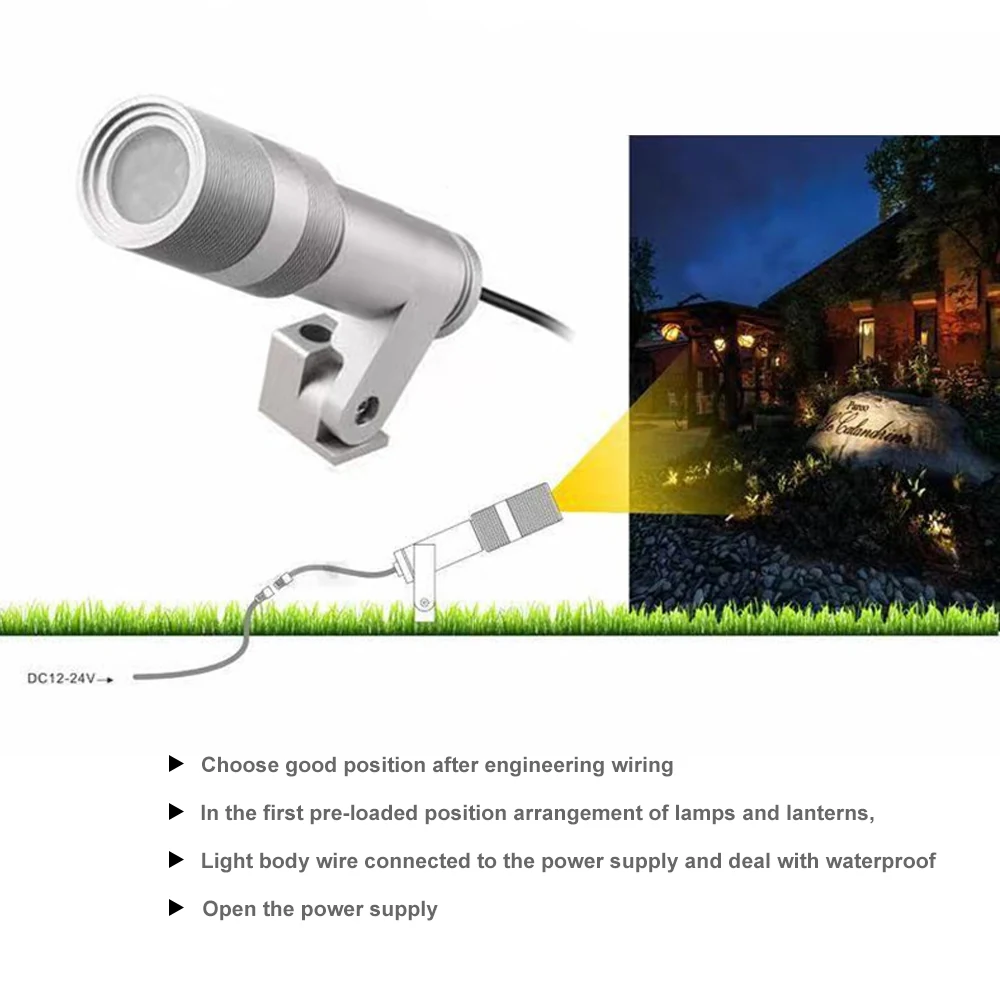

Use Guide
- Drive the support post into soil to a depth that ensures stability and alignment with the desired light direction
- Select the beam angle (30° or 60°) before installation based on the target area
- Ensure the fixture is not buried in soil or covered by mulch to maintain airflow and prevent overheating
- For RGB models, connect to a compatible controller that supports RGB control signals
- Clean the lens periodically to maintain light output, especially in dusty or high-traffic garden areas
New Design Garden Lighting LED Spike Light Questions
What is the input voltage for this spike light?
The fixture operates on DC12V or DC24V, suitable for solar and low-voltage landscape systems.
Can I choose between 30° and 60° beam angles?
Yes. The beam angle is selectable as 30° or 60° depending on the lighting requirement.
Is the driver included?
The driver is not included. The fixture is designed for use with a separate DC12V or DC24V power supply.
What does IP67 mean for outdoor use?
IP67 means the fixture is dust-tight and can withstand temporary immersion in water, suitable for garden use in rain or wet soil.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
