Hot Sale B2C LED Swimming Light for Pool Lighting

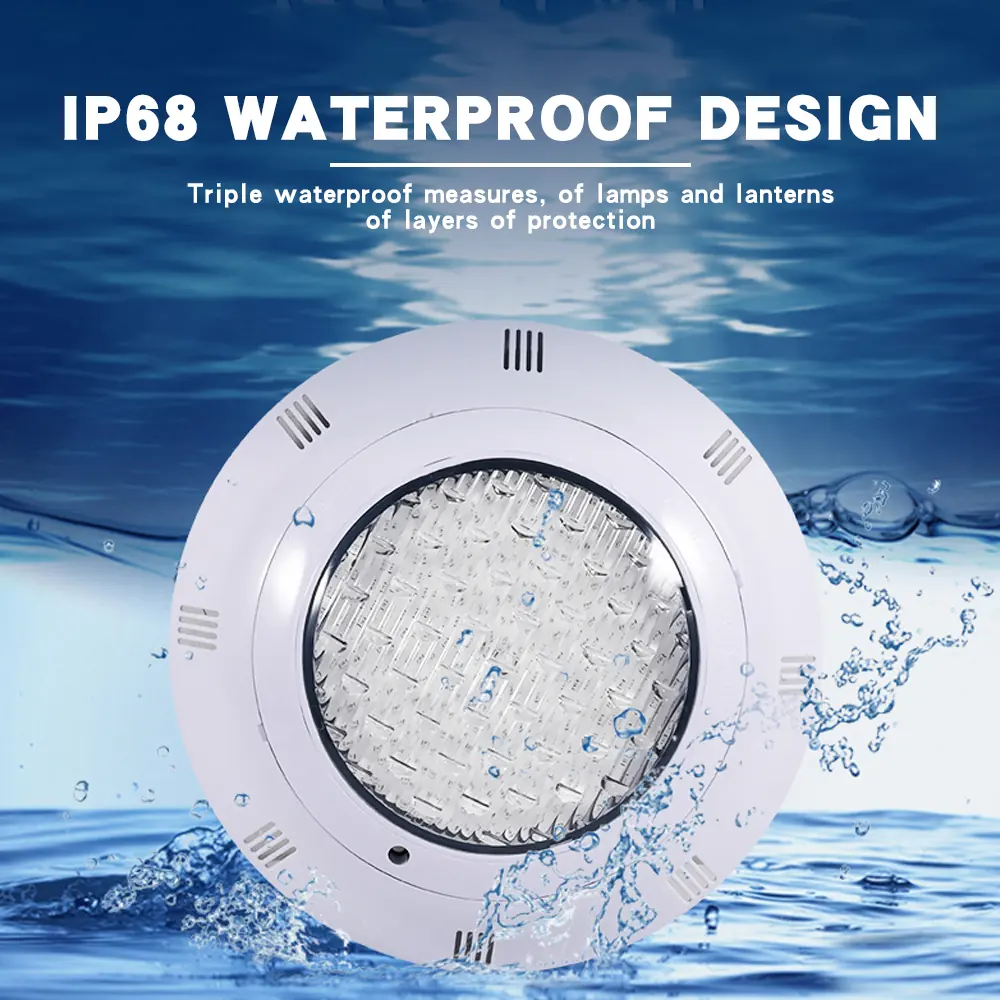

The FD-UM010R12 is a 12W LED underwater light designed for residential and commercial pool installations. It is built for permanent submersion in water and operates on AC/DC12V, making it compatible with low-voltage pool lighting systems. The fixture uses Epistar SMD 2835 LED chips and features an IP68 rating for full submersion protection. The housing combines ABS and PC materials for durability and impact resistance in wet environments. It supports a CCT range of 2800-6500K or RGB colour options, allowing for both warm white and dynamic lighting effects in pools.
| Model | FD-UM010R12 |
|---|---|
| Power | 12W |
| Input Voltage | AC/DC12V |
| IP Rating | IP68 |
| Material | ABS+PC |
| LED Chip | Epistar SMD 2835 |
| Colour Temperature | 2800-6500K/RGB |
| Cable Length | 2*1/1.5㎡ |
| Warranty | 2 Years |
Key Benefits
- IP68 rating ensures full protection against water ingress during permanent submersion
- 12W power consumption offers energy efficiency for long-term pool lighting operation
- AC/DC12V input matches standard low-voltage pool lighting systems
- Epistar SMD 2835 LED chip provides consistent light output and long life

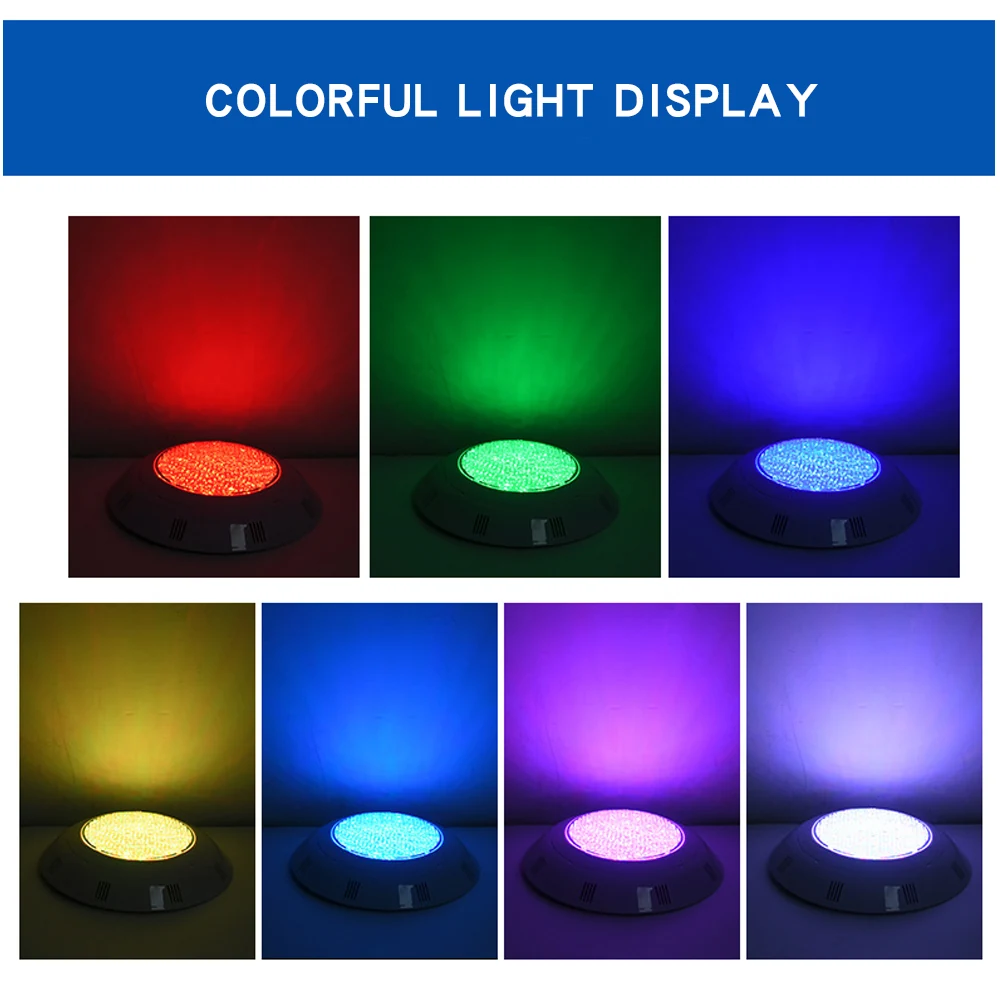

- CCT range of 2800-6500K or RGB allows for custom lighting effects in residential and commercial pools
- ABS+PC housing resists impact and degradation in wet, chlorinated environments
Application Scenarios

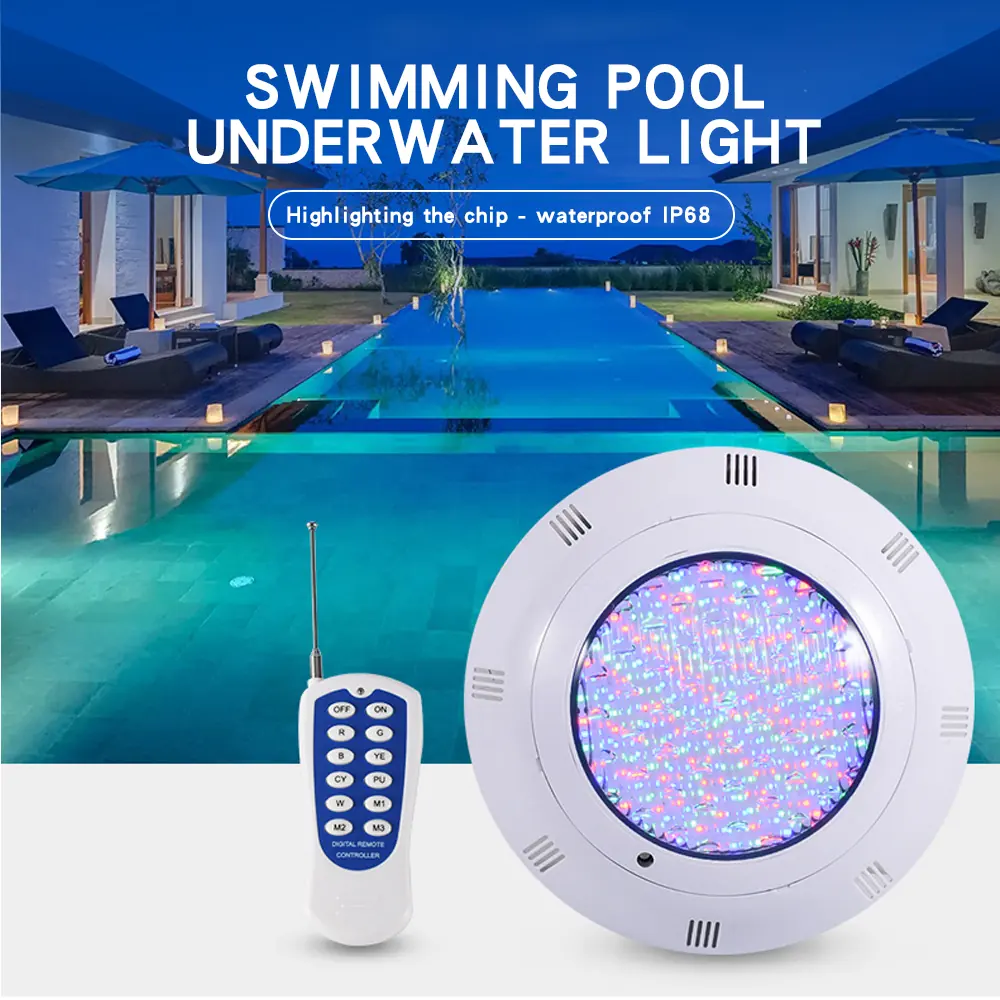

- Residential pool lighting for evening use and ambiance
- Commercial pool installations in hotels and resorts with dynamic lighting needs
- Landscape lighting schemes where water features are integrated into garden design
- Swimming pool edges and steps requiring low-profile, flush-mounted lighting
Who It Is For
- Lighting project contractors installing underwater lights in residential and commercial pools
- Landscape lighting designers specifying pool lighting with colour flexibility
- Electrical wholesalers supplying B2C pool lighting products in Europe and the Middle East
- Brand owners sourcing OEM underwater lights under their own label
Problems It Solves
- Standard lights without IP68 rating fail when submerged, leading to early failure and safety risks
- High-power lights increase energy costs and heat buildup in enclosed pool fixtures
- Fixed colour temperature lights limit design flexibility in pool and landscape schemes
- Poor material choice leads to cracking or discolouration in chlorinated or saltwater pools
- Lack of low-voltage compatibility forces rewiring or additional transformers
Technical Features
- IP68 rating for permanent submersion in water
- AC/DC12V input voltage for compatibility with standard low-voltage pool systems
- Epistar SMD 2835 LED chip for reliable and consistent light output
- CCT range of 2800-6500K or RGB for colour flexibility
- ABS+PC housing for impact and chemical resistance
- 2-meter cable length with 2*1/1.5㎡ gauge for safe power delivery
Materials

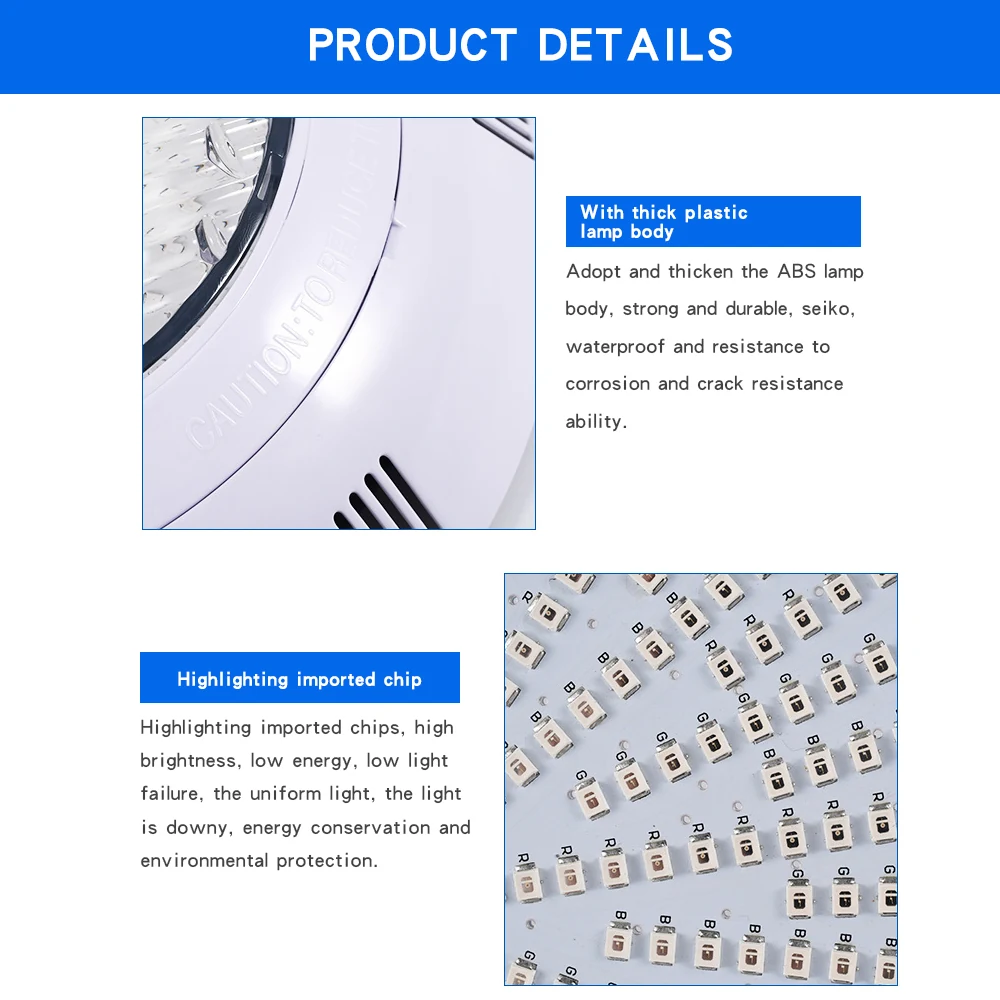

- ABS housing for structural strength and resistance to impact

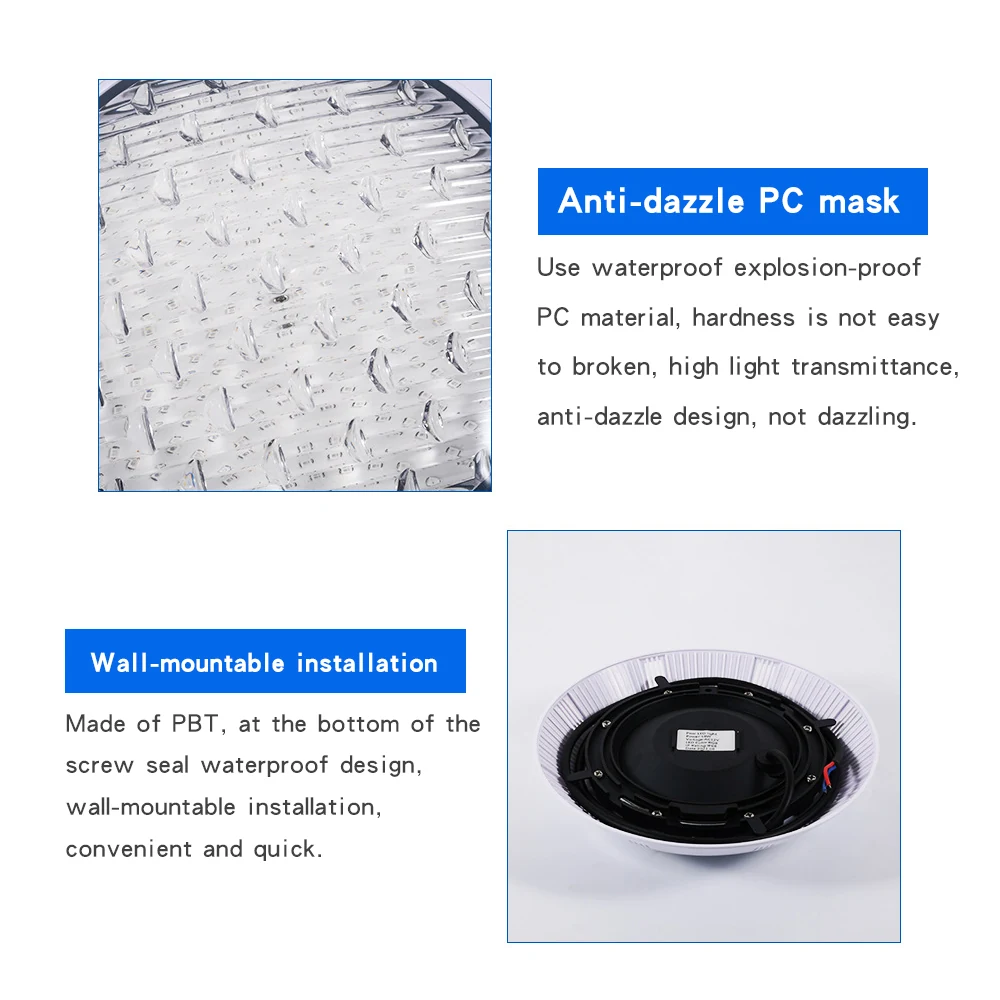

- PC lens for optical clarity and resistance to UV and water degradation
- Internal sealing gasket to maintain IP68 integrity under pressure
Manufacturing Process
- Moulding of ABS and PC components
- Assembly of Epistar SMD 2835 LED modules
- Sealing of joints and cable entry points with waterproof gaskets
- IP68 pressure test before final assembly
- Aged lighting test under water for 24 hours before packing
Quality Control
- Incoming inspection of Epistar LED chips and cable materials
- IP68 pressure test on 100% of units before packing
- 24-hour powered ageing test under water
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Available in CCT 2800-6500K or RGB versions
- Cable length can be adjusted to meet site-specific wiring needs
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
IP65 underwater light
IP68 offers full submersion protection, suitable for permanent pool installation, while IP65 is only splash-proof
Higher power LED light (e.g. 24W)
12W model reduces energy use and heat generation, ideal for low-voltage systems with limited power capacity
Plastic-only housing
ABS+PC construction resists cracking and discolouration in chlorinated water better than standard plastic
Use Guide
- Install the light in a waterproof housing or recessed niche designed for submersion
- Ensure the cable entry point is sealed properly to maintain IP68 rating
- Connect to a 12V AC or DC power supply compatible with low-voltage pool lighting systems
- For RGB models, use a compatible controller to manage colour changes
- Avoid bending the cable sharply during installation to prevent internal wire damage
Hot Sale B2C LED Swimming Light for Pool Lighting Questions
What is the IP rating of this light?
The fixture has an IP68 rating, which means it is protected against complete immersion in water.
Can it be used in saltwater pools?
Yes. The ABS+PC materials and IP68 sealing are suitable for use in saltwater pools.
Is the driver included?
The driver is not included. The light operates on AC/DC12V and requires a separate low-voltage power supply.
What is the cable length?
The cable is 2 meters long with a 2*1/1.5㎡ gauge, suitable for standard pool wiring runs.
What is the warranty?
This model carries a 2-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
