High Quality LED Down Light
The FD-ND010R13 is a 3W recessed LED downlight designed for commercial office and interior architectural applications. It features an aluminium body with a compact D45 x H30 mm profile, suitable for ceiling installations where space is limited. The fixture operates on AC85-265V, allowing compatibility with standard building wiring. It uses OSRAM LED chips and a DARK ENERGY driver, delivering a colour temperature range of 2800K to 6500K for flexible lighting design. The IP20 rating confirms it is for indoor use only, with no protection against dust or water ingress.
| Model | FD-ND010R13 |
|---|---|
| Power | 3W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D45 x H30 mm, Hole 50 mm |
| Material | Aluminium |
| LED Chip | OSRAM |
| Driver | DARK ENERGY |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- Compact size D45 x H30 mm fits in tight ceiling spaces in office and corridor installations
- AC85-265V input works with standard building voltage without needing a transformer
- OSRAM LED chips ensure consistent light output and long life in commercial settings
- Adjustable CCT from 2800K to 6500K allows matching of lighting to office or retail environments
- DARK ENERGY driver provides stable performance and reduces flicker in office lighting
- IP20 rating confirms suitability for dry indoor environments with no moisture exposure

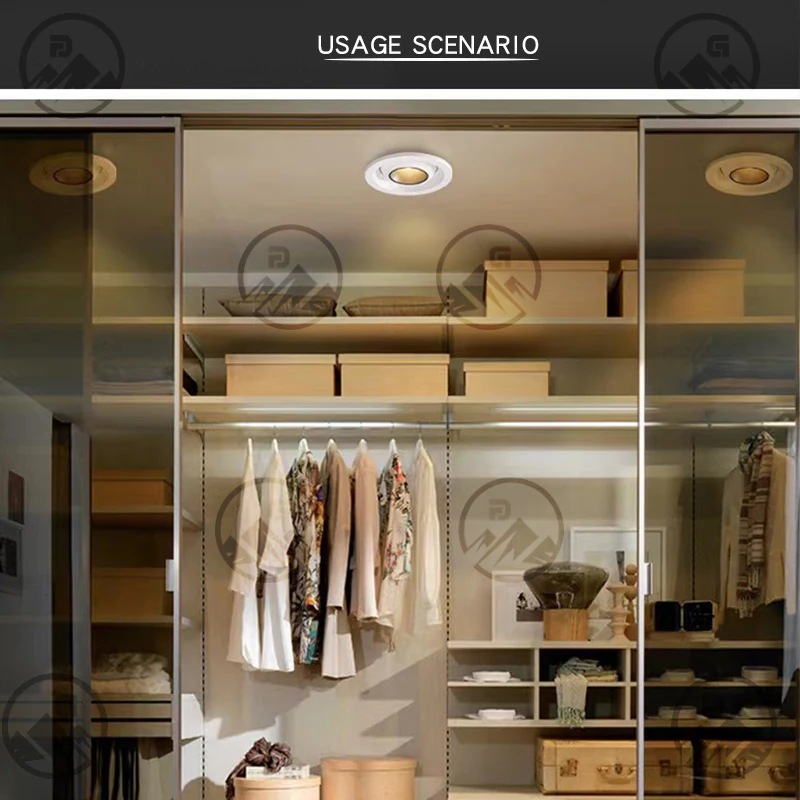

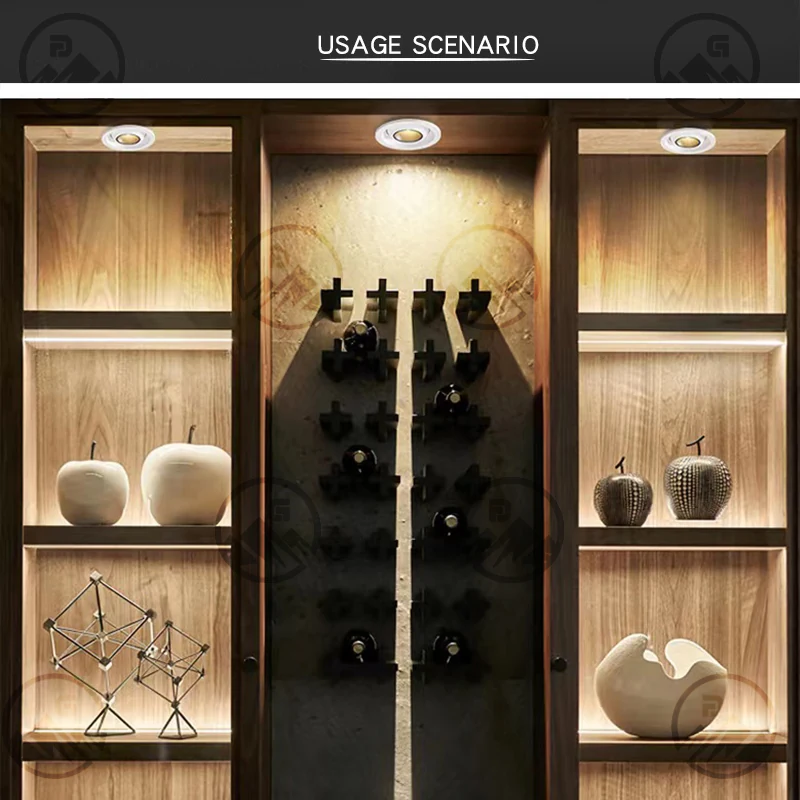

Application Scenarios
- Recessed ceiling lighting in office cubicles and meeting rooms with limited ceiling cavity depth
- Corridor and stairwell lighting in commercial buildings where low profile fixtures are needed
- Retail space lighting where uniform light distribution and low glare are required
- Interior lighting in lobbies and reception areas where minimal fixture visibility is desired
Who It Is For
- Commercial office project contractors installing recessed lighting in new builds or retrofits
- Lighting designers specifying low-profile downlights for ceiling-restricted spaces
- Electrical wholesalers supplying office and retail lighting in Europe and the Middle East
- Brand owners sourcing OEM downlights under their own label for commercial distribution
Problems It Solves
- Fixed-height ceiling fixtures require deeper cavities, which are not available in many office ceilings
- Non-adjustable CCT lights force a single colour temperature choice, limiting design flexibility
- Low-efficiency drivers cause flicker and reduce LED lifespan in continuous office use
- Inadequate heat dissipation in small fixtures leads to early lumen depreciation
- Lack of compatibility with standard AC85-265V wiring forces extra voltage conversion
Technical Features

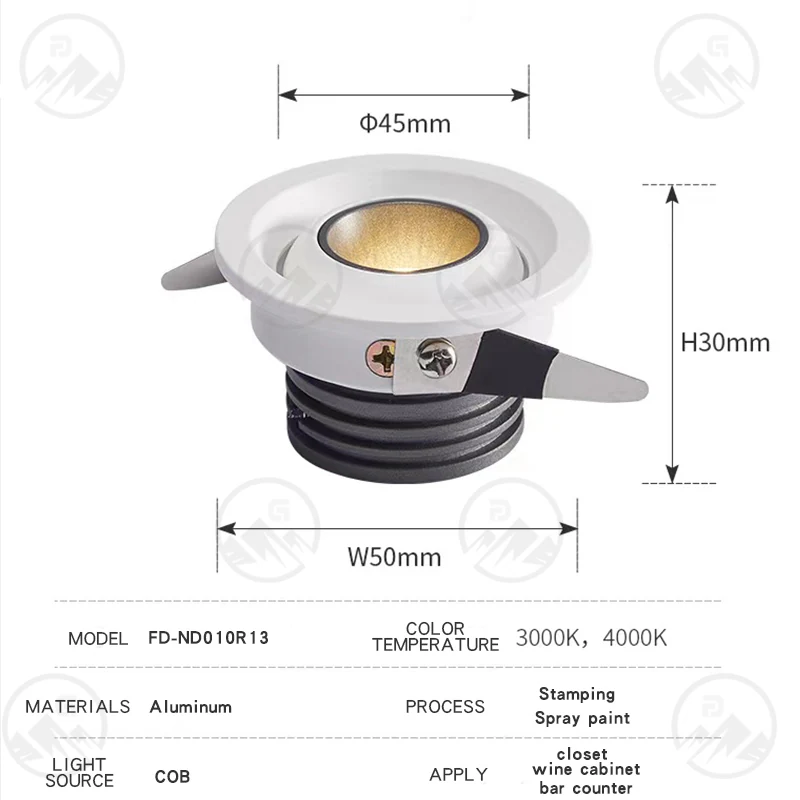

- Recessed design with D45 x H30 mm body and 50 mm cut-out hole for ceiling installation
- Aluminium body for heat dissipation in confined ceiling spaces
- OSRAM LED chip for stable output and consistent colour performance
- DARK ENERGY driver for reliable operation across wide input voltage range
- Adjustable CCT from 2800K to 6500K to suit different office and retail environments
- IP20 rating confirms indoor use only, no protection against dust or moisture
Materials
- Aluminium body for heat transfer and structural rigidity in ceiling cavities
- OSRAM LED packages for consistent light output and colour stability
- DARK ENERGY driver for stable current regulation and long-term reliability
Manufacturing Process
- Aluminium body machining and surface finishing
- LED board assembly with OSRAM chips and DARK ENERGY driver
- Fixture sealing and gasket fitting for IP20 compliance
- Powered ageing test before packing
- Final inspection and packing for shipment
Quality Control
- Incoming inspection of OSRAM LED chips and DARK ENERGY drivers
- Visual and dimensional check of the aluminium body and cut-out size
- IP20 sealing verification before final closure
- Powered ageing test under full load for 24 hours
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site-specific control strategies
- AC85-265V input standard, no other voltage options provided
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Surface-mounted downlight
Requires more ceiling space and is more visible, but easier to install without cutting into the ceiling
Higher power downlight (e.g. 10W)
Offers more light but needs a larger cut-out and deeper ceiling cavity, not suitable for tight spaces
Driverless downlight
Requires a separate driver in the ceiling, but allows centralised control; this model includes the driver for plug-and-play use
Use Guide
- Cut a 50 mm hole in the ceiling to fit the fixture body
- Ensure the ceiling cavity depth is at least 30 mm to accommodate the fixture height
- Connect the fixture to AC85-265V wiring without polarity concerns
- Select the desired CCT during installation using the driver’s settings if adjustable
- Avoid installing in areas with moisture, dust, or high vibration such as kitchens or industrial zones
High Quality LED Down Light Questions
What is the cut-out size for this downlight?
The fixture requires a 50 mm hole in the ceiling for installation.
Can it be used in a damp or wet location?
No. The IP20 rating means it is for dry indoor use only and should not be installed in bathrooms, kitchens, or outdoor areas.
Is the driver included?
Yes. The fixture comes with a DARK ENERGY driver fitted, but it can be supplied without if centralised drivers are used.
What is the colour temperature range?
The CCT is adjustable from 2800K to 6500K, allowing selection of warm, neutral, or cool white light.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
