High quality classic LED Neon strip light

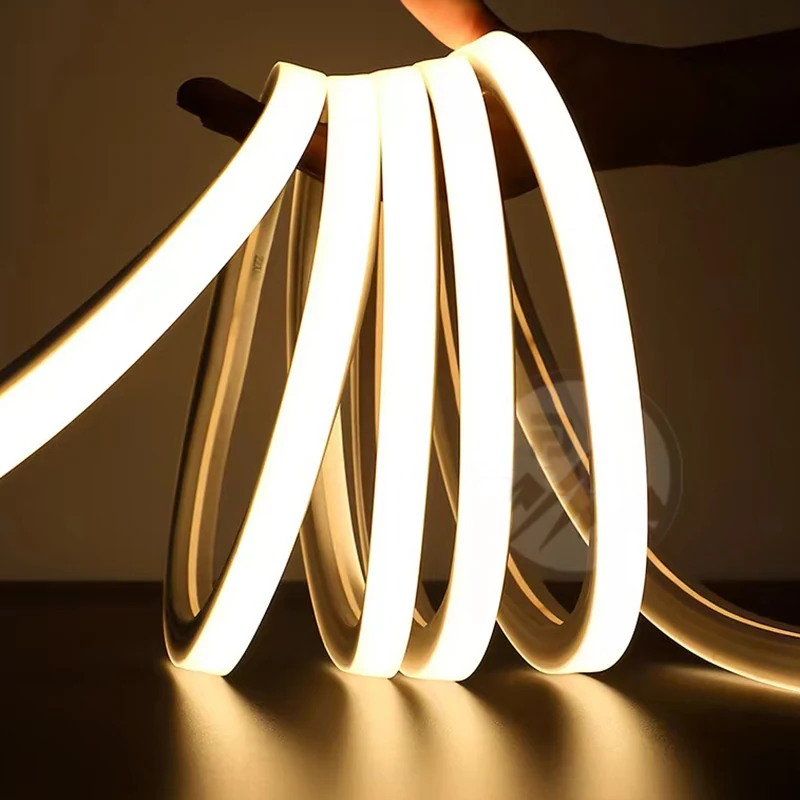

The FD-NO010L10 is a 10W LED neon strip light designed for architectural and commercial linear lighting applications. It features a flexible silicon body with a 16mm x 16mm profile, rated IP68 for full immersion protection. The strip uses 144 OSRAM LED chips per metre and operates on AC85-265V, making it suitable for both indoor and outdoor installations where moisture resistance is required. It is supplied with a FENGDIAN driver or can be ordered without for site integration.
| Model | FD-NO010L10 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP68 |
| Dimension | W16 x H16 mm |
| Material | Silicon |
| LED Chip | OSRAM |
| LED Quantity | 144 LEDS/M |
| Driver | FENGDIAN |
| Warranty | 3 Years |
Key Benefits

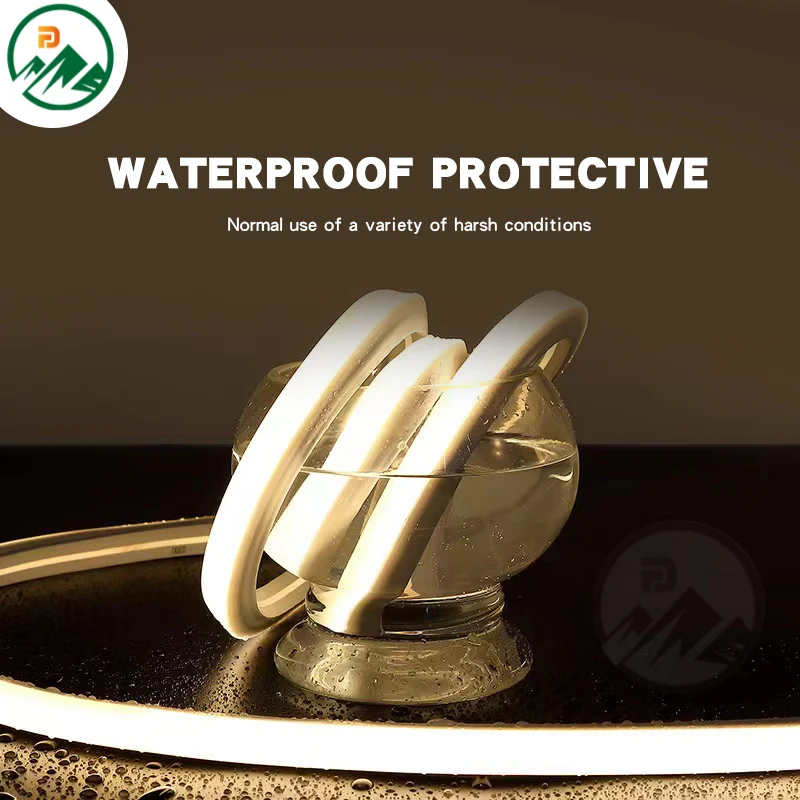

- IP68 rating allows installation in wet or submerged environments without risk of damage

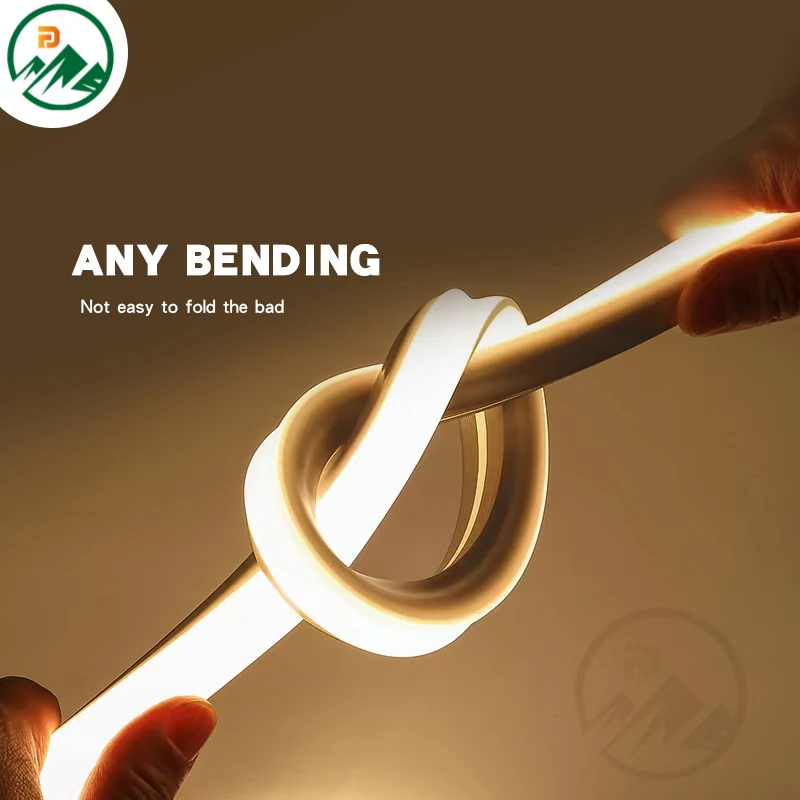

- Flexible silicon body enables routing around curves and tight corners in architectural details
- 144 OSRAM LED chips per metre deliver consistent light output across the full length
- AC85-265V input supports standard mains voltage across Europe and the Middle East
- 10W power draw provides efficient lighting for long runs in office and facade projects
- Available with or without driver to match existing control systems or central power distribution
Application Scenarios
- Linear lighting along the edge of a commercial office ceiling for ambient illumination

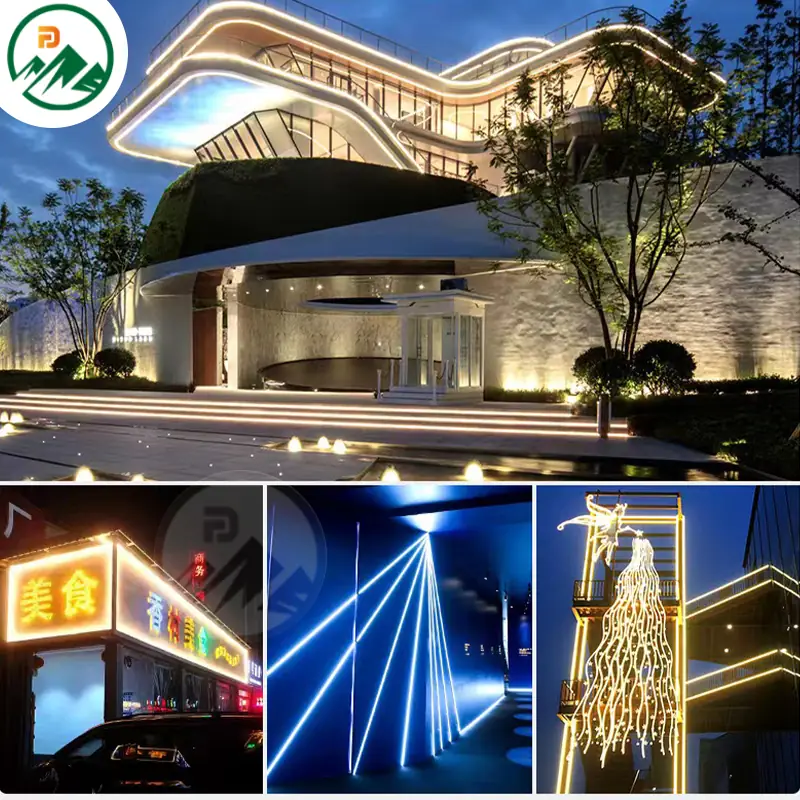

- Edge lighting on building facades to highlight architectural contours at night
- Under-cabinet or under-shelf lighting in retail or office spaces with high humidity
- Waterproof linear strips in outdoor landscape features such as fountains or pools
- Interior accent lighting in wet areas like bathrooms, kitchens or showrooms
Who It Is For
- Lighting project contractors installing linear LED strips in commercial and architectural projects
- Facade and landscape lighting designers specifying waterproof linear sources for external use
- Electrical wholesalers supplying LED strips for office and commercial fit-outs
- Brand owners sourcing OEM linear neon strips under their own label with custom logo
Problems It Solves
- Standard LED strips fail in wet environments due to inadequate sealing, leading to short circuits
- Rigid strips cannot follow curved architectural edges, requiring multiple joints and visible breaks
- Low LED density results in uneven light output across long runs, creating dark spots
- Incompatible driver inputs require separate power supplies when integrating with existing systems
- Lack of IP68 rating limits use in outdoor or high-moisture applications where durability is critical
Technical Features
- Flexible silicon body with 16mm x 16mm dimensions for compact, discreet installation
- IP68 sealing for full protection against dust and continuous immersion in water
- 144 OSRAM LED chips per metre for high-density, uniform light output
- AC85-265V input voltage range compatible with standard mains supply in Europe and the Middle East
- FENGDIAN driver included or available without, depending on site power strategy
- 10W power consumption per metre for energy-efficient long-run installations
Materials
- Silicon body for flexibility and full waterproofing
- OSRAM LED chips for consistent light output and long life
- FENGDIAN driver for stable power regulation
- Internal wiring and encapsulation materials designed for IP68 sealing
Manufacturing Process
- Silicon extrusion and cutting to specified length
- LED chip placement and soldering on flexible PCB
- Encapsulation in silicon with IP68 sealing
- Driver integration and connection testing
- Final IP68 pressure test and powered ageing before packing
Quality Control
- Incoming inspection of OSRAM LED chips and FENGDIAN drivers
- IP68 pressure test on each strip before final packaging
- Powered ageing test for 24 hours to detect early failures
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site power configuration
- Available in standard 10W per metre, with length customisation on order
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard LED strip with IP65 rating
IP68 allows use in fully submerged or high-pressure wash environments where IP65 fails
Rigid linear LED strip
Flexible silicon body follows curves and contours without joints, reducing installation complexity
Low-density LED strip (under 100 LEDs/m)
144 LEDs/m ensures uniform light output without visible dark spots over long runs
Use Guide
- Install the strip in dry conditions before sealing the final enclosure or housing
- Avoid sharp bends or kinks in the silicon body to prevent internal damage
- Ensure the driver is compatible with the total length and power draw of the run
- For outdoor or submerged use, verify all joints and connections are sealed against water ingress
- Clean the surface with a dry cloth to maintain light output and prevent dirt buildup
High quality classic LED Neon strip light Questions
What is the IP rating of this strip light?
It is rated IP68, which means it is protected against dust and continuous immersion in water.
Can it be used underwater?
Yes. The IP68 rating allows it to be used in submerged applications such as fountains or pools.
Is the driver included?
Yes, the FENGDIAN driver is included. It can also be ordered without the driver for integration with central power systems.
How many LEDs are there per metre?
There are 144 OSRAM LED chips per metre, ensuring high-density, uniform light output.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranties vary between 2 to 5 years depending on the product.
Can I order a sample before placing a large order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
