Commercial LED Down Light Square and Round Shape

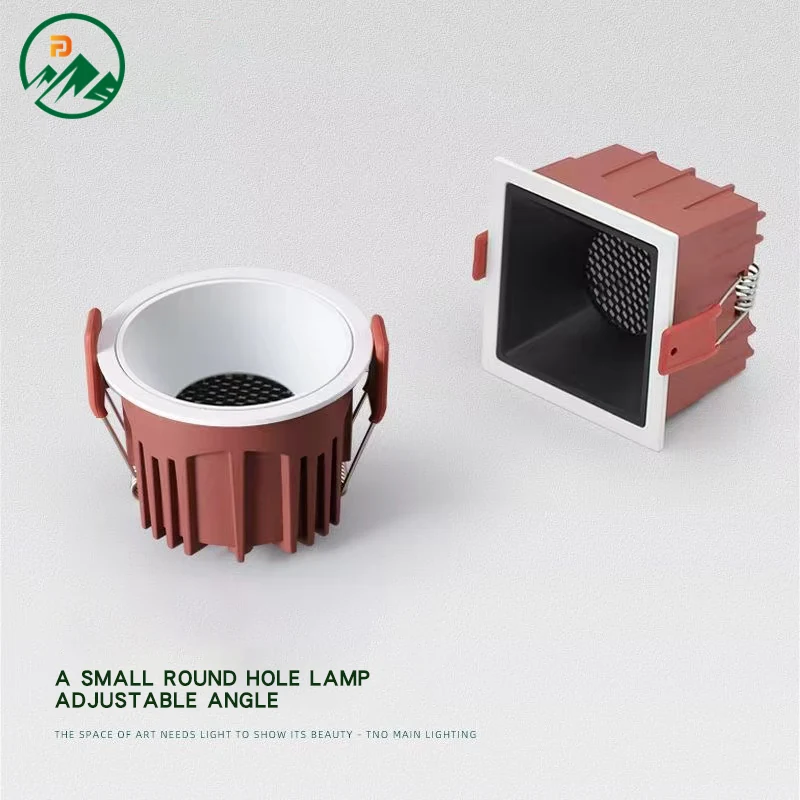

The FD-DL030R05 and FD-DL030S07 are square and round commercial LED downlights designed for office and interior architectural applications. Both models use CREE LED chips and FULAIDE drivers, operate on AC85-265V, and are built with an aluminium body for heat dissipation. The round model is 5W with a D65 x H53 mm dimension and D55 mm cut-out; the square model is 7W with 65 x 65 mm face and 55 mm cut-out. They are rated IP20, suitable for dry indoor environments, and offer beam angles of 15°, 24°, or 36°. The colour temperature range is 2800K to 6500K, allowing flexibility in ambient lighting design.
| Model | FD-DL030R05 |
|---|---|
| Power | 5W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D65 x H53, Hole D55 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | FULAIDE |
| Colour Temperature | 2800-6500K |
| Beam Angle | 15°/24°/36° |
| Warranty | 3 Years |
Key Benefits
- Aluminium body provides effective heat dissipation in enclosed ceiling spaces
- AC85-265V input allows direct connection to standard office and commercial mains
- Multiple beam angles (15°, 24°, 36°) let one fixture serve focused task lighting or broader ambient coverage
- CREE LED chip ensures consistent lumen output and long life in commercial settings
- IP20 rating is sufficient for dry indoor environments with no exposure to dust or water
- 3-year warranty covers typical commercial project timelines and maintenance cycles
Application Scenarios
- Task lighting in office cubicles and meeting rooms with focused beam angles
- General ambient lighting in commercial lobbies and corridors using wider beam angles
- Recessed ceiling installations in retail spaces where clean lines and low profile are required
- Lighting in dry indoor environments such as offices, warehouses, and administrative buildings
Who It Is For
- Commercial office project contractors installing recessed ceiling lighting
- Facility managers specifying lighting for office refurbishments and new builds
- Electrical wholesalers supplying office and commercial lighting in Europe and the Middle East
- Brand owners sourcing OEM downlights under their own label for commercial distribution
Problems It Solves
- Fixed beam angle fixtures require multiple SKUs for different lighting needs in the same project
- Non-heat-dissipating materials can reduce LED lifespan in enclosed ceiling housings
- Low-voltage or incompatible drivers require additional components and increase installation complexity
- Lack of beam angle options forces contractors to use multiple fixture types for varied lighting tasks
- Inconsistent colour temperature across fixtures leads to uneven lighting in office spaces
Technical Features
- CREE LED chip for stable output and long operational life

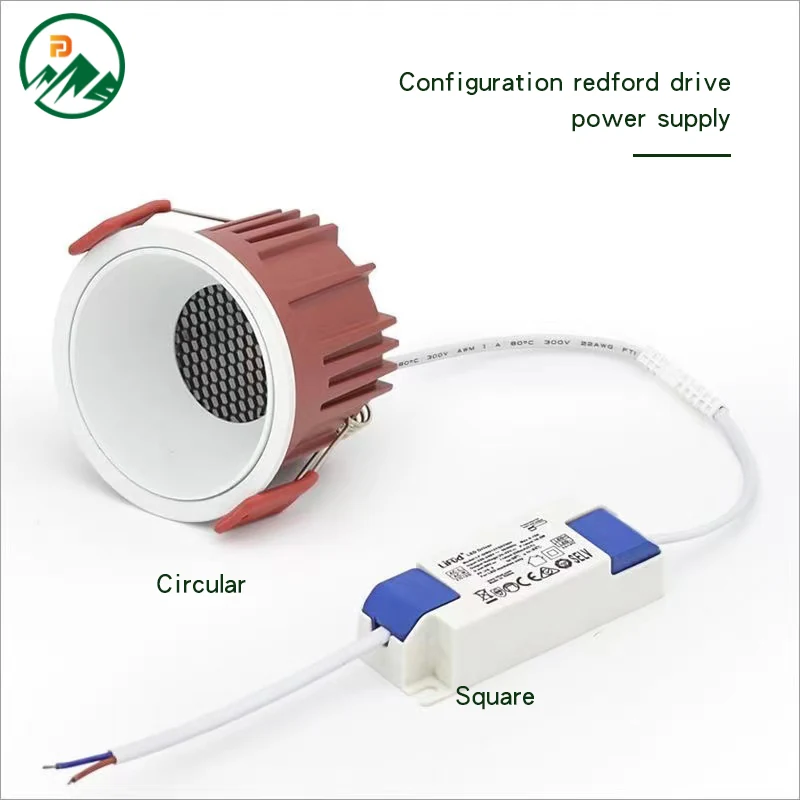

- FULAIDE driver for reliable performance across wide input voltage range
- AC85-265V input compatible with standard commercial power supplies
- Beam angles of 15°, 24°, or 36° selectable during ordering

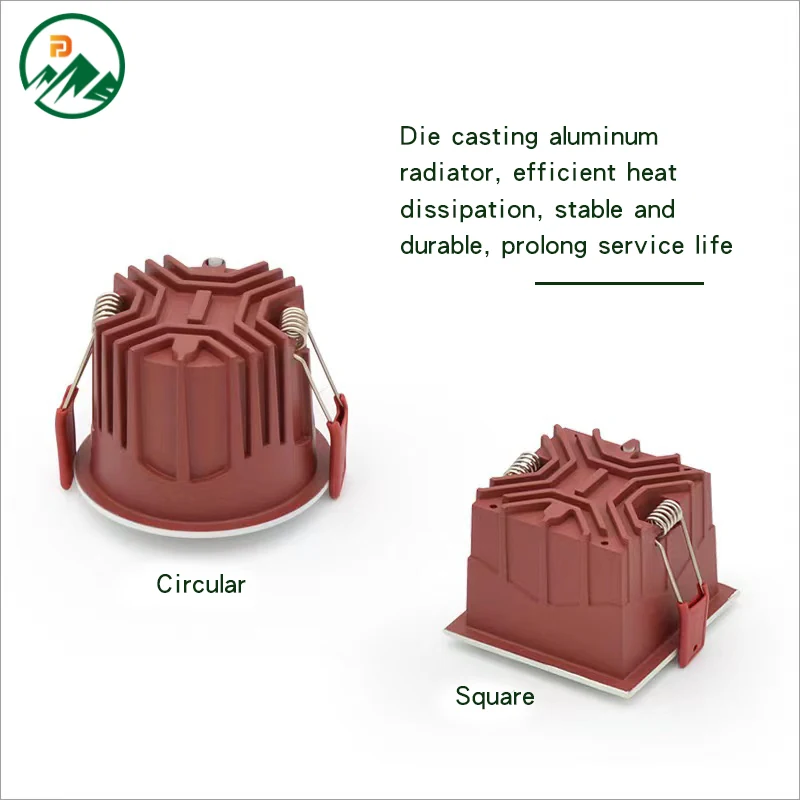

- Aluminium body for effective heat transfer in enclosed ceiling installations
- IP20 rating for dry indoor environments only, no protection against dust or moisture
Materials
- Aluminium body for heat dissipation in enclosed ceiling spaces
- CREE LED chip for consistent light output and longevity
- FULAIDE driver for stable operation across input voltage range
Manufacturing Process
- Aluminium body machining and surface finishing
- LED board assembly with CREE chips and FULAIDE driver
- Beam angle selection and optic mounting based on order specification
- Sealing and final inspection before packing
- Powered ageing test before shipment
Quality Control
- Incoming inspection of CREE LED chips and FULAIDE drivers
- Visual and dimensional check of aluminium body and cut-out compatibility
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle selected at order stage: 15°, 24°, or 36°

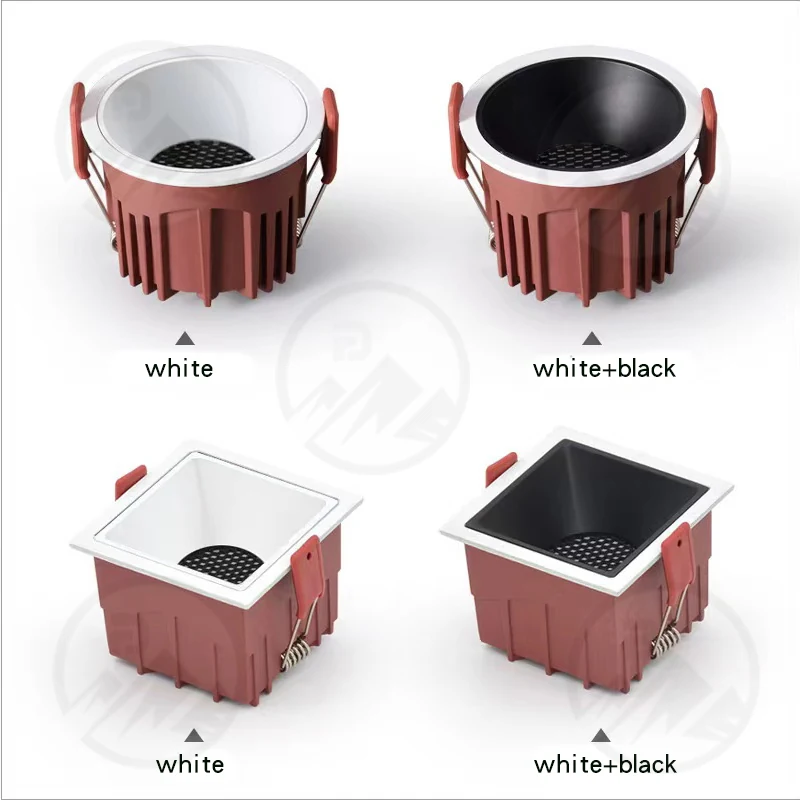

- Available in round (FD-DL030R05) or square (FD-DL030S07) shape
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Non-adjustable beam angle downlight
Requires multiple SKUs for different lighting tasks, but lower cost per unit
Plastic-bodied downlight
Less heat dissipation, shorter lifespan in enclosed spaces, but lower weight and cost
IP40-rated downlight
Better dust protection, but not required in dry indoor environments where IP20 is sufficient
Use Guide
- Cut a D55 mm hole in the ceiling for the round model or a 55 mm square hole for the square model
- Ensure the ceiling cavity is dry and free of moisture before installation
- Select the desired beam angle (15°, 24°, or 36°) during ordering to match the lighting task
- Mount the fixture into the cut-out and secure with provided clips or screws
- Connect to AC85-265V mains supply using standard wiring methods
- Do not install in areas with moisture, dust, or high humidity where IP20 is not sufficient
Commercial LED Down Light Square and Round Shape Questions
What is the cut-out size for this downlight?
The fixture requires a D55 mm hole for the round model and a 55 mm square hole for the square model.
Can I choose the beam angle?
Yes. The beam angle can be selected as 15°, 24°, or 36° at the time of order.
Is the driver included?
Yes. The FULAIDE driver is included with each fixture.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is this suitable for wet or dusty areas?
No. The IP20 rating is for dry indoor environments only. Do not install in bathrooms, kitchens, or outdoor areas.
