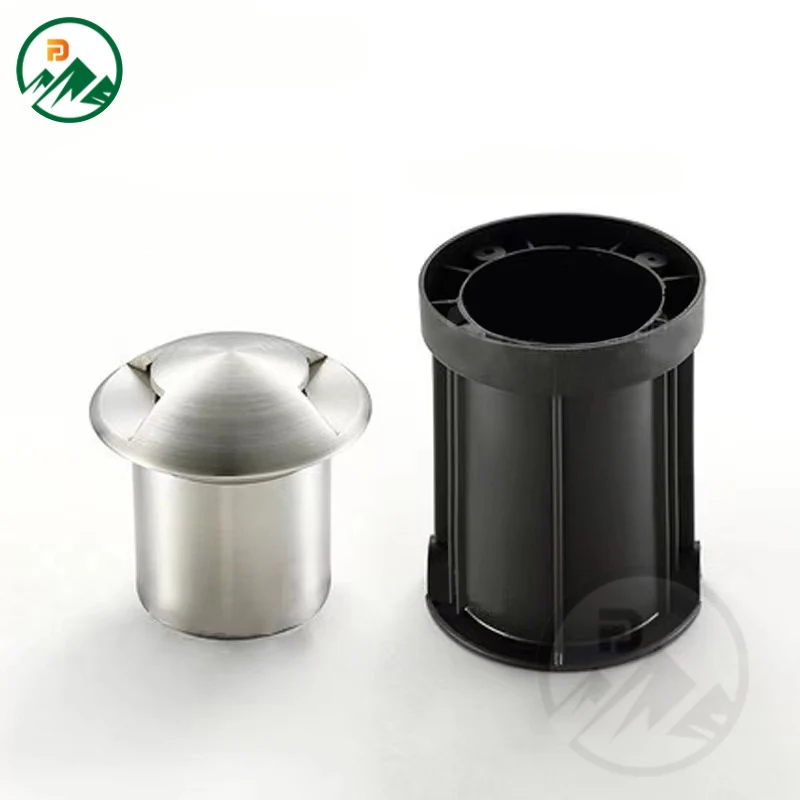

3W Stainless steel Underground Step LED Light
The FD-US010R03 is a 3W recessed step light designed for landscape and architectural applications where a low-profile, durable light is needed in walkways, stairs, and paved areas. The fixture is built with a stainless steel 304 cover over an aluminium body, rated IP67 for protection against dust and temporary immersion. It runs on DC24V and is supplied without a driver, allowing integration into systems with centralised power supplies. The compact size fits into a 46mm cut-out, making it suitable for tight spaces in hardscape installations.
| Model | FD-US010R03 |
|---|---|
| Power | 3W |
| Input Voltage | DC24V |
| IP Rating | IP67 |
| Dimension | D52 x H95 mm, Hole 46 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits
- IP67 rating ensures reliable performance in paved areas exposed to rain and standing water
- Stainless steel 304 cover resists corrosion and wear from foot traffic and cleaning
- 3W power consumption offers low energy use for long-term operation in outdoor settings
- No driver included allows use with centralised power systems, reducing on-site components
- Compact D52 x H95mm size fits into small cut-outs, minimising civil work and material use
- CREE LED chip provides consistent light output with stable performance over time
Application Scenarios

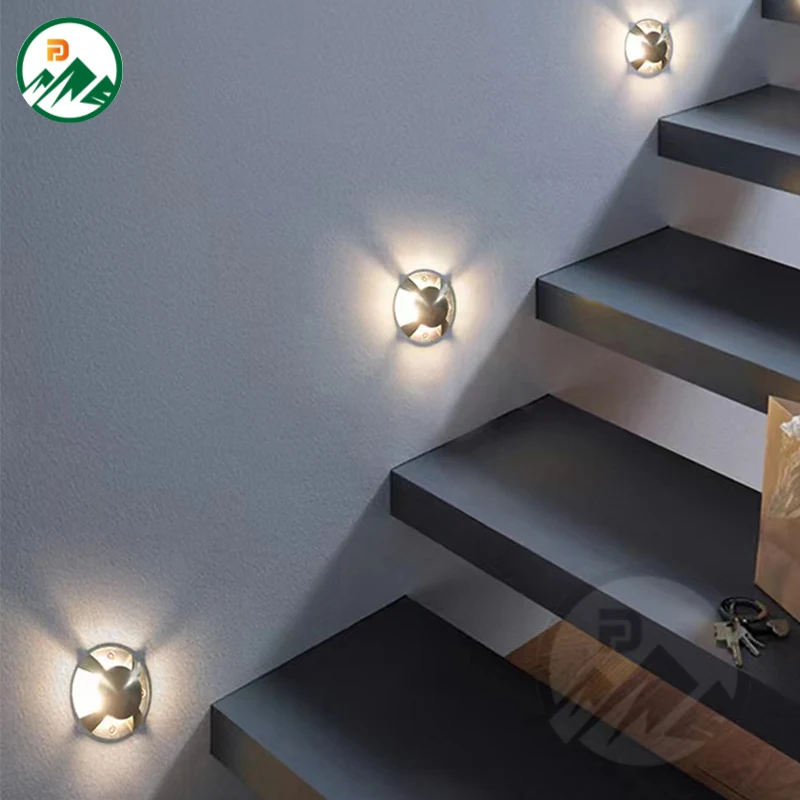

- Illuminating stair treads and landings in residential and commercial building entrances

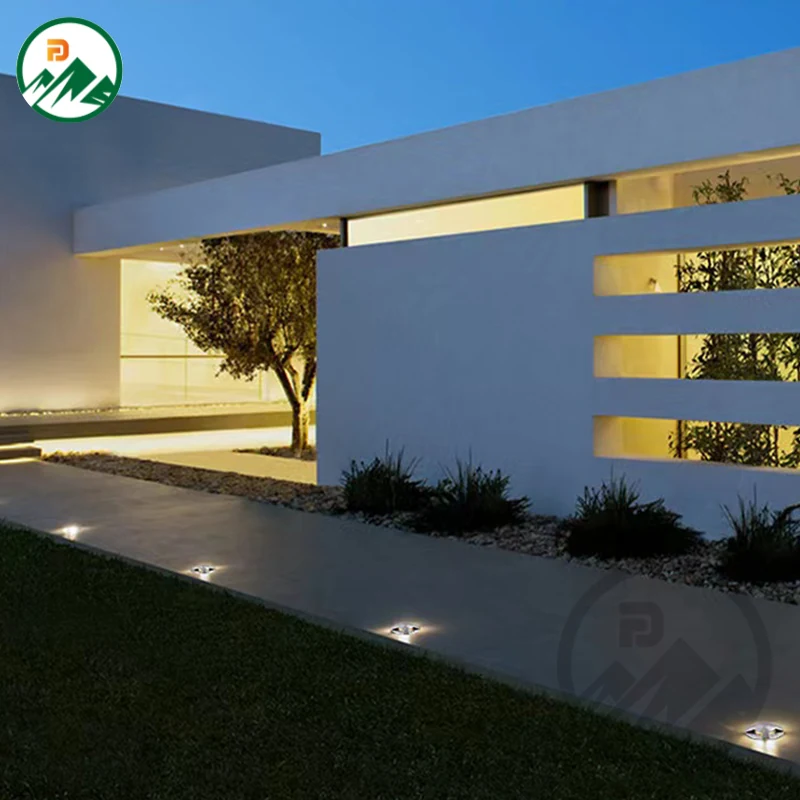

- Guiding pedestrian paths in gardens, courtyards, and public plazas with minimal visual impact

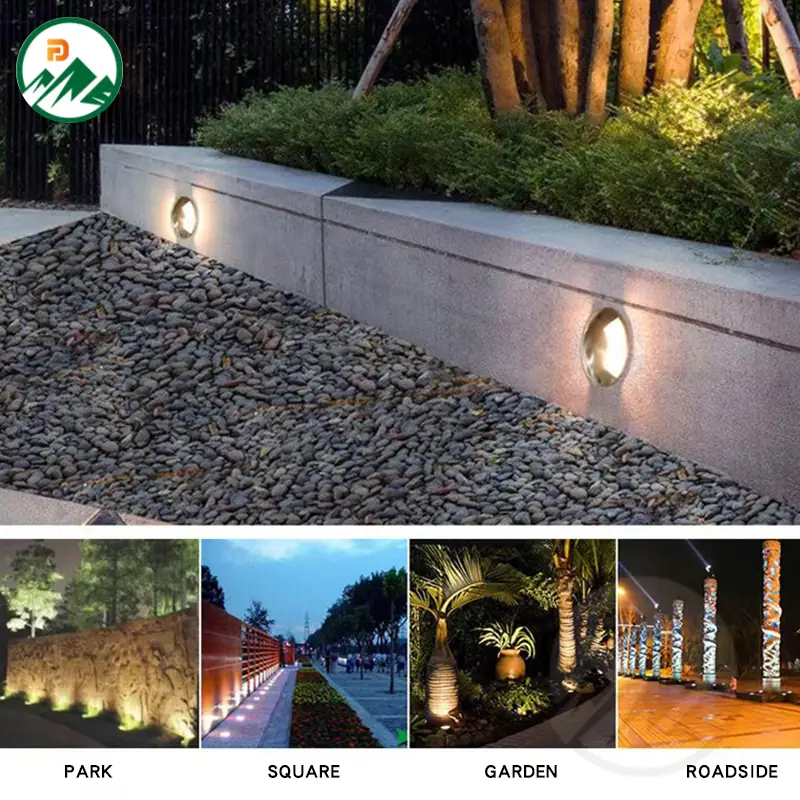

- Lighting walkways in parks and landscape schemes where durability and low maintenance are required
- Installing in paved areas subject to frequent washing or salt exposure in coastal or urban zones
Who It Is For
- Facade and landscape lighting contractors installing step lights in hardscape
- Electrical wholesalers supplying low-voltage outdoor lighting for European and Middle Eastern projects
- Lighting designers specifying compact, durable fixtures for pedestrian safety and aesthetic integration
- Brand owners sourcing OEM step lights under their own label with custom logo printing
Problems It Solves
- Non-IP67 rated step lights fail in wet or flooded paving, leading to early replacement
- Aluminium or plated trims degrade under foot traffic and frequent cleaning in public areas
- Fixtures with built-in drivers increase cost and complexity when centralised power systems are used
- Large step lights require oversized cut-outs, increasing civil work and material costs
- Inconsistent light output from low-grade LEDs affects visibility and safety over time
Technical Features

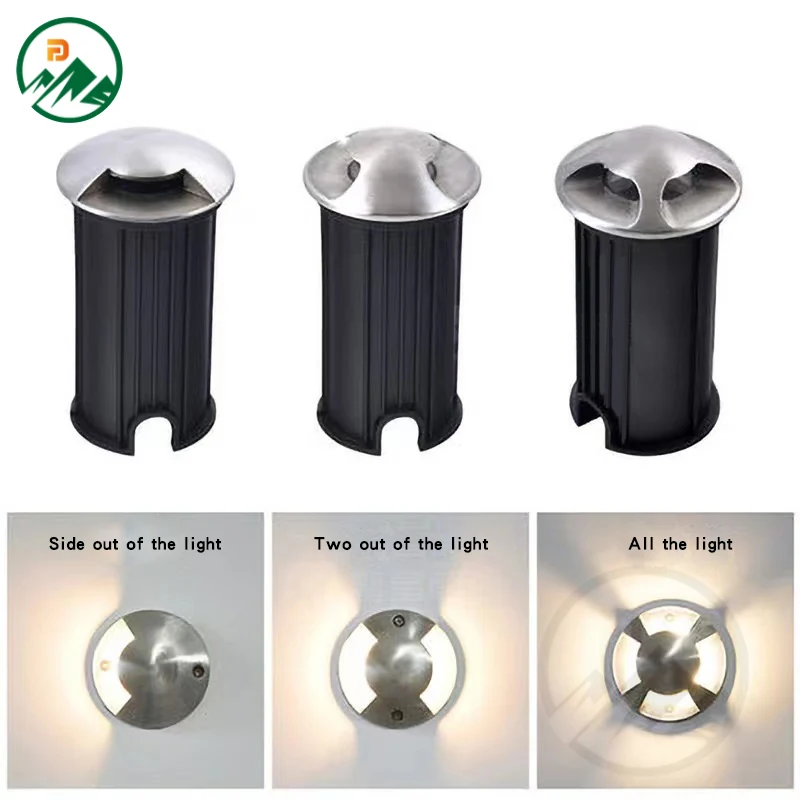

- Recessed design with stainless steel 304 cover for walkable surfaces
- IP67 sealing for protection against dust and temporary immersion in water
- DC24V input with no driver included, suitable for centralised power systems

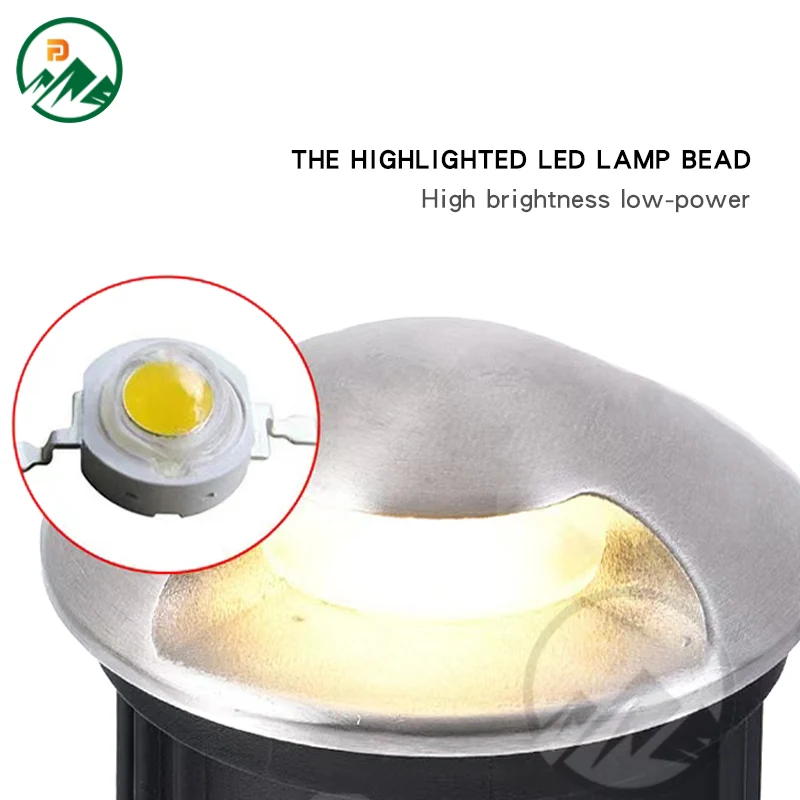

- CREE LED chip for stable and efficient light output
- Compact D52 x H95mm dimensions with a 46mm cut-out hole
- Aluminium body for heat dissipation and structural support
Materials
- Stainless steel 304 cover for the walked-on surface
- Aluminium body for heat dissipation and structural integrity
- Tempered glass lens over the LED module
Manufacturing Process
- Aluminium body machining and finishing
- Stainless steel 304 cover forming and polishing
- LED board assembly with CREE packages
- Sealing and gasket fitting to achieve IP67
- Powered ageing test before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP67 sealing check before fixture closure
- Powered ageing run under load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied without driver to match centralised power systems
- OEM and ODM production available for buyers selling under their own brand
- DC24V input standard, no other voltage options listed
Compared With the Alternatives
Step light with built-in driver
Higher cost and complexity, but may simplify installation in small projects without centralised panels
Aluminium-trim step light
Less durable under foot traffic and cleaning; stainless steel 304 resists wear and corrosion better
Surface-mounted step light
More visible and vulnerable to damage; recessed design keeps the fixture flush with the surface
Use Guide
- Cut a 46mm hole in the paving material and ensure proper drainage below the fixture
- Install the fixture with the cover flush with the finished surface to avoid trip hazards
- Connect to a DC24V power supply with a centralised driver or control panel
- Avoid over-tightening the cover during installation to prevent damage to the sealing gasket
- Clean the glass lens during routine maintenance to maintain light output
3W Stainless steel Underground Step LED Light Questions
What is the cut-out size for this step light?
The fixture requires a 46mm hole for installation.
Is the driver included?
No. The fixture is supplied without a driver, allowing integration with centralised power systems.
Can it run on AC voltage?
No. The model is rated for DC24V only.
Is the stainless steel cover resistant to corrosion?
Yes. The stainless steel 304 cover resists corrosion and wear from foot traffic and cleaning.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
