14.4W High quality Design of LED Strip Light
The FD-LS010L144 is a 14.4W linear LED strip light designed for commercial office and facade lighting applications where a slim, durable, and waterproof profile is required. The strip is built with an aluminium core for heat dissipation and an ABS outer jacket for mechanical protection. It operates on AC85-265V or DC24V input, allowing integration into both standard mains and low-voltage lighting systems. The IP68 rating ensures it can be used in wet or high-moisture environments, including outdoor facade installations and indoor commercial spaces with high humidity. The EPISTAR 5050 LED chip provides consistent light output across the length of the strip.
| Model | FD-LS010L144 |
|---|---|
| Power | 14.4W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP68 |
| Dimension | D16.5 mm,T8 mm |
| Material | aluminium+ABS |
| LED Chip | EPISTAR 5050 |
| Driver | FENGDIAN |
| Warranty | 3 Years |
Key Benefits
- IP68 rating allows use in wet or high-moisture environments including outdoor facades and humid indoor areas
- AC85-265V or DC24V input supports integration into both mains and low-voltage systems
- Aluminium core improves heat dissipation, extending LED lifespan
- Slim D16.5mm x T8mm profile fits into tight architectural joints and coves
- ABS outer jacket resists impact and abrasion in high-traffic or exposed locations
- 14.4W power draws less energy than traditional linear lighting, reducing operating cost
Application Scenarios
- Linear lighting in office ceilings where a slim, continuous light line is needed without visible joints
- Facade cove lighting on commercial buildings with exposed edges or recessed channels
- Wet area lighting in commercial kitchens, restrooms, or service corridors with high humidity
- Under-cabinet lighting in office kitchens or break rooms with frequent cleaning

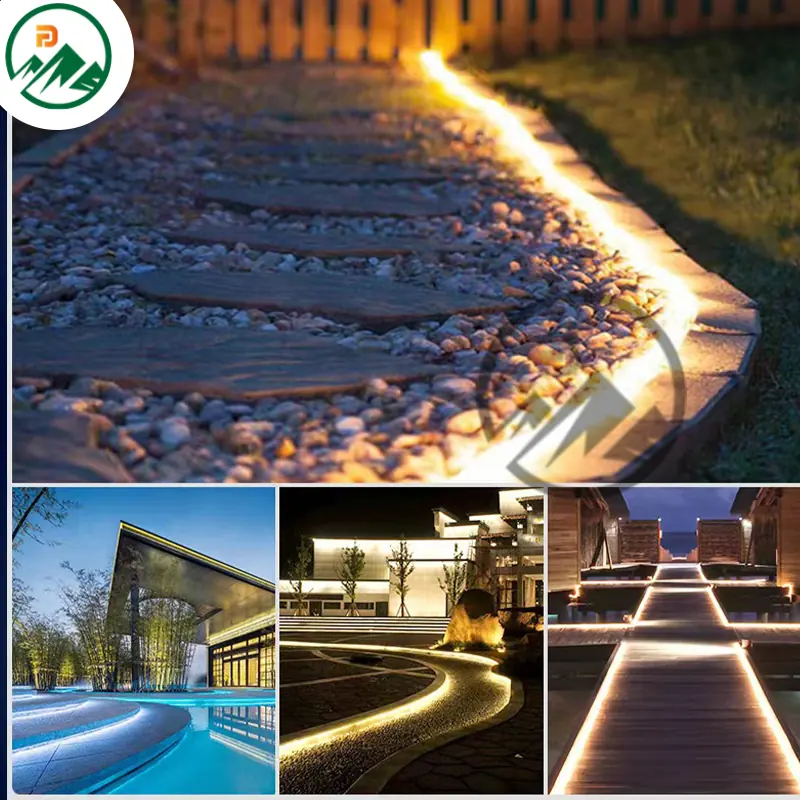

- Outdoor facade lighting in coastal or high-rainfall areas where moisture resistance is critical
Who It Is For
- Commercial office lighting contractors installing linear strips in ceiling coves and soffits
- Facade lighting designers specifying slim, durable strips for building edge lighting
- Electrical wholesalers supplying linear LED solutions for commercial and architectural projects
- Brand owners sourcing OEM linear strips under their own label with custom logo printing
Problems It Solves
- Standard LED strips with lower IP ratings fail in high-moisture or outdoor environments
- Non-heat-dissipating strips degrade faster in enclosed or high-temperature installations
- Thick or bulky strips do not fit into narrow architectural coves or joints
- Inconsistent voltage input options force the use of multiple fixture types on the same site
- Lack of durable outer materials leads to damage during installation or cleaning
Technical Features

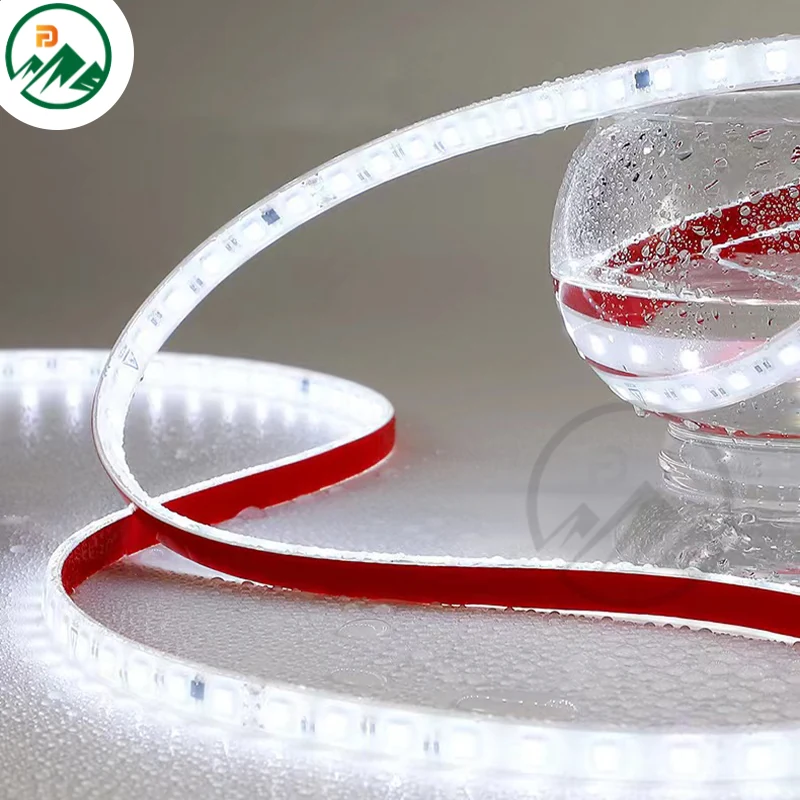

- IP68 sealing for full dust and water immersion protection
- Aluminium core for effective heat transfer and thermal management
- ABS outer jacket for impact and abrasion resistance

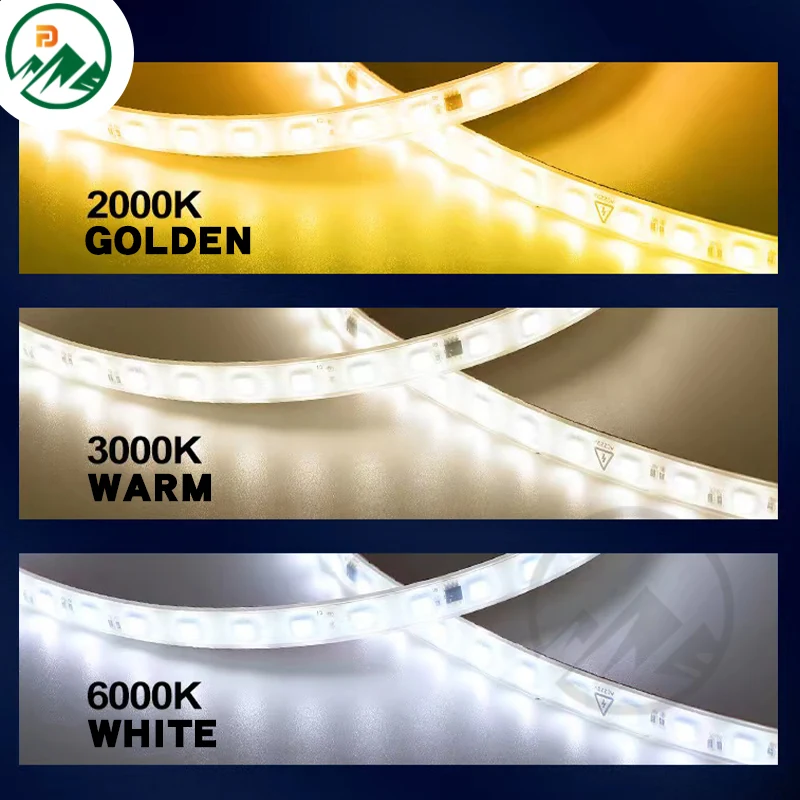

- EPISTAR 5050 LED chip for consistent light output and reliability
- FENGDIAN driver for stable performance across input voltage ranges
- AC85-265V or DC24V input to match existing site wiring configurations
Materials
- Aluminium core for heat dissipation and structural rigidity
- ABS outer jacket for mechanical protection and surface durability
- EPISTAR 5050 LED packages for consistent light output
- FENGDIAN driver for stable voltage regulation
Manufacturing Process
- Aluminium core extrusion and surface treatment
- ABS jacket injection moulding around the core
- LED board assembly with EPISTAR 5050 chips
- Driver integration and electrical connection
- IP68 sealing and pressure testing
- Aging and performance test before packing
Quality Control
- Incoming inspection of EPISTAR LED chips and FENGDIAN drivers
- IP68 sealing verification under pressure test
- Powered ageing test for 72 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site control strategy
- AC85-265V or DC24V input version available
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard IP65 LED strip
Higher protection level allows use in fully submerged or high-pressure wash areas
Plastic-only strip
Aluminium core improves heat dissipation and structural stability, reducing long-term failure risk
Non-heat-dissipating strip
Aluminium core extends LED lifespan in enclosed or high-temperature installations
Use Guide
- Install the strip in a clean, dry area before sealing to avoid contamination
- Ensure the mounting surface is smooth and free of debris to maintain IP68 integrity
- Use the correct cable size for DC24V runs to prevent voltage drop over long circuits
- Avoid sharp bends during installation to prevent damage to the internal wiring
- Clean the surface with a soft cloth and mild detergent during maintenance to preserve output
14.4W High quality Design of LED Strip Light Questions
What is the IP rating of this strip light?
The strip light is rated IP68, which means it is dust-tight and protected against continuous immersion in water.
Can it run on 24V DC as well as mains voltage?
Yes. The model supports both AC85-265V and DC24V input, so it can be used in both mains-fed and low-voltage systems.
Is the driver included?
Yes, the FENGDIAN driver is included. It can also be supplied without the driver if the project uses a central driver system.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies between 2 and 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
Can I have my logo printed on the strip?
Yes. Customer logo printing is available and confirmed against an approved sample before production begins.
