1-3W Mini LED Underground Light

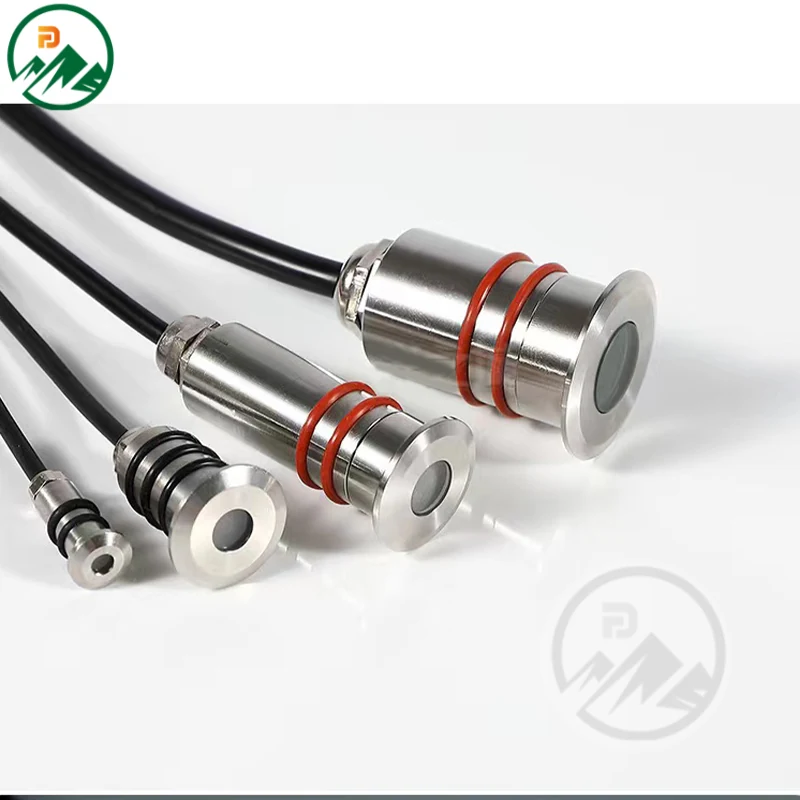

The FD-U080R01 is a 1W mini recessed in-ground LED luminaire designed for landscape and architectural applications where low power and compact size are required. The fixture is built with a stainless steel 304 cover and an aluminium body, rated IP68 for permanent submersion. It operates on DC12V and is supplied without a driver, allowing integration into low-voltage systems with centralised power supplies. The multiple diameter options (D10 to D32mm) support various installation depths and site conditions.
| Model | FD-U080R01 |
|---|---|
| Power | 1W |
| Input Voltage | DC12V |
| IP Rating | IP68 |
| Dimension | D10/D15/D20/D22/D25/D32 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits

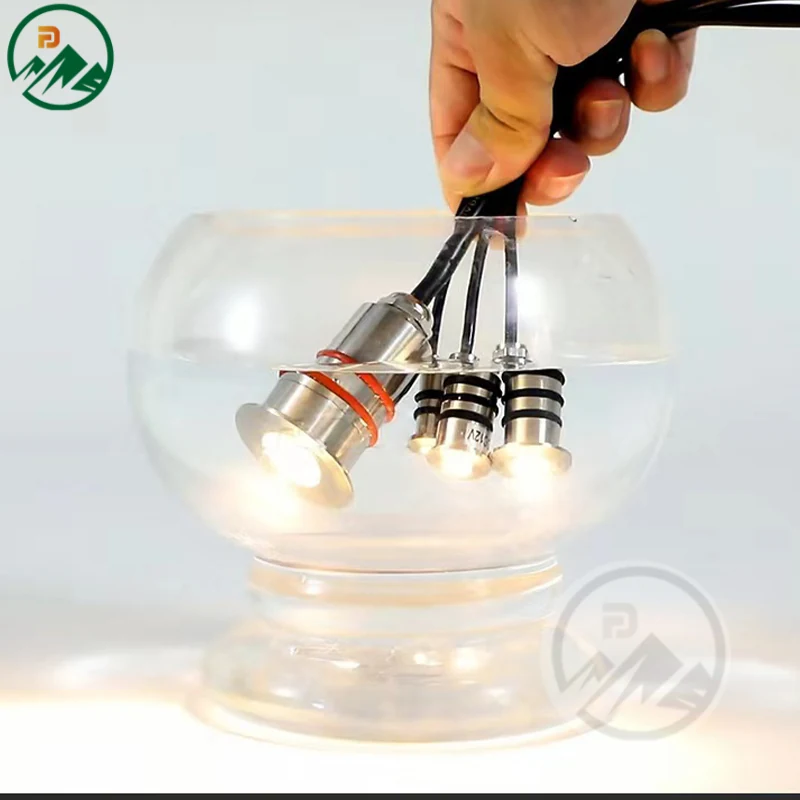

- IP68 rating allows permanent submersion, suitable for areas with long-term water exposure
- DC12V input with no driver included enables use in low-voltage systems with centralised power
- Multiple diameter sizes (D10 to D32mm) allow selection based on site-specific cut-out constraints
- Stainless steel 304 cover resists corrosion in wet, salted, or frequently washed areas
- Low power consumption at 1W supports energy-efficient landscape lighting schemes
- Compact size reduces civil works and backfill requirements in tight spaces
Application Scenarios
- Low-level path lighting in garden and courtyard areas with frequent water exposure
- Edge marking for paved walkways and terraces that flood during rain
- Accent lighting in water features or fountains where fixtures are permanently submerged
- Installation in tight spaces with limited access or depth, such as narrow joints or shallow beds
- Use in low-voltage landscape systems where central drivers are already installed
Who It Is For
- Lighting contractors installing small in-ground lights in landscape and hardscape projects
- Facade and landscape designers specifying low-power, compact fixtures for tight spaces
- Electrical wholesalers supplying small-scale architectural lighting in Europe and the Middle East
- Brand owners sourcing OEM mini in-ground luminaires under their own label
Problems It Solves
- Fixed-size in-ground lights often require re-coring when the site layout changes late in the job
- Non-IP68 rated fixtures fail in areas with prolonged water exposure or submersion
- High-power lights are unnecessary and inefficient for small accent or path lighting tasks
- Lack of driver options forces buyers to use incompatible or redundant power supplies
- Aluminium or plated trims degrade quickly in wet or salted environments
Technical Features
- IP68 sealing for permanent submersion in water
- DC12V input with no driver supplied, suitable for low-voltage centralised systems
- Stainless steel 304 cover over an aluminium body for corrosion resistance and heat transfer
- CREE LED chip for consistent light output and long life

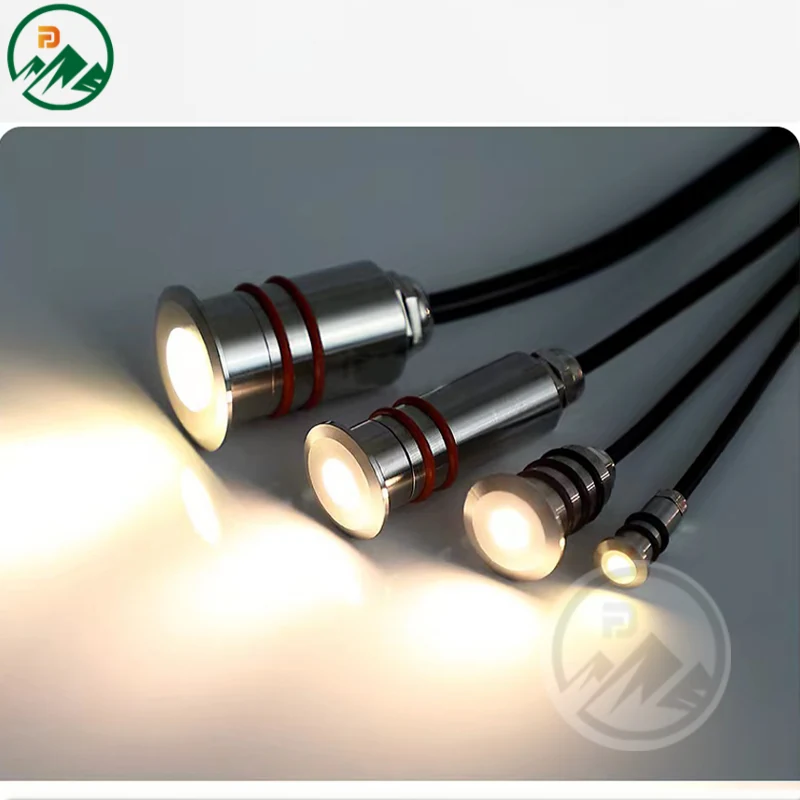

- Multiple diameter options (D10 to D32mm) to match different cut-out sizes
- No driver included, allowing integration with existing site power distribution

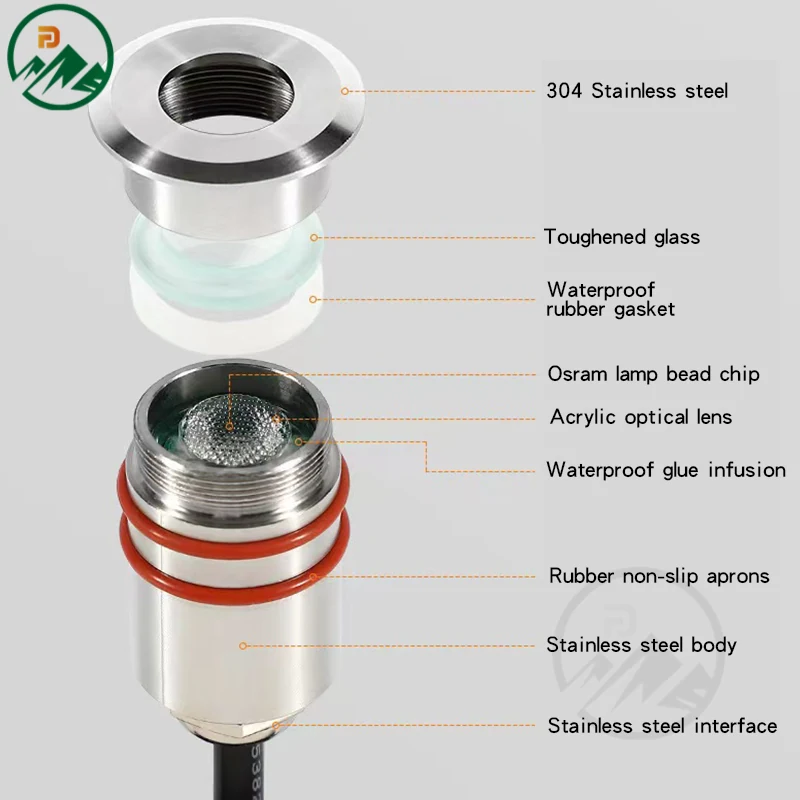

Materials
- Stainless steel 304 cover for the exposed surface, resistant to corrosion and wear
- Aluminium body for heat dissipation into surrounding backfill
- Sealing gasket and IP68-rated housing to prevent water ingress
Manufacturing Process
- Aluminium body machining and surface finishing
- Stainless steel 304 cover forming and polishing
- LED board assembly with CREE packages
- Sealing and IP68 testing before final closure
- Aged and tested under DC12V before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP68 sealing verification before fixture closure
- Powered ageing test under DC12V for 72 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match site-specific low-voltage control strategies
- Multiple diameter sizes (D10 to D32mm) for different cut-out requirements
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard IP67 in-ground light
IP68 allows permanent submersion, suitable for fountains or long-term flooded areas
Driver-included in-ground light
No driver reduces cost and allows integration into centralised low-voltage systems
Larger diameter in-ground light
Smaller sizes (D10–D22mm) reduce civil work and fit in tight joints or narrow beds
Use Guide

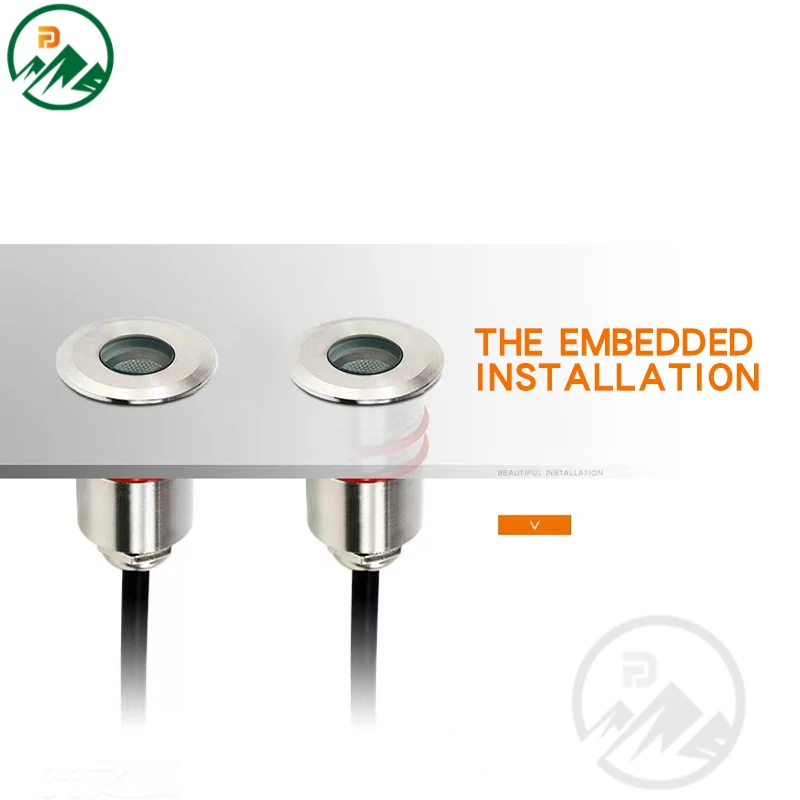

- Select the correct diameter (D10 to D32mm) based on the cut-out size and site depth
- Ensure the cut-out is clean and dry before installing the fixture
- Use a sealing compound if required to maintain IP68 integrity at the joint
- Connect to a DC12V power source with centralised drivers to avoid on-board power issues
- Avoid mechanical stress on the cover during backfilling to prevent damage to the seal
1-3W Mini LED Underground Light Questions
What is the input voltage for this light?
The fixture operates on DC12V.
Is the driver included?
No. The light is supplied without a driver, suitable for integration into low-voltage systems with centralised drivers.
What does IP68 mean for this fixture?
IP68 means the fixture is protected against dust and can be permanently submerged in water, suitable for fountains or long-term flooded areas.
What diameter sizes are available?
The fixture is available in D10, D15, D20, D22, D25, and D32mm diameters.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long is the production lead time for mass orders?
Mass production lead time is typically 1-2 weeks, with shipping via DHL, UPS, FedEx, or TNT taking 3-5 days in transit.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
