LED Wall Washer

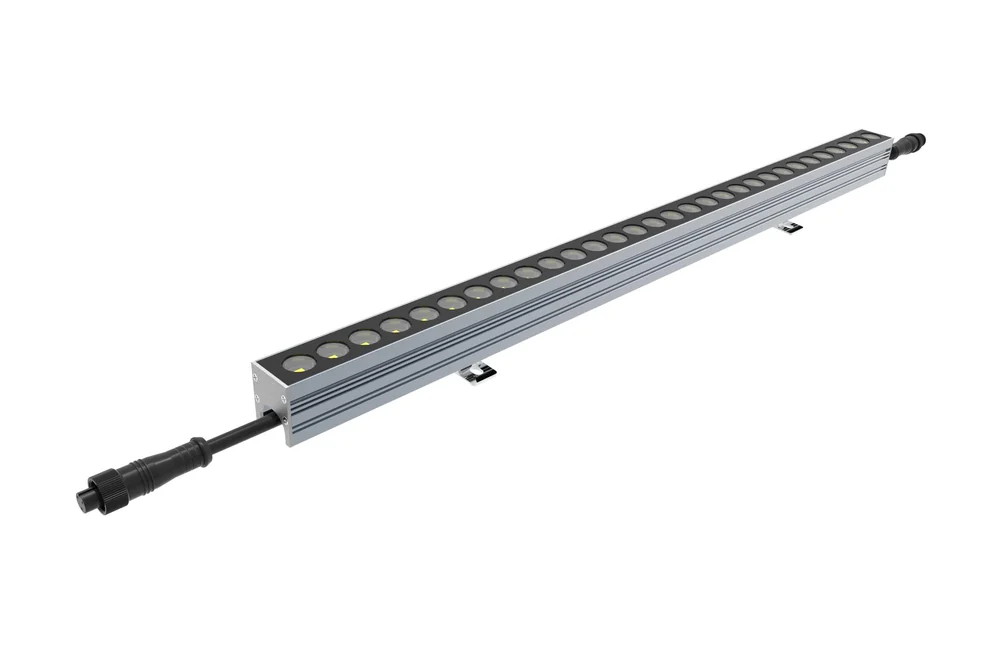

12W Slim LED Wall Washer
Series WW025
Slim 48 LED low power wall washer with aluminium end caps and full PU potting
WW025Series
12 - 15 WPower
DC24VVoltage
48 pcsLED
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
WW025 LED Wall Washer
Key Benefits
- Thickened anti rust aluminium body rated for coastal and humid sites
- Adjustable bracket sets the grazing angle after the fixture is mounted
- Tempered glass cover with customised lenses for even wash at any height
- Length made to order so joints land where the architecture allows
Key Points
- is a low power SMD LED strip designed for outdoor landscape lighting. It adopts aviation grade 6063 extruded aluminum shell and aluminum end cover, which is sealed and waterproof by high thermal conductivity and weather resistant PU glue; it can be used to outline the building, the wall is brightened, and the inner and outer surfaces are brightly decorated; the length of the wall washer can be customized; Flexible and simple.
Features
- New generation dual channel real-time backup control protocol
- Standard DMX512 Control Protocol
- Industry-leading wireless button-type anti-smash connection design
- High thermal conductivity glue full potting waterproof design
- Outdoor lightning protection and Electrostatic(ESD) special protection design
- The product adopts the original adjustable mounting bracket design
- Support RGB/W current separately adjustable (low light and high gray)
Who It Is For
- General contractors lighting hotels, offices and shopping malls
- Landscape contractors grazing garden walls, columns and feature surfaces
- Facade lighting integrators who need DMX512 colour change over long facades
- Buyers replacing failed wall washers where waterproofing was the weak point
Problems It Solves
- Thickened anti rust anti corrosion aluminium body with UV and salt fog resistance
- Tempered glass covers and customised lenses for uniform mixing at different mounting heights
- Air convection heat dissipation designed into the extrusion
- Supporting shields and adjustable brackets aim the beam and cut glare pollution
Application Scenarios
- Building outline and facade grazing
- Hotels, offices and shopping malls
- Landscape walls and columns
- Bridge and municipal night view
Specifications
Technical Parameters
| Model | Light source quantities | Light source | Color | Control | DC Operating Voltage | Power | White light light intensity |
|---|---|---|---|---|---|---|---|
| WW025-48BU | 48PCS | 5050 | RGB | Dual channel real-time backup TTL | 24V | 12W | 120cd |
| WW025-48BD | 48PCS | 5050 | RGB | DMX512 | 24V | 12W | 120cd |
| WW025-48XT | 48PCS | 5050 | RGBW | Single line serial TTL | 24V | 15W | 180cd |
| WW025-48XD | 48PCS | 5050 | RGBW | DMX512 | 24V | 15W | 180cd |
| WW025-48CU | 48PCS | 2835 | W | Dual channel real-time backup TTLTTL | 24V | 12W | 240cd |
| WW025-48CD | 48PCS | 2835 | W | DMX512 | 24V | 12W | 240cd |
| WW025-48CN | 48PCS | 2835 | W | No control | 24V | 12W | 240cd |
Materials
| Body | Aviation grade 6063 extruded aluminium |
|---|---|
| End cap | Aluminium, die cast aluminium or stainless steel by model |
| Cover | Tempered or optical glass |
| Seal | High thermal conductivity weather resistant PU glue |
| Bracket | Adjustable, angle set on site |
Manufacturing Process
- 6063 aluminium extrusion and machining
- Surface spraying or anodising
- LED board and lens assembly
- Glass cover and end cap sealing
- Waterproof, ageing and beam angle verification
Details And Drawings
Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| 18-54W LED Wall Washer Lighting | Building outline and facade grazing | DMX512 | High power SMD wall washer in aviation grade 6063 aluminium with customisable length |
| 12W Slim LED Wall Washer (this model) | Building outline and facade grazing | DMX512 / TTL | Slim 48 LED low power wall washer with aluminium end caps and full PU potting |
| 18W 24W LED Wall Washer Lamps | Building outline and facade grazing | DMX512 / TTL | High power wall washer with die cast aluminium and stainless steel end caps |
| 18W 24W LED Wall Washer 3000K | Building outline and facade grazing | DMX512 / TTL | Toughened glass cover wall washer with structural protection and a high waterproof rate |
| DMX LED Wall Washer | Building outline and facade grazing | DMX512 / TTL | Thickened aluminium body with integrated precision base and free angle adjustment |
| DMX512 LED Wall Washer Lights | Building outline and facade grazing | DMX512 / TTL | Compact wall washer using structural waterproofing with no glue technology |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Use Guide
Installing And Commissioning
Set the bracket angle to graze the surface rather than point at the viewer, keep the fixture at the recommended offset from the wall, and fit the supplied shield where glare could reach windows or walkways.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
Quality Control
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Related Products
Other Models Worth Comparing
Wall Washer
18-54W LED Wall Washer Lighting
High power SMD wall washer in aviation grade 6063 aluminium with customisable length
Wall Washer
18W 24W LED Wall Washer Lamps
High power wall washer with die cast aluminium and stainless steel end caps
Wall Washer
18W 24W LED Wall Washer 3000K
Toughened glass cover wall washer with structural protection and a high waterproof rate
Wall Washer
DMX LED Wall Washer
Thickened aluminium body with integrated precision base and free angle adjustmentCases
Cases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
FAQ
12W Slim LED Wall Washer FAQ
What is the protection rating of the 12W Slim LED Wall Washer?
This model is built for all weather outdoor use. The exact IP rating is printed on the parameter sheet, which we send on request.
Can the length, colour or lens be customised?
Yes. Lamp length or point spacing, housing colour, LED colour and lens angle are all made to the project requirement.
Is a sample available before I place a production order?
Yes. One piece is available for sample checking and samples ship in 3 to 5 days.
How is this fixture controlled?
It runs on the control protocol listed in the parameters above and works with our master and slave controllers, which also support mixed lamp types on one system.
What happens if a unit fails after installation?
Our defective rate is below 0.2 percent. Within the 2 to 5 year warranty we send replacements with your next order, and for a defective batch we repair and resend or agree another solution with you.
Ready To Price This Model
Send quantity, run length and mounting condition and we will quote the 12W Slim LED Wall Washer together with drivers and controllers.
