LED Spotlight And Flood Light

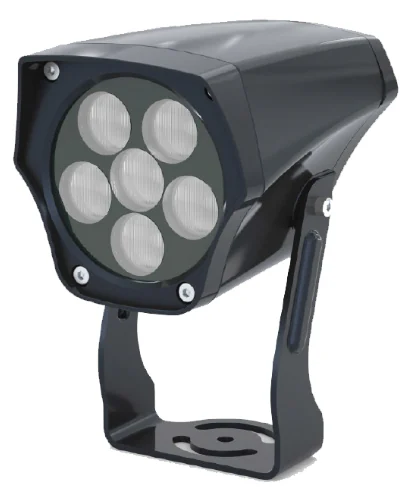

Black Gold Steel Series LED RGB Spotlight
Series Black Gold Steel
Compact RGB spotlight with adjustable bracket for wall and wall wiping projects
IP65Rating
DMX512Control
RGB / warm / cool whiteColour
Extruded aluminiumBody
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
Compact RGB spotlight with adjustable bracket for wall and wall wiping projects.
Key Benefits
- Lens angle chosen from the real mounting distance rather than a catalogue default
- IP65 body in UV and salt fog resistant aluminium with optical PC lens
- Adjustable bracket makes aiming repeatable across dozens of fixtures
- RGB, warm white or cool white with DMX512 or RDM control options
Led Rgb Spotlight Applications
- Low-power led spotlight with moderate power,support for a variety of customizations: aluminum color,length,lens and LED color(RGB ,warm white,or cold white);
- IP65 rated,UV resistance,flame retardant V0,Class III of Electrical safety level can effectively ensure the stability of lamps in all-weather outdoor environment.
- It’s easy to install,adjustable angle by fixing lamp bracket.
- It can be used in many kinds of outdoor engineering applications,such as wall installation,low-power wall washing and wall wiping project.
Lighting Performance
- RGBW,RGB,Monichrome and other light source combinations to meet more requiements;
- Minimized visible luminous surface,incleas visual comfort;
- Can be customized lens,different Angle lens,uniform lihgt mixing,suitable for a variety of different heights of wall washer and wall wiper project.
- Color resolution 16Bit,the picture more delicate and smooth,built-in electronic drive with over-temperature overload protection;
LED RGB Spotlight Structure
- Lamp body is small in design volume,light in quality,with compact integration outward appearance design,providing suitable solution for small space buildings;
- UV resistance and salt fog extrucded aluminum lamp body. tempered glass,optical PC lens.
- The color of the product housing can be customized according to requirements.
- The installation structure is reasonable and simple,convenient adjustment angle of lamps.The supporting occlude is designed to solve the glare pollution.
Control
- The linear used standard DMX protocol,multi-pixel or monochrome optional; with the standard control system,can achieve a variety of scene changes; high gray level high refresh frequency,to ensure that the picture is smooth

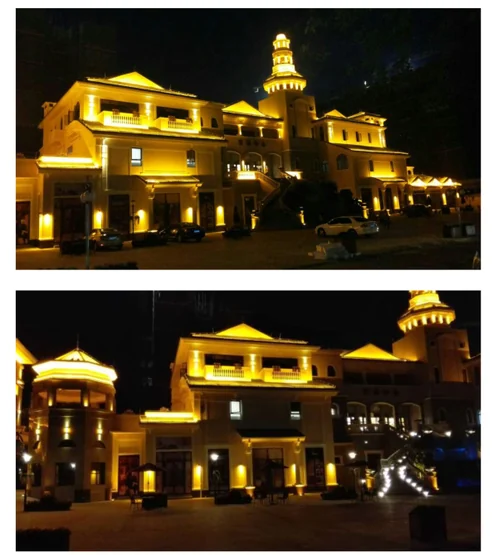

- Led spotlight used for building facade decoration
Who It Is For
- Landscape and garden contractors lighting trees, planting and paths
- Facade contractors needing narrow beam projectors for tall buildings
- Municipal and park projects requiring spike mounted units
- Integrators specifying RDM and DMX512 controllable flood lights
Problems It Solves
- Customised lenses and different beam angles for a range of building heights
- Adjustable bracket design makes aiming simple and repeatable
- UV resistant salt fog resistant extruded aluminium, tempered glass and optical PC lenses
- RDM and standard DMX protocol with high grey level and high refresh rate
Application Scenarios
- Tree and landscape decoration
- Tall building facade projection
- Garden, park and pathway lighting
- Wall washing and wall wiping
Specifications
Technical Parameters
| Rating | IP65 |
|---|---|
| Control | DMX512 |
| Colour | RGB / warm / cool white |
| Body | Extruded aluminium |
Full parameter sheet for this model is supplied on request. Message us on WhatsApp and we will send the datasheet as a PDF.
Materials
| Body | UV and salt fog resistant extruded aluminium |
|---|---|
| Cover | Tempered glass |
| Lens | Optical PC, angle customised |
| Flame rating | V0 |
| Bracket | Adjustable fixing bracket or ground spike |
Manufacturing Process
- Aluminium body machining
- Lens selection and optical assembly
- Driver fitting and wiring
- Tempered glass and gasket sealing
- IP test, aiming test and colour consistency check
Details And Drawings

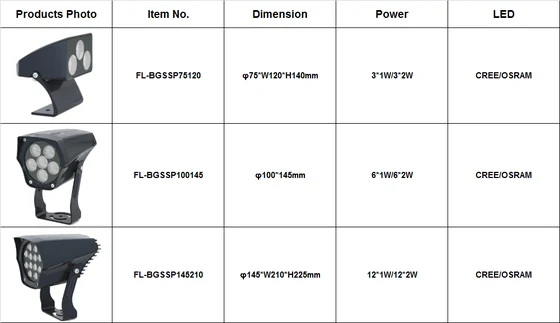

Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| 12W 30W 36W LED Flood Lights | Tree and landscape decoration | DMX512 / TTL | Garden and landscape flood light for wall mounting tree decoration and wall washing |
| 24W 48W LED Spike Light And Projector | Tree and landscape decoration | DMX512 / TTL | Spike mounted projector for planting beds pathways and low level wall washing |
| Cube Series RDM LED Flood Light | Tree and landscape decoration | RDM / DMX512 | Narrow beam RDM flood light specified for tall building projection work |
| Black Gold Steel Series LED RGB Spotlight (this model) | Tree and landscape decoration | DMX512 | Compact RGB spotlight with adjustable bracket for wall and wall wiping projects |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Use Guide
Installing And Commissioning
Choose the lens angle from the mounting distance and target height, aim with the adjustable bracket, then lock the bracket. Use a narrow beam for tall buildings and a wide beam for planting and low walls.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
Quality Control
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Related Products
Other Models Worth Comparing
Spotlight
12W 30W 36W LED Flood Lights
Garden and landscape flood light for wall mounting tree decoration and wall washing
Spotlight
24W 48W LED Spike Light And Projector
Spike mounted projector for planting beds pathways and low level wall washing
Spotlight
Cube Series RDM LED Flood Light
Narrow beam RDM flood light specified for tall building projection work
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminiumCases
Cases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Related Articles
Reading That Helps You Specify
FAQ
Black Gold Steel Series LED RGB Spotlight FAQ
What is the protection rating of the Black Gold Steel Series LED RGB Spotlight?
IP65
Can the length, colour or lens be customised?
Yes. Lamp length or point spacing, housing colour, LED colour and lens angle are all made to the project requirement.
Is a sample available before I place a production order?
Yes. One piece is available for sample checking and samples ship in 3 to 5 days.
How is this fixture controlled?
It runs on the control protocol listed in the parameters above and works with our master and slave controllers, which also support mixed lamp types on one system.
What happens if a unit fails after installation?
Our defective rate is below 0.2 percent. Within the 2 to 5 year warranty we send replacements with your next order, and for a defective batch we repair and resend or agree another solution with you.
Ready To Price This Model
Send quantity, run length and mounting condition and we will quote the Black Gold Steel Series LED RGB Spotlight together with drivers and controllers.
