Cold Chain Logistics Warehouses Built Around Throughput
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide how much product moves per shift and how much cold air leaves with it.
- 7 delivered projects
- 17 equipment lines
What Goes Wrong In Cold Chain Logistics Cold Storage
Dock losses on every movement
Each door cycle admits warm humid air. High-speed roll-up doors at 2.5 m/s with around 30% energy saving limit the exposure; on the Wuhan project 14 of them serve the dock line.
Mixed temperature requirements under one roof
Frozen, chilled and ambient-controlled goods in the same building need separate compartments and separate compressor staging, not one plant averaged across them.
Stock rotation and traceability
FIFO and FEFO control depends on the warehouse system knowing where every pallet is. Our Wuhan facility runs 5,800 automated double-deep pallet positions under WMS control.
Energy consumption at scale
At 50,000 m3 the refrigeration bill dominates operating cost. Compressor staging, defrost scheduling and 400+ logged sensors let the operator see where it goes.
What Howcool Delivers On These Projects
- Multi-temperature chamber layout with independent plant per zone
- Dock design, dock levellers and high-speed door selection
- Automated pallet racking integrated with the building structure
- PLC building control with WMS integration and sensor logging
- Anti-frost-heave floor heating under freezer slabs
- Phased construction so an operating site stays live
Products Used On Cold Chain Logistics Projects
Monoblock Refrigeration System
Compact, all-in-one refrigeration system for small cold storage — fresh and frozen food products.
Hermetic Condensing Unit
Versatile unit with main control board, temperature control and operation board in one convenient package.
Semi-Hermetic Condensing Unit
Copper tube + aluminum fin air-cooled condenser OR high-efficiency shell-tube water-cooled condenser options.
Multi-Compressor Pack
Multiple compressors in parallel sharing discharge, suction, condenser and receiver for larger cooling capacity.
Screw Compressor Parallel Rack
Screw compressor parallel rack — high-capacity, continuous-duty cooling for industrial cold storage and food processing.
Scroll Outdoor Condensing Unit
Outdoor weather-proof condensing unit with Copeland scroll compressors. Plug-and-play installation for small-to-medium cold rooms.
Ammonia (NH₃) Refrigeration System
Industrial NH₃ refrigeration plant. Best efficiency for large cold storage, ice rinks, and food processing >5000 m³.
CO₂ Cascade / Transcritical System
CO₂ (R744) cascade and transcritical systems for ultra-low-temperature applications. Future-proof, GWP=1 refrigerant.
7 Cold Chain Logistics Facilities Built By Howcool
50,000m³ Cold-Chain Logistics — Wuhan Xinpu Fruit
Two-stage 50,000 m³ cold-chain logistics centre for Wuhan Xinpu Fruit — fruit & meat distribution hub.
Cold-Chain Logistics — Seafood 20,000t
20,000-ton seafood refrigeration project. PIR, Freon, PLC control, electric cold storage doors.
Belt & Road Customs-Supervised 5,000-ton Cold Storage
Belt & Road customs logistics port. Phase 1: 5,000 tons. Phase 2: 100,000 tons on 220 hectares.
22,600m³ International Logistics Harbour Cold Storage — Jiangsu
International harbour cold storage for import/export cold-chain.
7,150 m² Cold Chain Cold Room Project
Multi-zone cold-chain cold room with integrated dock loading.
Tianjin Port 5,000-ton Cold Storage
75m × 20m × 10m port cold storage. Insulation panels + doors + refrigeration + remote monitoring.
3,000 m² Cold-Chain Logistics Warehouse
Multi-city cold-chain logistics hub. Food distribution, transit and storage.
Reading For Cold Chain Logistics Buyers
20000 Ton Seafood Cold Storage Enters Final Commissioning
20,000-ton seafood refrigeration project enters final commissioning phase.

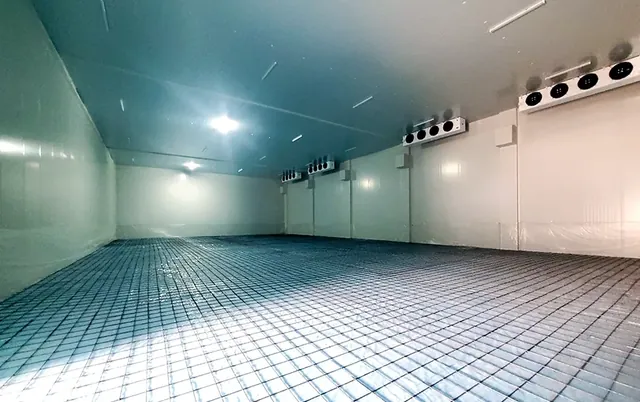

Ground Insulation and Frost Heave Prevention In Low Temperature Cold Storage
Engineering best practices for preventing frost heave and optimising thermal performance.
3000 Square Metre Cold Chain Logistics Warehouse Completed
Multi-city food distribution, transit and storage hub.

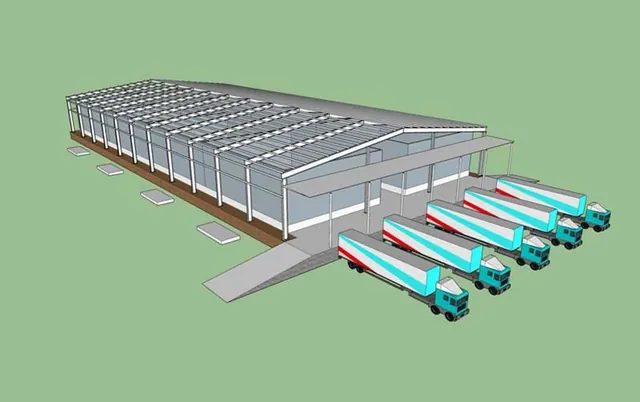

Global Cold Chain Market Outlook and What It Means For Buyers
Market size, key drivers, emerging trends in sustainable refrigeration and smart cold storage.
Cold Chain Logistics Cold Storage Questions
How long does a cold-chain warehouse take to build?
Our 3,000 m2 logistics warehouse was completed in 90 days. The two-stage 50,000 m3 Wuhan project took 90 days for Stage I and 50 days for Stage II.
Can you phase construction so we keep operating?
Yes. Phased handover is standard on expansion projects; the Wuhan client operated throughout Stage II.
Do you integrate with our warehouse management system?
Yes. The PLC building control system can pass door, dock and task data to the client's WMS, as delivered on the Wuhan project.
Discuss A Cold Chain Logistics Facility
Send the product, volume, temperature and site location. We reply within 24 hours with a preliminary design and budget estimate.
