IQF Quick Freezing Systems From 300 to 6000 kg Per Hour
Individually quick frozen product succeeds or fails on freezing speed. Slow freezing grows large ice crystals, ruptures cell walls and shows up as drip loss the moment the customer thaws the bag.
- 5 products
- 300 to 6000 kg/h freezing lines
All 5 IQF Quick Freezing System Products
Freezing capacity that lags the processing line turns into queued product, temperature abuse before the tunnel, and a quality complaint downstream.
IQF Self-Stacking Spiral Freezer
Vertical cold airflow for individual freezing. Ice-crystal formation area ensures even freezing.
IQF Impingement Freezer
Dense high-speed airflow hits top & bottom of product. Penetrates air layer for rapid freezing.
IQF Tunnel Freezer
Large freezing area. Individual freezing, block freezing, plate freezing.

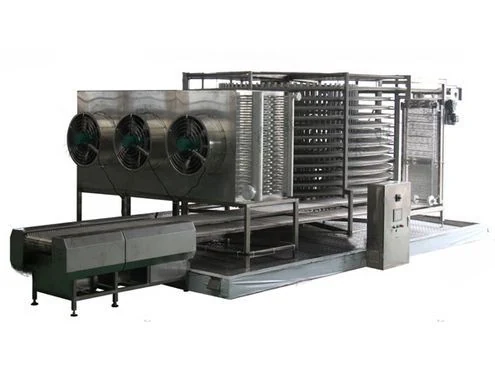

IQF Spiral Freezer
European technology + Howcool advanced concepts. Spiral-rotating conveyor belt.

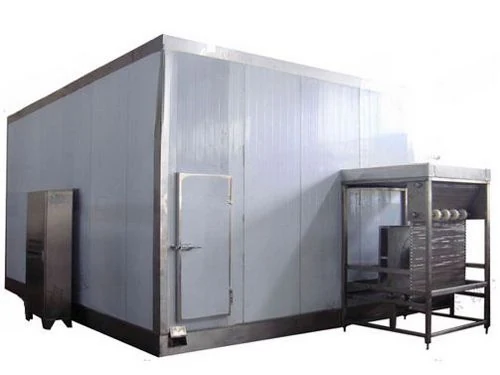

IQF Fluidized Tunnel Freezer
Cutting-edge European design. Four-dimensional airflow — products pass through in a suspended state.
Typical Buyers Of This Equipment
- Seafood, meat and poultry processors
- Fruit and vegetable packers with seasonal peaks
- Bakery and ready-meal producers
- Plants matching freezing capacity to an existing line speed
Drip loss and texture damage
High-velocity impingement and fluidised airflow freeze individual pieces quickly enough to keep ice crystals small.
Floor space
Self-stacking and spiral freezers put a long belt into a small footprint — 500 to 4000 kg/h and 1000 to 6000 kg/h respectively.
Line balance
Tunnel freezers from 300 to 5000 kg/h sized to the throughput of the line feeding them.
Where This Equipment Is Installed
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Export and International EPC
An exported cold store has to survive the climate it lands in, the power supply it is given, and the customs process it passes...
Projects Using This Equipment
2,000-ton Food Cold Storage Project
Hanbell screw parallel unit + PLC automation. 100mm PU panels with 40±2 kg/m³ density.
49,500m³ Food Cold Storage Solution
Large-scale multi-zone food cold storage. Turn-key design-build.
Uzbekistan — Cold Chain Logistics Facility
Large-scale cold-chain logistics facility — Belt & Road Initiative partner.
IQF Quick Freezing System Questions
Which IQF freezer suits my product?
Loose, uniform products such as peas, berries and shrimp suit fluidised tunnels. Flat items such as fillets and patties suit impingement. Mixed or delicate products and high hourly volumes usually go to spiral or self-stacking spiral freezers.
What capacity range is available?
300 to 5000 kg/h on tunnel freezers, 500 to 4000 kg/h on self-stacking spirals and 1000 to 6000 kg/h on spiral freezers. All models are sized to the customer's line.
Which refrigerant is used on IQF systems?
Ammonia (NH3), R404A or CO2 cascade depending on plant size and local refrigerant rules.
Are the freezers designed for hygienic washdown?
The spiral freezer range uses EHEDG-compliant design for food-contact hygiene and cleaning.
Get A Selection For Your Room
Send dimensions, temperature and product type and we will come back with the model, the capacity and the price.
