Multi-Compressor Pack
Multiple compressors in parallel sharing discharge, suction, condenser and receiver for larger cooling capacity.
- 50HP – 500HP
- R404A / R507A / NH₃ / CO₂
What The Multi-Compressor Pack Does
Howcool Multi-Compressor Parallel Rack Systems combine 2-6 semi-hermetic compressors on a common suction/discharge manifold, enabling capacity modulation from 15% to 100% of rated load. As cold-room demand changes through the day, compressors cycle on/off (or run in partial-load mode) to match it — delivering 30-40% energy savings over single-compressor setups.
The gold standard for large logistics centres, food processing plants, and any facility with variable or multi-temperature loads. Compatible with Bitzer / Bock / Frascold screw and reciprocating compressors. Single-rack capacities from 30HP to 300HP. Economizer and EVI (Enhanced Vapor Injection) available for ultra-low temperature service.
Parallel connection of multiple compressors to provide a larger cooling capacity. All compressors share the same discharge pipe, suction pipe, condenser and liquid receiver, ensuring efficient operation and stable performance. Ideal for large-scale cold-chain logistics warehouses.
Why Buyers Choose This Model
Energy Savings 30-40%
Part-load modulation matches compressor capacity to actual demand. Reduces short-cycling and motor wear.
Redundancy & Uptime
If one compressor fails, remaining compressors continue running at reduced capacity — cold-room keeps running during repair.
Scalable 30-300HP
2-6 compressor racks, screw or reciprocating. Suitable for 5,000 m² to 50,000 m² cold-storage facilities.
Smart Sequencing Control
PLC-based lead/lag rotation equalizes compressor runtime. Remote monitoring via Ethernet/Modbus.
Refrigeration Unit Failure Modes
Capacity that collapses in summer
High-ambient compressor selection with condenser heat rejection oversized for the site climate, not for a 35 degree lab rating.
Unplanned downtime
N+1 standby staging on parallel racks and multi-compressor packs keeps the room cold while a compressor is serviced.
Energy bills nobody budgeted
Multi-compressor and screw racks stage capacity to the real load instead of running one large machine at part load.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Power Rating | 50HP – 500HP |
|---|---|
| Number of Compressors | 2 / 3 / 4 / 6 / 8 in parallel |
| Capacity Modulation | 12.5% / 25% / 50% / 75% / 100% |
| Discharge Manifold | Common header with check valves |
| Suction Manifold | Common header with oil equalising |
| Liquid Receiver | Vertical, 100-500 L |
| Control Cabinet | PLC + HMI touchscreen |
| Footprint | 2.5 - 8 m² |
| Configuration | 2-8 compressors in parallel |
| Compressor Brand | Bitzer / Hanbell / Frascold |
| Control | PLC sequencing + capacity modulation |
|---|---|
| Applications | Large cold-chain logistics / food processing |
| Refrigerant | R404A / R507A / NH₃ / CO₂ |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

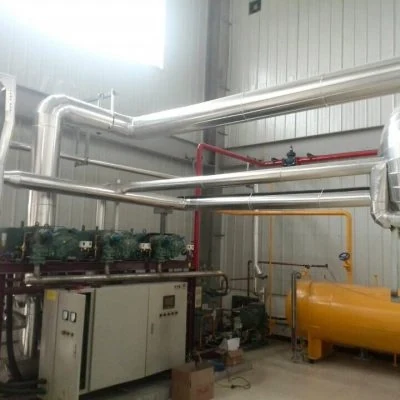

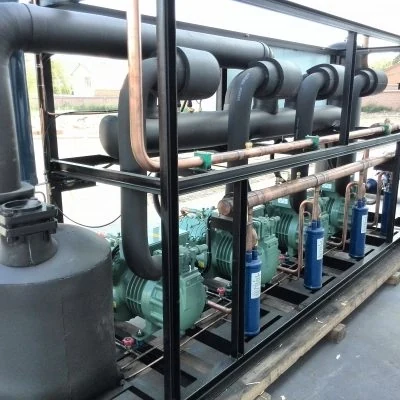

Multi-Compressor Pack In Production And On Site
Sectors Using This Equipment
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Fruit and Vegetable
Fruit keeps respiring after harvest. Temperature slows it down; controlled atmosphere nearly stops it. The difference between the...
Cold Chain Logistics
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide...
Multi-Compressor Pack Questions
What capacity range does the Multi-Compressor Pack cover?
The standard range is 50HP – 500HP. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
Which compressor brands are used?
Bitzer / Hanbell / Frascold. The brand can be fixed at order if your maintenance team standardises on one.
What is the production lead time?
20-30 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
Monoblock Refrigeration System
Compact, all-in-one refrigeration system for small cold storage — fresh and frozen food products.
Hermetic Condensing Unit
Versatile unit with main control board, temperature control and operation board in one convenient package.
Semi-Hermetic Condensing Unit
Copper tube + aluminum fin air-cooled condenser OR high-efficiency shell-tube water-cooled condenser options.
Screw Compressor Parallel Rack
Screw compressor parallel rack — high-capacity, continuous-duty cooling for industrial cold storage and food processing.
Facilities Built With This Equipment Family
2,000-ton Food Cold Storage Project
Hanbell screw parallel unit + PLC automation. 100mm PU panels with 40±2 kg/m³ density.
49,500m³ Food Cold Storage Solution
Large-scale multi-zone food cold storage. Turn-key design-build.
1,643 m² Controlled-Atmosphere Cold Storage
1,643 m²/5,749 m³ CA cold storage with 6 partitioned rooms and Hanbell screw parallel refrigeration system.
Request A Quotation For The Multi-Compressor Pack
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
