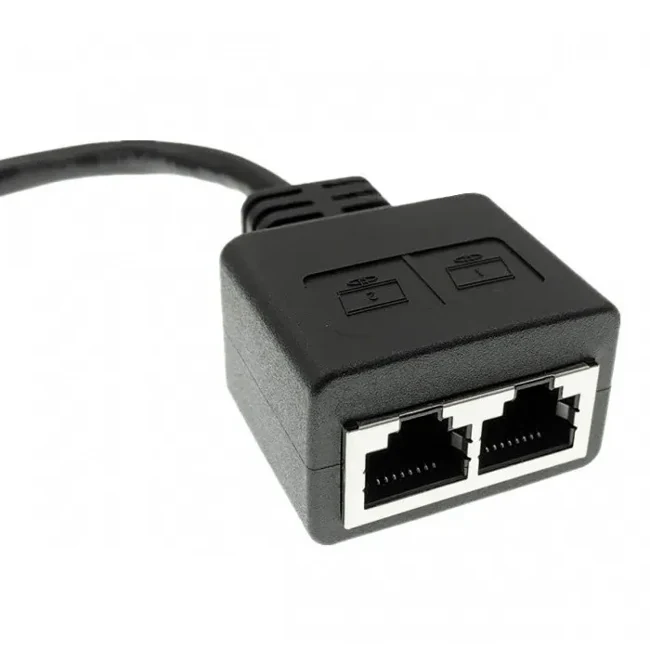

RJ45 1 Male To 2 Female Network Splitter Harness - Garfour view 3

RJ45 1 Male To 2 Female Network Splitter Harness - Garfour view 4

RJ45 1 Male To 2 Female Network Splitter Harness - Garfour view 5

Communication Wiring Harness

RJ45 1 Male To 2 Female Network Splitter Harness

A moulded splitter harness that breaks one RJ45 male into two female ports. It suits installations where a single wall drop has to serve two devices and pulling a second cable through a finished ceiling is not an option.

One drop serves two device ports without opening the ceiling
Moulded Y body holds its shape and resists cable pull
500mm standard length keeps the split close to the equipment
Consistent factory termination instead of a field-punched adapter

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

A finished install has no spare drop for a second device
Cheap adapters lose contact and drop the link intermittently
Field-made splits are inconsistent and untested

Who It Is For

Installation contractors
Facility and IT maintenance teams
Equipment integrators adding a second network device

Application Scenarios

Shared wall drops in offices and classrooms
Machine panels with two Ethernet devices and one incoming line
Temporary installs where cabling cannot be added

Technical Features

One RJ45 male to two RJ45 female
Moulded Y transition
500mm standard length

Specifications

Connector	RJ45 1 male to 2 female
Length	500mm
Construction	Moulded
Product Certificates	CE, RoHS

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Network switch

A passive splitter needs no power, while a switch is required when both ports must run at once on the same network

Pulling a second cable

A splitter avoids opening a finished ceiling or wall

Use Guide

Check that your installation pin usage supports a passive split before deploying
Keep the split close to the devices and the long run on the single side
Confirm both ports link at the expected speed after install

Other Assemblies In Communication Wiring Harness

GX16 M12 6 Pin Waterproof Connector Cable Assembly - Garfour view 1

Communication Wiring Harness GX16 M12 6 Pin Waterproof Connector Cable AssemblyIP-rated 6-pin circular power and signal assembly built on GX16 M12 DJ7041-1.5-21 connectors View Specifications

RJ11 6P4C Flat Telephone Cable Assembly - Garfour view 1

Communication Wiring Harness RJ11 6P4C Flat Telephone Cable AssemblyFlat 6P4C telephone cord assemblies for communication equipment and telephone cords View Specifications

TAE F To RJ45 Cat5e Adapter Harness For German Telephone Plugs - Garfour view 1

Communication Wiring Harness TAE F To RJ45 Cat5e Adapter Harness For German Telephone PlugsTAE-F 8P2C to RJ45 male network adapter harness for German telephone sockets View Specifications

Cat5e RJ45 Male To Female Extension Harness - Garfour view 1

Communication Wiring Harness Cat5e RJ45 Male To Female Extension HarnessMoulded RJ45 male to female network extension harness View Specifications

Guides That Cover This Build

Material Guide

Choosing Between UL2464 UL2514 And UL1007 Cable

Three cable constructions that cover most harness work, and how to tell which one your application needs.

Comparison Article

Overmoulded Or Taped Breakouts On Harness Assemblies

Where a taped loom is the right answer, where it lets water in, and what overmoulding changes.

RJ45 1 Male To 2 Female Network Splitter Harness FAQ

Is this an active switch?

No. It is a passive moulded splitter harness with no electronics.

Can the two female legs be different lengths?

Yes. Send the leg lengths you need with your order quantity.

What lead time should we plan for on RJ45 1 Male To 2 Female Network Splitter Harness?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is RJ45 1 Male To 2 Female Network Splitter Harness packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Do you charge for samples of RJ45 1 Male To 2 Female Network Splitter Harness?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Get A Price On RJ45 1 Male To 2 Female Network Splitter Harness

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
