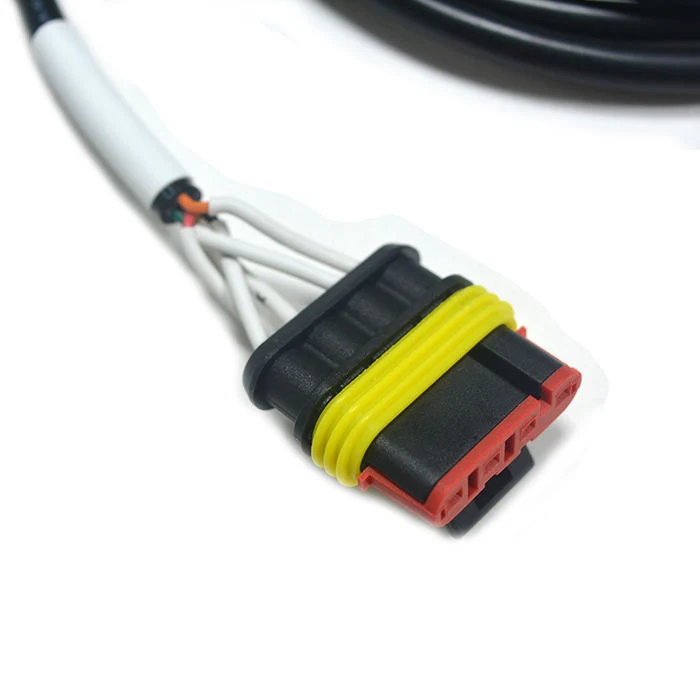

GX16 M12 6 Pin Waterproof Connector Cable Assembly - Garfour view 2

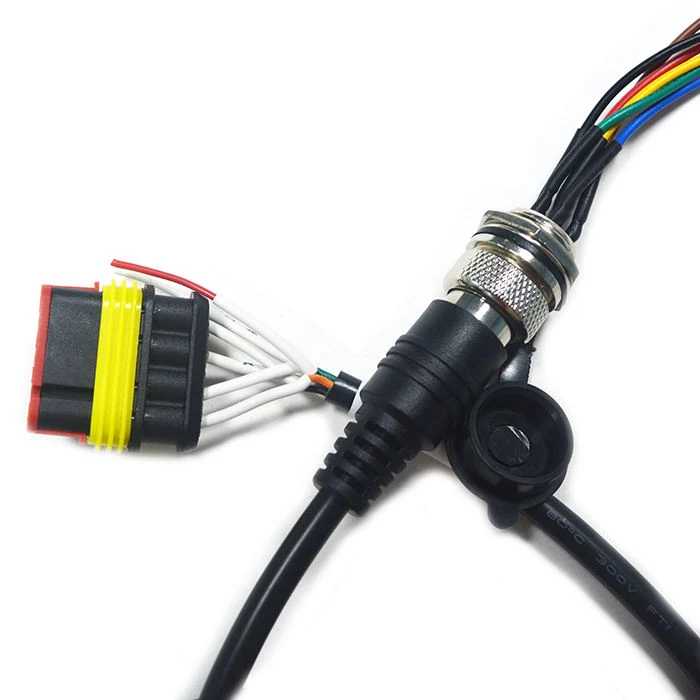

GX16 M12 6 Pin Waterproof Connector Cable Assembly - Garfour view 3

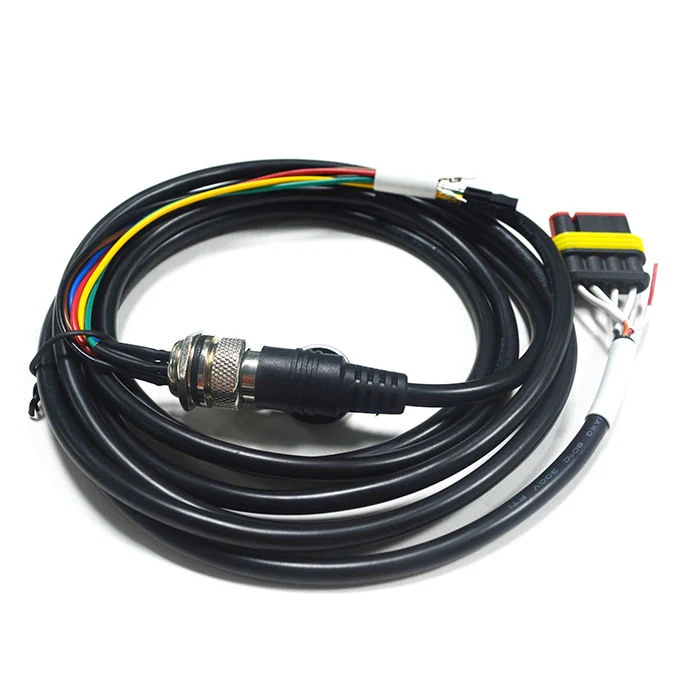

GX16 M12 6 Pin Waterproof Connector Cable Assembly - Garfour view 4

GX16 M12 6 Pin Waterproof Connector Cable Assembly - Garfour view 5

Communication Wiring Harness

GX16 M12 6 Pin Waterproof Connector Cable Assembly

A 6-pin circular waterproof cable assembly built on GX16 and M12 shells with the DJ7041-1.5-21 automotive housing. It carries charging current and communication signals on the same connector body, so equipment that lives outdoors or gets washed down keeps a sealed interface instead of an exposed terminal block.

Sealed 6-pin interface keeps moisture and dust off the contacts on outdoor and wash-down equipment
UL2464 cable with 20AWG conductors carries charging current and low-voltage signal in one run
2500mm standard length reaches between a cabinet and a remote device without a splice
Screw-lock circular shells stay mated under vibration, unlike push-fit rectangular housings

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Exposed terminal strips corrode in humid or wash-down environments
Separate power and signal cables double the panel cut-outs and the assembly time
Field-crimped circular connectors are inconsistent and fail continuity checks

Who It Is For

Energy storage integrators specifying sealed charge connections
Medical device builders who need wash-down tolerant interconnects
Robotics and intelligent equipment OEMs

Application Scenarios

Battery and energy storage cabinets where the charge port sits outside the enclosure
Medical carts and instruments that get wiped down between uses
Mobile robots and AGVs where the connector is unplugged daily
Outdoor electronics needing power and data on a single mating cycle

Technical Features

GX16 M12 and DJ7041-1.5-21 connector options on the same cable
UL2464 jacketed multi-core cable
20AWG conductors
Six circuits in one circular shell

Specifications

Connector	GX16, M12, DJ7041-1.5-21
Cable	UL2464
Wire Gauge	20AWG
Length	2500mm
Circuits	6 pin female
MOQ	100 PCS
Sample Lead Time	5 days
Bulk Lead Time	21 days
Product Certificates	UL, RoHS, REACH

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Open terminal blocks

A sealed circular shell survives humidity and wash-down where a screw terminal corrodes

Separate power and data cables

One 6-pin assembly replaces two cable runs and two panel cut-outs

Use Guide

Check the keyway orientation before pushing the shells together, then tighten the coupling nut by hand only
Support the cable within 200mm of the connector so the strain relief is not carrying the cable weight
Do not unmate the connector under load on charging circuits

Other Assemblies In Communication Wiring Harness

RJ11 6P4C Flat Telephone Cable Assembly - Garfour view 1

Communication Wiring Harness RJ11 6P4C Flat Telephone Cable AssemblyFlat 6P4C telephone cord assemblies for communication equipment and telephone cords View Specifications

TAE F To RJ45 Cat5e Adapter Harness For German Telephone Plugs - Garfour view 1

Communication Wiring Harness TAE F To RJ45 Cat5e Adapter Harness For German Telephone PlugsTAE-F 8P2C to RJ45 male network adapter harness for German telephone sockets View Specifications

Cat5e RJ45 Male To Female Extension Harness - Garfour view 1

Communication Wiring Harness Cat5e RJ45 Male To Female Extension HarnessMoulded RJ45 male to female network extension harness View Specifications

RJ45 1 Male To 2 Female Network Splitter Harness - Garfour view 1

Communication Wiring Harness RJ45 1 Male To 2 Female Network Splitter HarnessMoulded one-to-two RJ45 splitter harness for shared network drops View Specifications

Guides That Cover This Build

Material Guide

Choosing Between UL2464 UL2514 And UL1007 Cable

Three cable constructions that cover most harness work, and how to tell which one your application needs.

Comparison Article

Overmoulded Or Taped Breakouts On Harness Assemblies

Where a taped loom is the right answer, where it lets water in, and what overmoulding changes.

GX16 M12 6 Pin Waterproof Connector Cable Assembly FAQ

Can the length be changed from 2500mm?

Yes. 2500mm is our standard build. Send the length you need with the drawing or sample and we quote the custom cut.

Is the assembly sealed when unmated?

The seal is rated when the connector is mated and the coupling nut is tightened. Use a protective cap on the panel side if the port sits open outdoors.

Do you charge for samples of GX16 M12 6 Pin Waterproof Connector Cable Assembly?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Is a sample confirmed before mass production of GX16 M12 6 Pin Waterproof Connector Cable Assembly?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Can GX16 M12 6 Pin Waterproof Connector Cable Assembly be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.
