Kenter Shackle
The kenter shackle is the connecting link used to join lengths of anchor and mooring chain. It is made of two separate halves locked together by a centre chock and secure taper pin, forged from CM490 or CM690 high-tensile alloy…
What This Product Is For
The kenter shackle is the connecting link used to join lengths of anchor and mooring chain. It is made of two separate halves locked together by a centre chock and secure taper pin, forged from CM490 or CM690 high-tensile alloy steel in grade U2 and U3, so a chain run can be made up or repaired without welding.
Key Benefits
- Two-half design lets a chain run be joined or repaired without cutting or welding
- Centre chock and taper pin lock the halves so the joint holds under mooring load
- CM490 and CM690 materials in grade U2 and U3 to match the chain it joins
- The standard joining method across the marine industry, so crews already know the fitting
Problems It Solves
- Chain repair that would otherwise need cutting and rewelding
- Joining fittings of the wrong grade for the chain in the run
- Joints coming loose under repeated mooring loads
Application Scenarios
- Joining lengths of anchor chain
- Repairing marine chains in service
- Securing mooring system chain runs
- Chain shot assembly during fit-out
Who It Is For
- Shipyards making up anchor chain
- Vessel operators repairing chain in service
- Mooring system contractors
Technical Features
- Two separate halves joined by a centre chock and secure taper pin
- Materials CM490 and CM690
- Grades U2 and U3
- High-tensile alloy steel with precise forging
Specification Table
Values below are taken from our own product data. Where a figure is not published for this item, we confirm it against your order rather than estimating it.
| Grade | U2/U3 Kenter Shackle |
|---|
Customization Options
- Grade U2 or U3 to match the chain
- CM490 or CM690 material
- Size matched to the anchor chain diameter
Quality Control
- Forging controlled through production
- Taper pin and chock fit checked at assembly
- Grade and material verified against the chain it will join

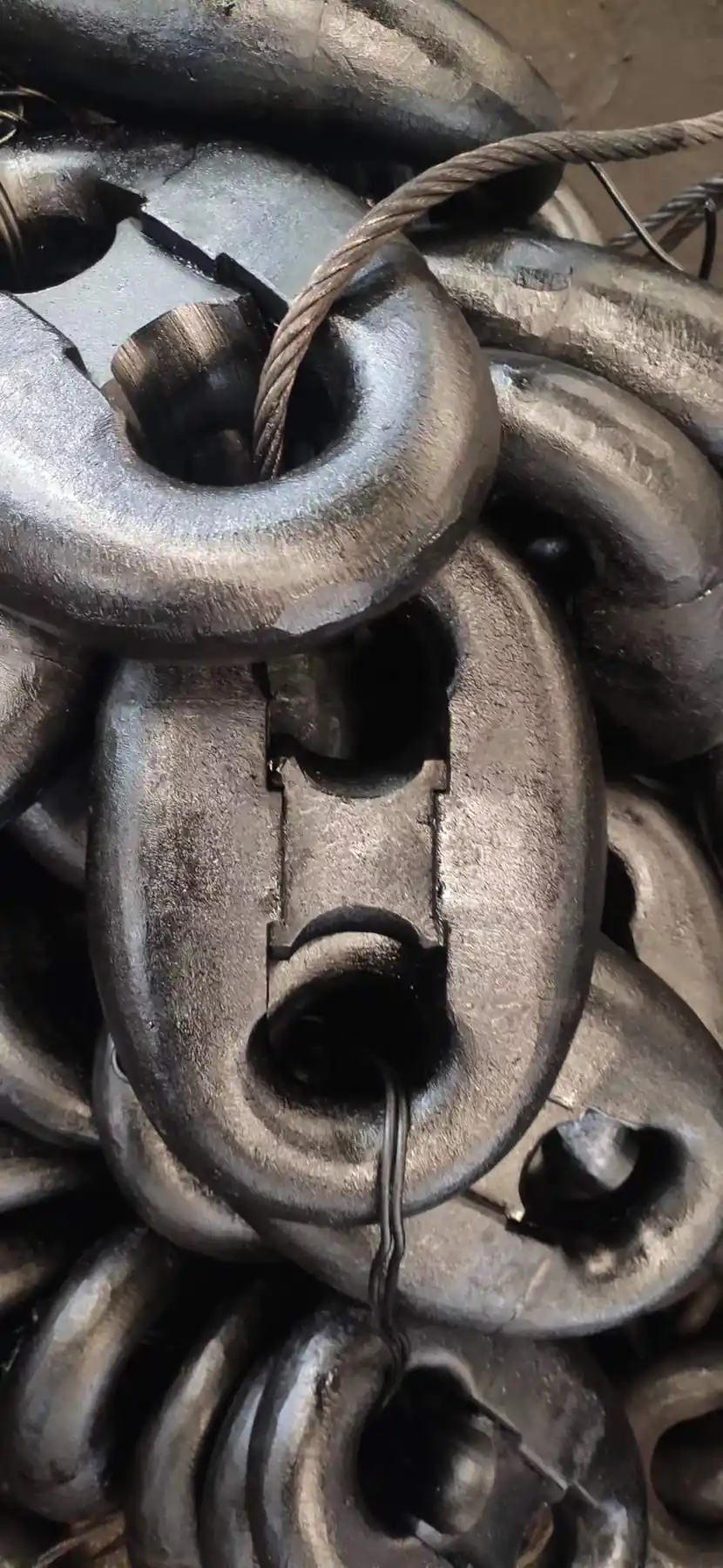

Photographs Of This Product
How It Compares With The Alternatives
Compared with D type joining shackle (lugged)
Both join chain lengths, the kenter uses two halves with a taper pin while the lugged type uses a lugged shackle body
Compared with Swivel forerunner
The kenter joins chain to chain, the forerunner connects chain to anchor and allows rotation
How To Use And Maintain It
- Match the kenter grade to the chain grade in the run
- Drive the taper pin fully home and secure it before loading
- Check the joint at every chain ranging or inspection
- Replace the complete shackle rather than reusing a worn taper pin
What We Need From You To Quote
- Size or diameter, and the grade if it is specified
- Quantity and packing format
- Surface finish for the environment it works in
- Classification society, if a certificate is required
- Destination port for freight
Kenter Shackle FAQ
How does a kenter shackle work?
It comprises two separate halves joined with a centre chock and a secure taper pin that locks the halves together.
Which grades do you supply?
Grade U2 and U3.
What material is used?
CM490 and CM690 high-tensile alloy steel, precision forged.
What is it used for?
Connecting anchor chains, repairing marine chains and securing mooring systems.
How do I order the correct size?
Give us the chain diameter and grade and we will supply the matching kenter shackle.
