Wind Jets
Wind Blower Spray Nozzle

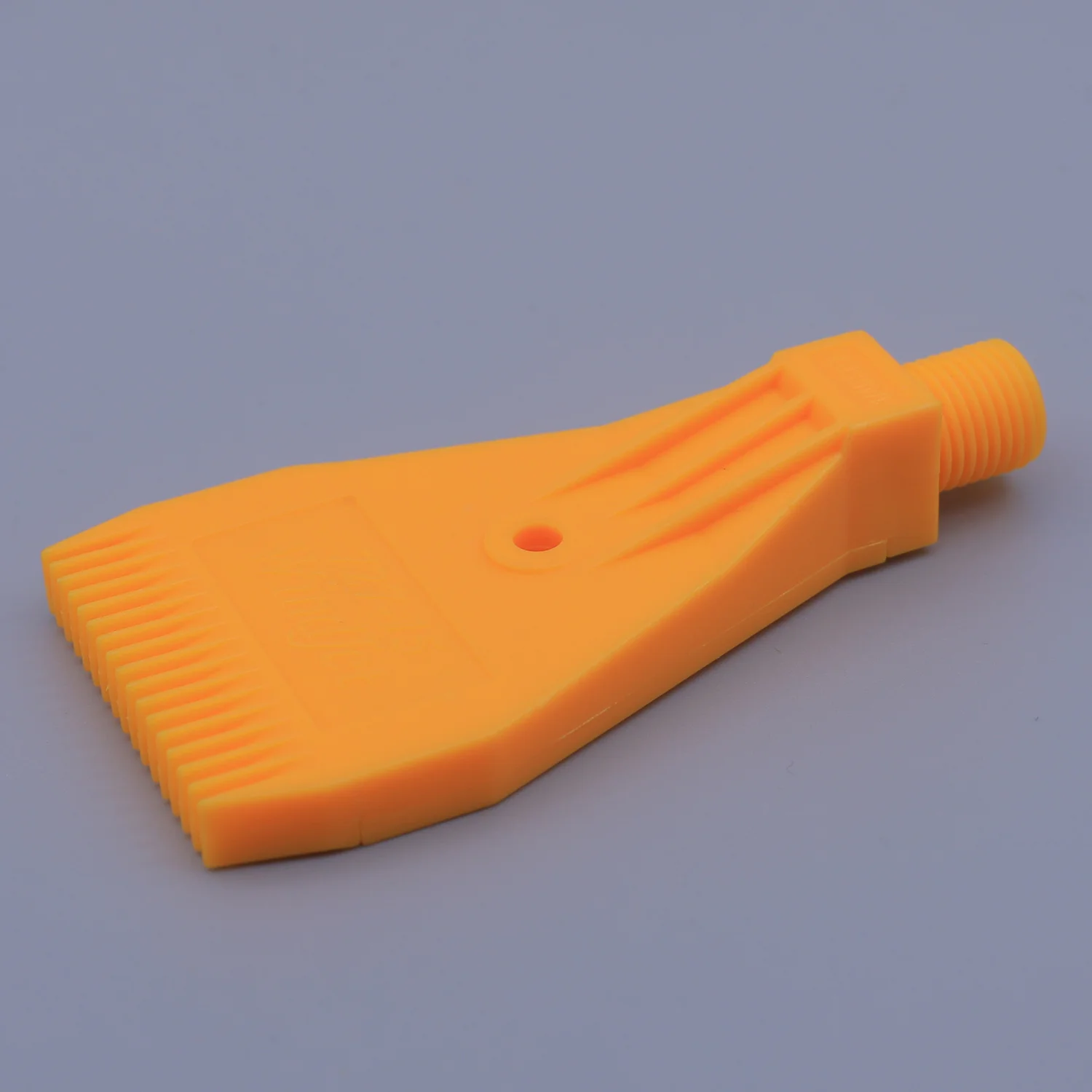

A wind blower spray nozzle directs a focused stream of air to break up and disperse a liquid spray pattern, which is required when a fine mist or even distribution of water or cleaning solution must be delivered across a surface without overspray or pooling. This CNSS wind blower spray nozzle is designed for integration into air-assisted atomizing systems, where compressed air is used to enhance droplet breakup and coverage. The nozzle body is made from ABS plastic, suitable for low to moderate pressure air and water service, and features a 1/4 inch BSPT female thread for connection to standard fittings.
| Model NO | F727-F |
|---|---|
| Material | ABS |
| Thread size | 1/4″ BSPT female |
| Color | Yellow or customizable |
Dimensions and materials outside this table are confirmed against your duty sheet before quotation.
Key Benefits
What This Nozzle Gives You
- ABS body provides lightweight, corrosion-resistant performance in low pressure air and water service
- 1/4 inch BSPT female thread allows direct connection to standard air and liquid lines without adapters
- Yellow color improves visibility in industrial environments, reducing loss or misplacement
- Custom color option available for branding or system identification
- Flat bristled tip design helps guide air and liquid flow for consistent spray pattern
- Designed for use in air atomizing systems where fine mist coverage is needed
Application Scenarios
Where It Is Installed
- Air-assisted cleaning systems where a fine mist is needed to clean parts without water pooling
- Surface treatment lines requiring even distribution of rinse or coating fluid with minimal water use
- Greenhouse cooling systems using air-assisted fogging to maintain humidity without wetting surfaces
- Livestock barns where a controlled mist is used to cool animals without overspray on bedding
- Outdoor fog systems where air flow helps disperse droplets over a wider area
Who It Is For
Buyers Who Specify It
- Maintenance teams upgrading air-assisted spray systems in washing or rinsing lines
- OEM machine builders integrating air atomizing nozzles into new equipment designs
- Installers of fog and mist cooling systems for greenhouses or animal housing
- Facility managers seeking low-cost, lightweight nozzles for temporary or low-duty applications
- Process engineers specifying air-assisted atomizing components for low-pressure systems
Problems It Solves
What It Fixes on the Line
- Uneven spray patterns caused by poor air-liquid mixing in standard nozzles
- Water pooling on surfaces due to lack of air assistance in mist delivery
- High water usage in systems that rely on gravity or pressure alone
- Difficulty in achieving consistent droplet size without complex atomizing equipment
- Lack of visibility in busy environments due to standard gray or black nozzle color
Technical Features
How It Is Built
- One piece ABS body with integrated air and liquid flow path
- Flat bristled tip designed to direct and stabilize the air stream
- 1/4 inch BSPT female thread for direct connection to standard fittings
- Ribbed edge on the nozzle body for improved grip during installation
- No internal moving parts, reducing wear and maintenance
- Top connector allows for easy attachment to air supply lines
Materials
Body Materials and Where Each One Suits
- ABS plastic for low to moderate pressure air and water service
- Suitable for non-corrosive liquids and ambient temperature environments
Manufacturing Process
How the Part Is Made
- Material selection based on the intended air and liquid service conditions
- Molding of the ABS body and integration of the air and liquid flow channels
- Inspection of thread accuracy and tip geometry
- Packaging for protection during transit
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be made to drawing
- OEM orders accepted including customer marking
- Color can be customized upon request
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it does not direct air to break up liquid into a fine mist like a wind blower nozzle |
|---|---|
| Hollow cone nozzle | A hollow cone delivers a ring-shaped spray ideal for gas scrubbing, but it lacks the air-assisted atomizing function of a wind blower nozzle |
| Air atomizing nozzle with metal body | Metal-bodied air atomizing nozzles handle higher pressures and temperatures, but the ABS version here is lighter and more cost-effective for low-duty applications |
| Standard spray nozzle without air assist | A standard nozzle relies on liquid pressure alone, resulting in larger droplets and less even distribution compared to the air-assisted atomization of this wind blower nozzle |
Use Guide
Fitting and Running It
- Confirm the air pressure and liquid flow rate before selecting the nozzle for your system
- Ensure the 1/4 inch BSPT female thread matches the existing fitting on your line
- Align the nozzle so the flat bristled tip faces the target surface for consistent spray direction
- Use the customizable color to identify nozzles in multi-unit systems
- Inspect the tip for blockage if spray pattern becomes uneven
- Replace the nozzle if the ABS body shows signs of deformation under pressure
Questions Buyers Ask
Wind Blower Spray Nozzle Questions
What is the material and thread size of the wind blower spray nozzle?
The wind blower spray nozzle is made from ABS plastic with a 1/4 inch BSPT female thread. Dimensions and materials are confirmed against the customer's drawing or duty sheet.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days for the wind blower spray nozzle.
Do you accept OEM orders and customization?
Yes. OEM orders are accepted, including custom color options and modifications to the nozzle body for the wind blower spray nozzle.
What is the quality guarantee for this product?
A 3 month quality guarantee is given on the wind blower spray nozzle. Send us the nozzle photo and service conditions by email for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email for confirmation on the wind blower spray nozzle.
Is this nozzle suitable for high pressure systems?
The wind blower spray nozzle is designed for low to moderate pressure air and water service. Confirm the operating pressure with the duty sheet before use.
Can the color be changed?
Yes. The standard color is yellow, but the wind blower spray nozzle can be customized to other colors upon request.
