Wide Angle Air Blower

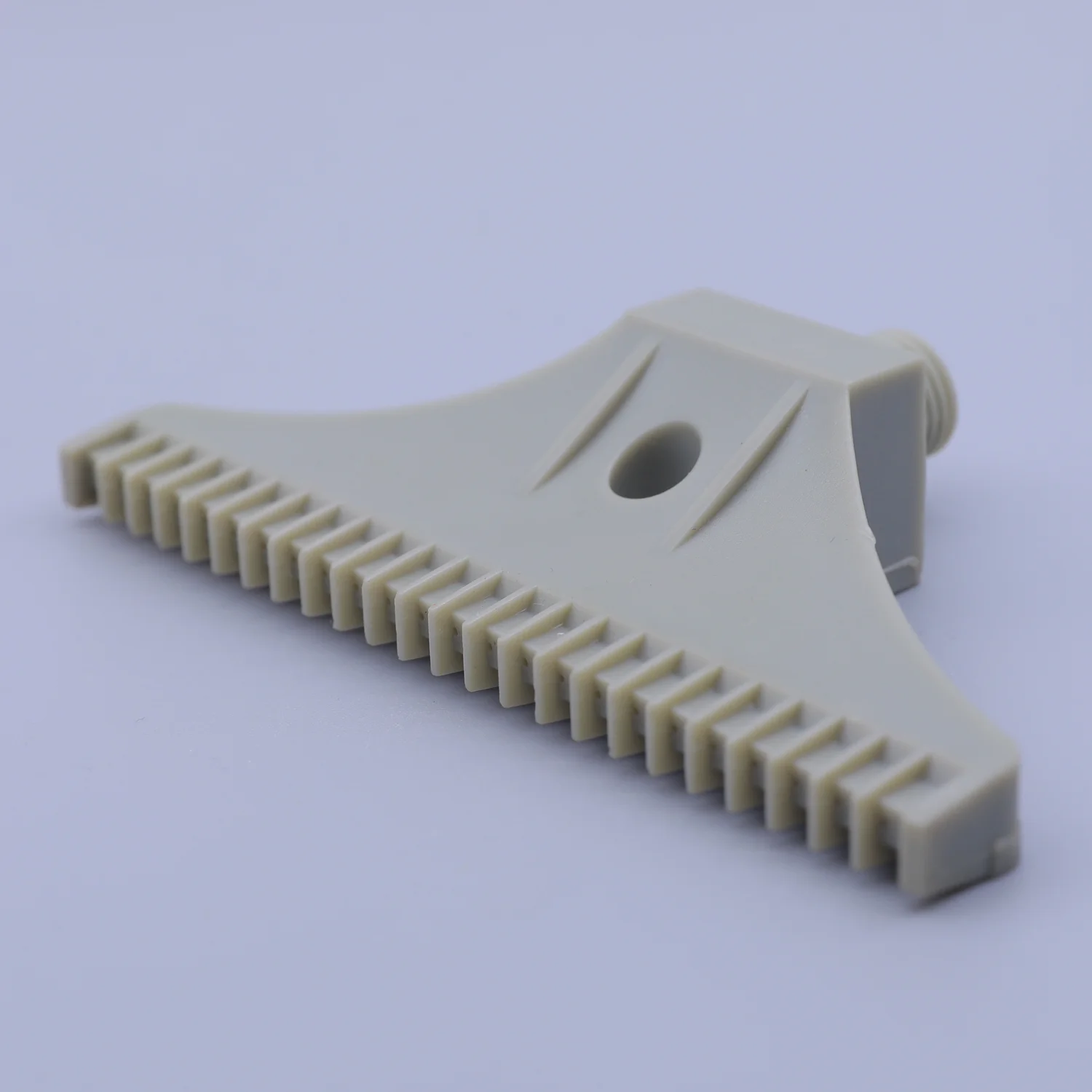

A wide angle air blower directs a broad curtain of air across a moving surface, which is what you need when a conveyor belt, a sheet of paper, or a web of fabric must be dried, cleaned, or deflected without leaving dry or overblown zones. This CNSS wide angle air blower has a 110mm blowing area and is made from ABS plastic, suitable for low to moderate pressure air delivery in clean or mildly abrasive environments.
| Material | ABS |
|---|---|
| Blowing Area | 110mm wide |
Dimensions and materials outside this table are confirmed against your duty sheet before quotation.
Key Benefits
What This Nozzle Gives You
- 110mm blowing area provides even air coverage across a wide target width
- ABS body resists moisture and minor impacts in dry or lightly wet environments
- Comb-like edge design helps direct airflow uniformly across the surface
- Cylindrical connector allows for easy integration into existing air supply lines
- Lightweight construction reduces mounting load on support structures
- Free trial samples available to verify coverage pattern before full deployment
Application Scenarios
Where It Is Installed
- Drying a continuous paper web after a coating or printing pass where edge-to-edge air coverage is critical
- Cleaning debris from a conveyor belt in a packaging or textile line without damaging the product
- Deflecting a moving web of material through a machine zone using a non-contact air curtain
- Supporting a low pressure air system in a cleanroom or lab where plastic components are preferred
- Integrating into a parts handling line where a broad, gentle air stream is needed to move lightweight components
Who It Is For
Buyers Who Specify It
- Maintenance engineers replacing worn or ineffective air blowers on a paper or web handling line
- Machine builders specifying air nozzles for a new conveyor or drying system
- Process engineers optimizing air distribution in a cleaning or drying station
- OEMs integrating air blowers into equipment with space or weight constraints
- Facility managers sourcing low cost, reliable air nozzles for routine maintenance tasks
Problems It Solves
What It Fixes on the Line
- Uneven air coverage that leaves dry spots or overblown areas on a moving web
- Frequent nozzle failure due to brittle or non-impact-resistant materials
- High mounting weight from metal blowers that strain support brackets
- Incompatibility with existing air fittings due to non-standard connectors
- Lack of trial units to verify airflow pattern before placing a bulk order
Technical Features
How It Is Built
- ABS body provides resistance to moisture and minor mechanical stress
- Comb-like edge geometry ensures even distribution across the 110mm blowing area
- Cylindrical connector allows direct attachment to standard air hoses or fittings
- One piece construction with no internal parts to fail or loosen
- Designed for low to moderate pressure air systems, not high velocity or high pressure
- No internal filter or strainer; suitable only for clean, dry air supply
Materials
Body Materials and Where Each One Suits
- ABS plastic for use in dry or mildly damp environments with low mechanical stress
Manufacturing Process
How the Part Is Made
- Material selection based on the air pressure and environmental conditions
- Molding of the ABS body and comb-like edge
- Inspection of the blowing area and connector alignment
- Packaging in protective wrapping
- Transportation with handling precautions to avoid plastic deformation
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Narrow jet air nozzle | A narrow jet delivers high velocity in a small area, suitable for spot cleaning, but lacks the wide coverage needed for continuous web handling |
|---|---|
| Metal air blower | A metal blower offers higher durability under high pressure, but ABS is lighter and sufficient for low to moderate pressure applications |
| Air knife | An air knife provides a continuous sheet of air across a surface, but requires a longer mounting frame and is not suitable for compact installations |
| Spiral air nozzle | A spiral nozzle is designed for high flow and solids handling, but its circular pattern does not match the linear coverage of a wide angle blower |
Use Guide
Fitting and Running It
- Confirm the target width and required air pressure before selecting the blower
- Ensure the air supply is clean and dry to prevent clogging or damage to the ABS body
- Align the blower so the 110mm blowing area covers the full width of the moving surface
- Check the connector size and thread standard to match existing air lines
- Avoid high pressure or high temperature air sources that may warp the ABS body
- Inspect the comb-like edge for debris after prolonged use
Questions Buyers Ask
Wide Angle Air Blower Questions
What is the blowing area of this air blower?
The wide angle air blower has a 110mm blowing area. This dimension is confirmed on enquiry and is designed for even coverage across a broad surface.
What material is used and is it suitable for my application?
The wide angle air blower is made from ABS plastic. It is suitable for low to moderate pressure, clean air applications in dry or mildly wet environments.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and small volume production?
Yes. Small volume orders are accepted, and standard or non-standard parts can be made to your drawing under an OEM order.
What is the quality guarantee for this product?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
Is this blower suitable for high pressure air systems?
No. The wide angle air blower is designed for low to moderate pressure air systems. It is not rated for high pressure or high temperature applications.
