Air Spray Nozzle

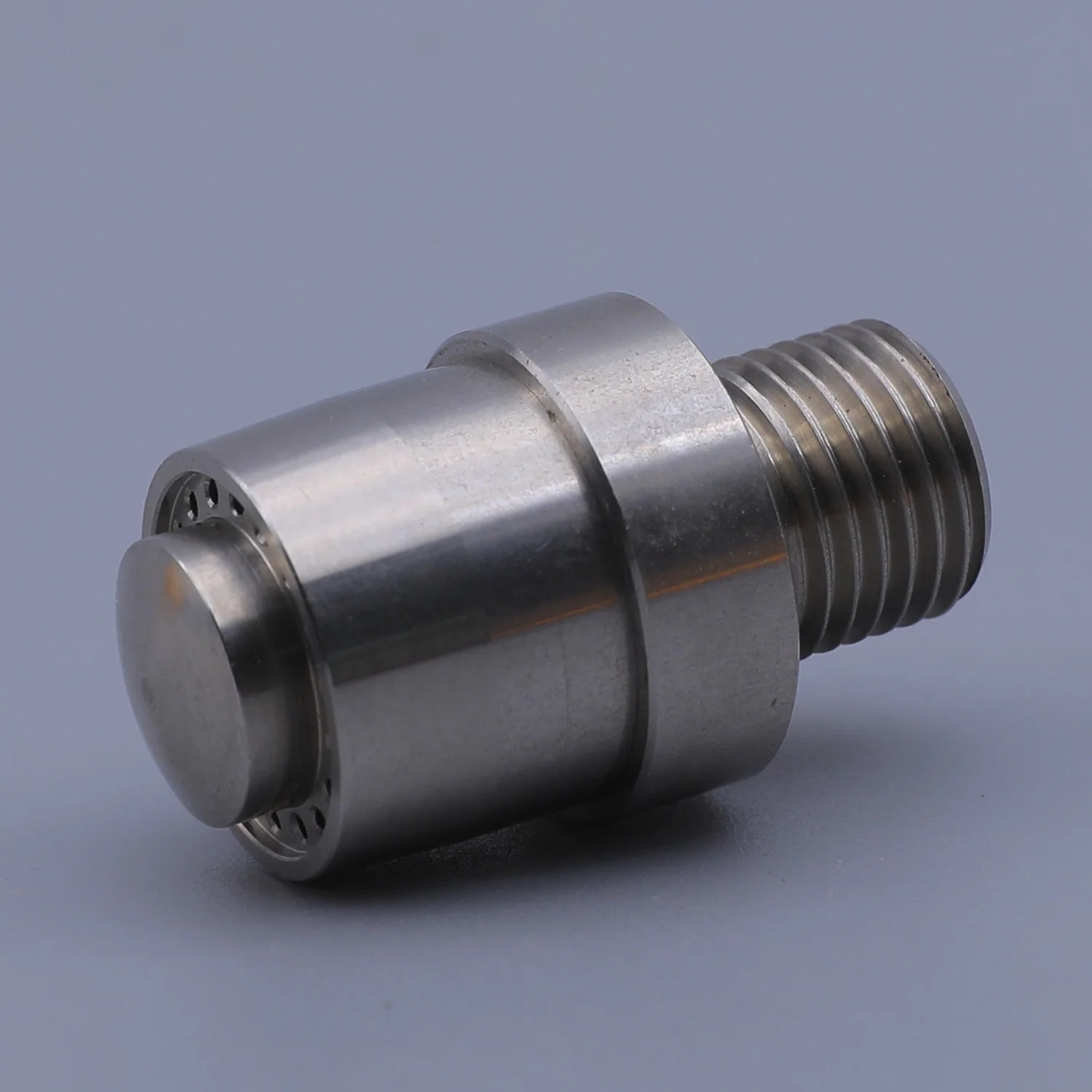

An air spray nozzle delivers a focused stream of compressed air to atomize liquid into fine droplets, which is required when a coating, rinse, or chemical solution must be applied evenly without overspray or pooling. This CNSS air spray nozzle is designed for use in industrial misting, surface cleaning, and liquid application systems where controlled atomization is critical. The nozzle body is constructed from materials suitable for high-pressure air and liquid service, with a threaded connection for secure mounting on piping or fixtures.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Delivers consistent atomization of liquid using compressed air, reducing waste and improving coverage
- Threaded body allows direct mounting on existing piping without adapters
- Mechanical bearing assembly inside the nozzle ensures smooth operation under continuous air flow
- Stainless steel construction resists corrosion in humid or chemically exposed environments
- Compact design fits into tight spaces on production lines or in enclosed wash systems
- Free trial samples available to test atomization performance before bulk ordering
Application Scenarios
Where It Is Installed
- Surface cleaning lines where a fine mist of cleaning fluid must be applied without wetting adjacent parts
- Coating application systems requiring uniform droplet size for even film formation
- Industrial misting systems for cooling or humidification where low liquid consumption is needed
- Parts washing stations using air-assisted atomization to remove oils or residues
- Chemical application systems in textile or paper processing where precise liquid distribution is essential
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing worn air-assisted nozzles in existing misting or cleaning systems
- OEM machine builders integrating atomizing nozzles into automated washing or coating lines
- Process engineers specifying atomization performance for new liquid application systems
- Facility operators in paper mills or textile workshops needing reliable misting components
- Installers of outdoor fog or cooling systems requiring durable, low-maintenance nozzles
Problems It Solves
What It Fixes on the Line
- Inconsistent atomization that leads to uneven coating or excessive liquid use
- Nozzle clogging from debris in compressed air or liquid lines
- Poor spray pattern due to loose or misaligned internal components
- Short service life in humid or corrosive environments
- Difficulty in mounting nozzles where space is limited or standard fittings do not match
Technical Features
How It Is Built
- Internal bearing assembly ensures stable operation under high air pressure
- Threaded body allows direct connection to piping without additional fittings
- One-piece construction with no loose internal parts to wear or dislodge
- Stainless steel body resists degradation from moisture and airborne contaminants
- Perforated top and central cap design allows for even air distribution and liquid atomization
- Designed for continuous operation in industrial air and liquid service
Materials
Body Materials and Where Each One Suits
- Stainless steel for use in high-pressure air and liquid systems with moderate chemical exposure
- Suitable for environments with humidity, condensation, or light chemical contact
Manufacturing Process
How the Part Is Made
- Material selection based on the intended duty and service environment
- Machining of the threaded body and internal bearing assembly
- Assembly of internal components with precision alignment
- Inspection of thread fit and internal clearances
- Testing under air pressure to verify atomization pattern
- Packaging and shipping with protection against damage during transit
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Quality controlled at material selection, manufacturing, inspection, packaging, and transportation
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listings
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to customer drawings
- OEM orders accepted including customer marking and branding
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it does not offer the focused, directional atomization that an air spray nozzle provides for surface application |
|---|---|
| Hollow cone nozzle | A hollow cone produces a ring-shaped spray with finer droplets, better for gas scrubbing, but it lacks the directional control and concentrated stream of an air spray nozzle |
| Spiral nozzle | A spiral nozzle is designed to pass solids and resist clogging, but it is not intended for atomization and does not deliver the same level of liquid breakup as an air-assisted nozzle |
| Standard air nozzle without internal bearing | This air spray nozzle includes a bearing assembly for smoother operation under continuous use, reducing wear and extending service life compared to non-bearing designs |
Use Guide
Fitting and Running It
- Confirm the required air pressure and liquid flow rate before selecting the nozzle
- Ensure the thread size and standard (BSPT or NPT) match the existing piping
- Inspect the internal bearing and orifice for debris before installation
- Align the nozzle so the spray pattern covers the target area without overlap or gaps
- Use a filter on the air supply if the compressed air is not clean
- Check for wear or clogging if atomization performance degrades over time
Questions Buyers Ask
Air Spray Nozzle Questions
What materials are available for this air spray nozzle?
The nozzle is constructed from stainless steel, suitable for high-pressure air and liquid service in humid or chemically exposed environments. Other materials are not available for this model.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge, and samples can be ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard parts can be customised to your drawing. OEM orders are accepted, including customer marking.
What is the lead time for samples?
Samples can be ready within 10 days after the order is confirmed.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listings. If a nozzle fails in service, send us a photo and the operating conditions by email for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the terms for your order.
Is this nozzle suitable for continuous operation?
Yes. The internal bearing assembly and stainless steel construction are designed for continuous operation in industrial air and liquid service.
Related Products
Others in the Wind Jets
Go Deeper
Industries Guides and Ways to Order
Ask About Air Spray Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
