Air Blower Spray Nozzle
An air blower spray nozzle delivers a focused stream of compressed air to break up and disperse a liquid spray, which is needed when a fine mist or atomized spray must be directed through a confined space or onto a moving surface without overspray. This CNSS air blower spray nozzle uses compressed air to atomize liquid at the point of discharge, making it suitable for applications requiring precise control of droplet size and spray pattern in industrial washing, surface treatment, or cooling systems.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Compressed air atomization allows fine droplet control for even coverage without overspray
- Compact design fits into tight spaces where traditional nozzles cannot be installed
- Plastic body reduces weight and cost for non-abrasive, non-corrosive duty
- Threaded base allows secure mounting on standard fittings without adapters
- Vertical fins improve air flow distribution and spray stability
- Free trial samples available to test performance before bulk ordering
Application Scenarios
Where It Is Installed
- Surface treatment lines where a fine, even mist must be applied without wetting adjacent areas
- Parts washing systems requiring atomized liquid to reach into small crevices
- Cooling applications in confined spaces where air flow must be directed precisely
- Washing nozzles in textile or paper making where droplet size affects product quality
- Outdoor fog systems where a controlled mist must be dispersed without drift
Who It Is For
Buyers Who Specify It
- Maintenance teams replacing worn atomizing nozzles in a washing or cooling line
- OEM machine builders integrating atomizing nozzles into new equipment designs
- Process engineers optimizing spray patterns in confined or hard-to-reach zones
- Installers of fog or mist cooling systems needing reliable, low-cost atomizers
- Facility managers upgrading to more efficient atomization in surface treatment
Problems It Solves
What It Fixes on the Line
- Inconsistent spray patterns caused by poor atomization in low-pressure liquid delivery
- Overspray and liquid waste when a spray pattern is not controlled by air assist
- Difficulty in reaching narrow or recessed areas with standard spray nozzles
- High maintenance due to clogging in nozzles with no internal air assist
- Inability to adjust droplet size without changing the entire nozzle assembly
Technical Features
How It Is Built

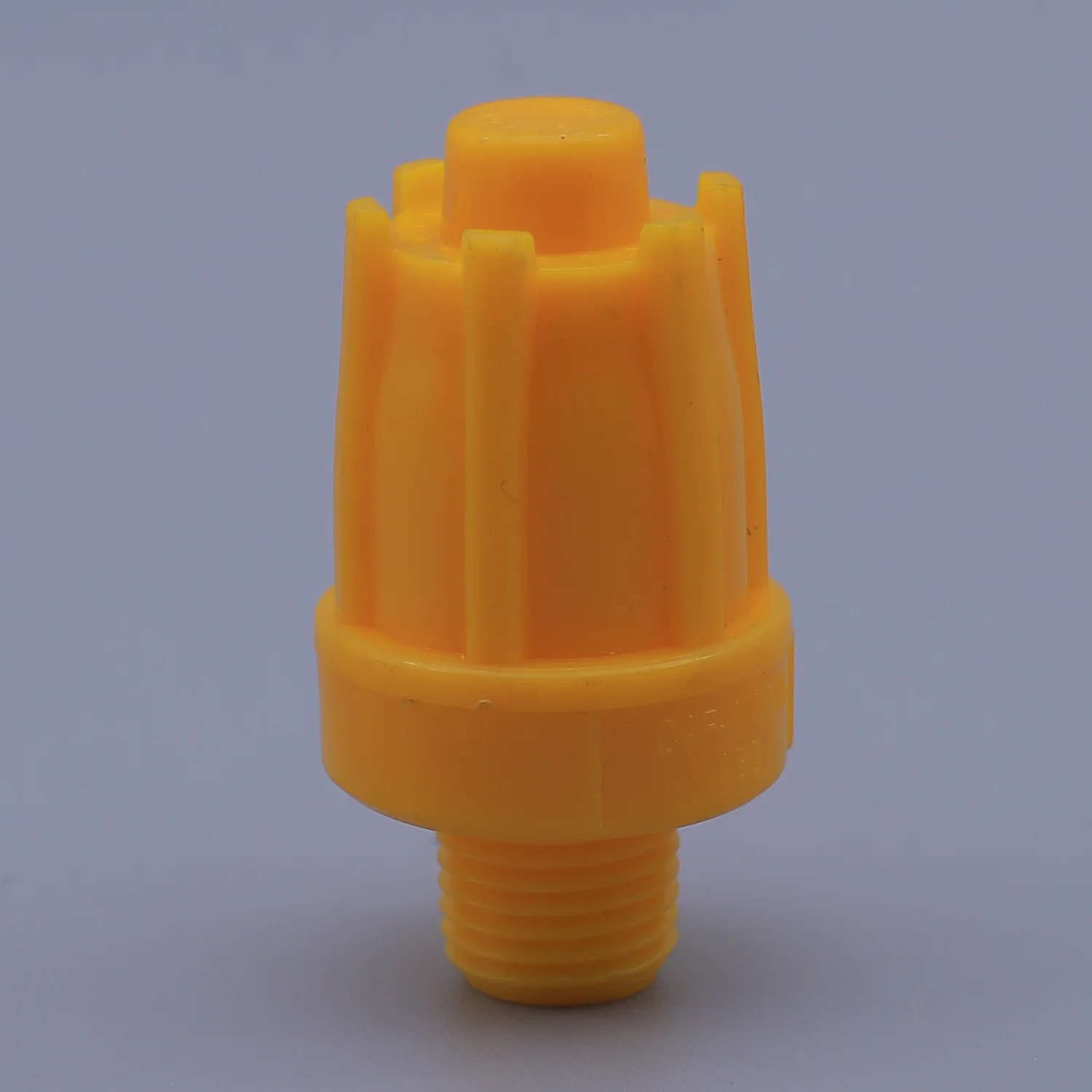

- Air blower design uses compressed air to atomize liquid at the discharge point
- Threaded base allows secure attachment to standard fittings
- Vertical fins enhance air flow and spray stability
- One-piece plastic construction reduces internal parts and wear points
- Compact body fits in tight or confined installation spaces
- No internal strainers or filters required, reducing clogging risk
Materials
Body Materials and Where Each One Suits
- Plastic body suitable for non-abrasive, non-corrosive liquid service
Manufacturing Process
How the Part Is Made
- Material selection based on the liquid and environmental duty
- Machining of the threaded base and fin structure
- Inspection of thread fit and air flow path
- Packaging for safe transport
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial or testing
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it cannot deliver a focused, directed stream like the air blower nozzle in confined areas |
|---|---|
| Hollow cone nozzle | A hollow cone gives a ring-shaped spray for gas scrubbing, but it lacks the directional control and atomization precision of an air blower nozzle |
| Standard liquid spray nozzle | A standard liquid nozzle relies on pressure alone, which limits droplet size and spray direction; the air blower version uses air assist for finer atomization and better control |
| Air atomizing nozzle with internal mixing chamber | An internal mixing chamber offers higher atomization efficiency but is more complex and prone to clogging; the air blower nozzle uses external air mixing for simpler maintenance |
Use Guide
Fitting and Running It
- Confirm the liquid type, pressure, and required droplet size before selecting a nozzle
- Ensure the compressed air supply is clean and regulated to avoid clogging
- Align the nozzle so the air and liquid streams intersect at the correct point
- Check the thread size and standard to match existing fittings
- Inspect the fins and air inlet for blockages during routine maintenance
- Use in non-abrasive and non-corrosive environments to extend service life
Questions Buyers Ask
Air Blower Spray Nozzle Questions
What materials are available for this air blower spray nozzle?
Confirm the material against your application requirements.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard parts can be customised to your drawing. OEM orders are accepted, including customer marking.
What is the lead time for samples?
Samples can be ready within 10 days after the order is confirmed.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and the operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms for your order.
Is this nozzle suitable for abrasive or corrosive liquids?
The nozzle is designed for non-abrasive and non-corrosive liquids. Confirm the material against your duty sheet.
