Protective Air Column Bag for Milk Powder
Protective air column bag for milk powder is a custom-shaped, multi-layer film bag with individually sealed columns that inflate on demand. Each column holds air independently, so damage to one does not compromise the whole bag’s protection. The film is made from PE/PA co-extrusion material, offering strength, water resistance, and recyclability. It is inflated using a Magic Air machine with a single button press, eliminating the need for pre-filled void fill and reducing storage and packing line complexity.
- Individually sealed columns mean one damaged column does not affect the rest of the bag’s protection
- Inflates on demand so no pre-filled bags occupy warehouse space
- Multi-layer PE/PA co-extrusion film provides stronger protection than single-layer film
- Water-resistant and recyclable material supports sustainable packaging goals
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Individually sealed columns mean one damaged column does not affect the rest of the bag’s protection
- Inflates on demand so no pre-filled bags occupy warehouse space
- Multi-layer PE/PA co-extrusion film provides stronger protection than single-layer film
- Water-resistant and recyclable material supports sustainable packaging goals
- Stands 60 to 120 kg after inflation, suitable for heavy or fragile goods
- Custom shapes and sizes match specific product contours without over-packaging
Where It Is Used
- Protecting milk powder cans during long-distance ocean freight
- Securing bottles of liquid products like wine, beer, or pharmaceuticals in export cartons
- Bracing electronic components such as circuit boards, hard drives, and toner cartridges
- Shielding fragile items like glassware, light bulbs, and ceramic containers
- Stabilizing stacked cartons of cosmetics, food, or hardware during warehouse handling
Who It Is For
- Exporters shipping milk powder and other powdered food products in FCL and LCL containers
- Third-party logistics warehouses managing high-value or fragile goods with limited storage
- E-commerce fulfilment centres needing on-demand void fill for mixed SKUs
- Manufacturers of electronics, cosmetics, and pharmaceuticals requiring consistent protection
Problems It Solves
- Pre-filled void fill takes up warehouse space that could hold saleable inventory
- Loose fill migrates during transit, leaving products exposed at the top of the carton
- Manual packing with cut foam or paper is inconsistent and slows down the line
- Over-packed cartons attract dimensional freight charges on air and courier shipments
- Single-point failure in a cushion system leaves the product unprotected on arrival
Technical Features
- Multi-layer co-extrusion PE/PA film for enhanced strength and puncture resistance
- Each air column sealed separately so damage to one does not affect others
- Inflated bag withstands 60 to 120 kg of pressure after inflation
- Custom shapes and sizes available to match product dimensions and packing needs
- Inflated on demand using a Magic Air machine with a single button press
- Film is transparent, recyclable, and water-resistant for use in varied environments
Published Data for Protective Air Column Bag for Milk Powder
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Protective air column bag for milk powder |
|---|---|
| Material | PE/PA co-extrusion film |
| Film Type | Multi-layer extrusion |
| Column Sealing | Separate sealing for each column |
| Load Capacity | 60 to 120 kg after inflation |
| Shape | Various shapes available, custom shape/design accepted |
| Color | Transparent |
| Features | Recyclable, reusable, water-resistant |
| Inflation Method | Magic Air machine, one-button start |
Materials
- PE/PA co-extrusion film with multi-layer structure for strength and durability
- 100% pure virgin material used in film production to ensure consistent seal integrity
- Recyclable and reusable film grade suitable for buyers with environmental targets
How It Is Made
Film extrusion using 100% pure virgin PE and PA resins
Multi-layer co-extrusion to form a strong, puncture-resistant film
Chamber and column pattern sealing to create individually sealed air cells
Slitting to the ordered width and length for custom bag formation
Roll winding and inflation test to verify seal integrity before packing
How It Is Checked
Incoming resin checked as 100% pure virgin material before extrusion
Seal strength tested during the sealing run to catch weak or incomplete seals
Sample bags inflated and held under load to confirm no air loss over time
Roll length and width verified at winding stage
Final inspection at container loading against packing list
Customisation Options
- Custom shapes and sizes to fit specific product dimensions
- Individual column design for varying pressure zones in the package
- Logo printing available on the film roll
- Film color and transparency can be adjusted to meet branding needs
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Pre-formed foam inserts | No tooling cost, no SKU-specific inventory, and no storage space required |
|---|---|
| Paper void fill | Stronger protection under load and water-resistant, though paper is better for plastic-free packaging |
| Bubble wrap | Higher load capacity and better stability in stacked cartons, but less flexible for irregular shapes |
| Loose air pillows | Pre-sealed columns prevent air loss and migration during transit, offering more consistent protection |
How to Use It
Mount the air column bag film roll onto the Magic Air machine
Set the machine width to match the film roll width for even inflation
Press the start button to inflate the bag—no manual air input needed
Place the inflated bag around the milk powder container, filling all voids
Store unused rolls flat and away from direct heat to prevent film deformation

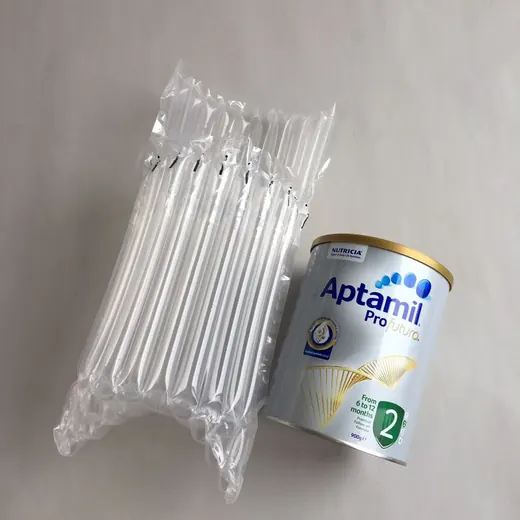

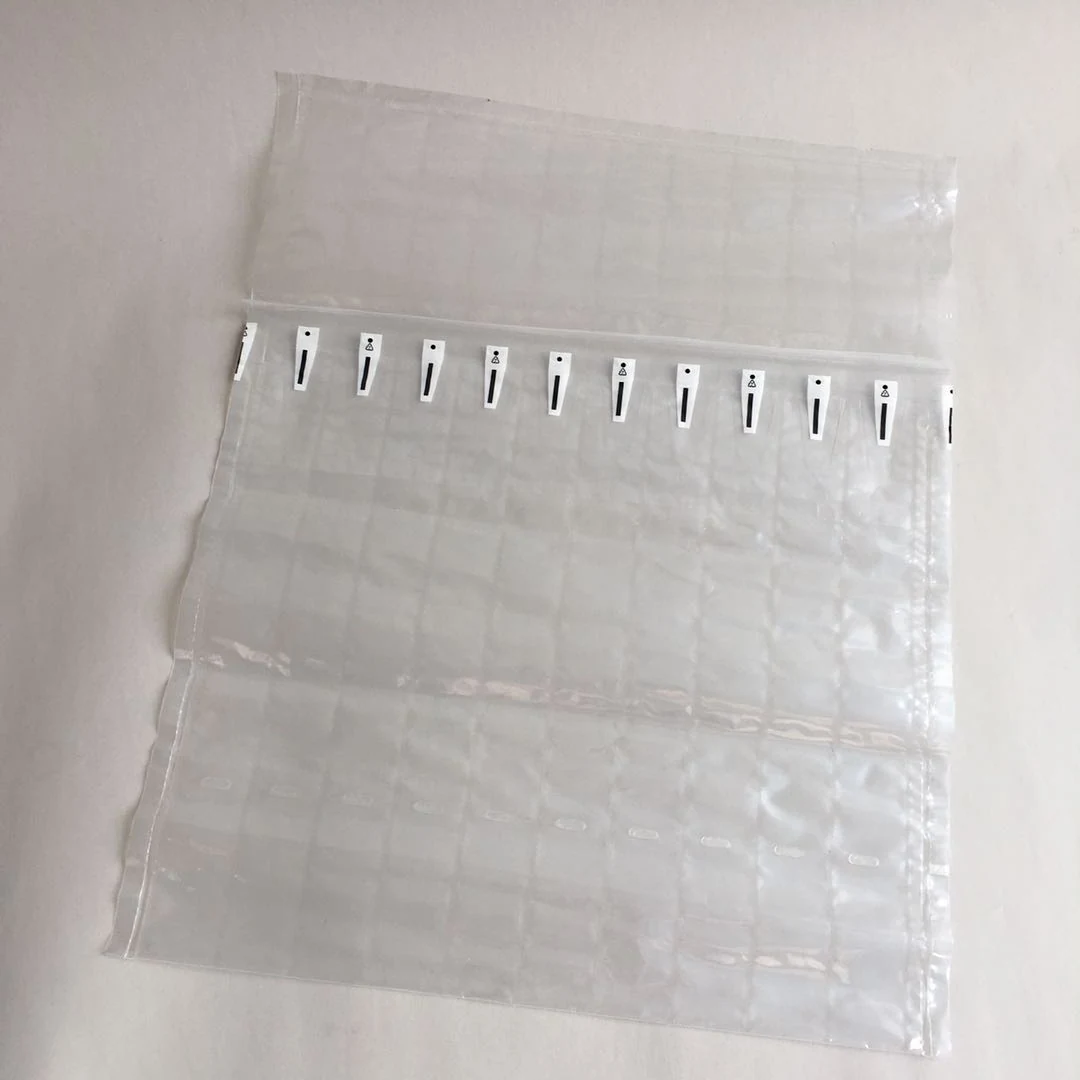

Protective Air Column Bag for Milk Powder in Detail
Photographs of the actual product as supplied, not renders.
Protective Air Column Bag for Milk Powder Questions
What is the minimum order quantity for air column bags
Order quantity depends on size, shape, and film grade. Send your specifications via WhatsApp and we will confirm the minimum for your order.
Which machine do I need to inflate this film
Use a Magic Air machine. The machine must match the film width and support the inflation speed required for your production line.
How long do the inflated columns hold their air
Inflated columns hold pressure for three to six months without leaking, which covers long ocean transit and warehouse storage.
Can you print our logo on the film
Yes. We print on our own film printing line. Send your logo artwork and the required film width for confirmation.
Is the film recyclable and reusable
Yes. The PE/PA co-extrusion film is recyclable and reusable, supporting sustainable packaging goals.
How is the film packed for export
Rolls are packed flat and shipped in cartons. The number of rolls per carton and total weight depend on the film width and length. The figure is confirmed on request via WhatsApp or email.
