Pendant Control Station

Name: Pendant Control Station
Brand: Acontrol Remote

Product Overview

What The Pendant Control Station Is For

The AR1-63CS is a single speed pendant control station with six function buttons and one emergency stop, designed for electric hoists, chain winches, monorails and other lifting equipment. It features a compact, ergonomic design with a durable yellow ABS enclosure and mechanical interlock for safety. The control station operates at 500V and is rated for 5A continuous current, allowing direct connection to contactor coils without additional relays. It is available as a sample or in small volume orders with fast delivery.

Key Benefits

What You Get From This Unit

Compact and ergonomic design fits comfortably in one hand for extended use
Mechanical interlock prevents accidental simultaneous operation of conflicting motions
Emergency stop cuts power immediately in an emergency without requiring a separate switch
Durable yellow ABS housing resists impact and wear in industrial environments
Direct connection to contactor coils avoids the need for external relays or transformers

Photos

Pendant Control Station As Supplied

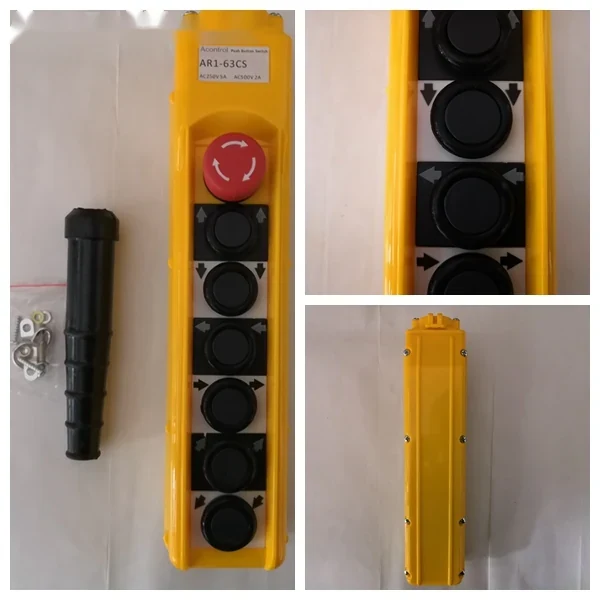

Front view of AR1-63CS pendant showing button layout and emergency stop switch

Application Scenarios

Where This Model Is Used

Electric chain hoists in assembly lines and material transfer stations
Monorail systems where space is limited and a fixed control station is not practical
Maintenance teams replacing a failed pendant on a hoist or winch
Electric carts and mobile lifts requiring a lightweight, reliable control
Retrofit of older equipment with a modern, safe pendant control

Who It Is For

Buyers This Model Suits

Hoist and crane OEMs integrating controls into new machines
Maintenance contractors replacing worn or damaged pendants
Equipment dealers stocking a standard control for multiple applications
Traders sourcing a low MOQ control unit from China with fast delivery
Workshop operators needing a reliable pendant for daily lifting tasks

Problems It Solves

What Goes Wrong Without It

Operator cannot reach the control station due to poor ergonomics or awkward mounting
No emergency stop is integrated, requiring a separate switch or button
Control station fails in high-vibration environments due to weak housing
Need to replace a lost or broken pendant without rewiring the machine

Technical Features

How The Unit Is Built

6 function buttons with arrow tip labels for directional control
1 emergency stop button with mechanical interlock to prevent accidental activation
Single speed operation for standard lifting and lowering motions
Rated 5A at 500VAC for direct connection to contactor coils
Working voltage 500V, current rating 10A, with terminal ratings 500V-2A and 250V-5A
Housing made of yellow ABS plastic for impact resistance and durability
Compact size: 30.5 x 9 x 8 cm per unit
Mechanical interlock ensures only one motion can be active at a time
Emergency stop cuts power to all circuits immediately upon activation

Specifications

Data From The Original Product Sheet

Model	AR1-63CS
Series	AR1-C series
Button No.	6 + 1 E-stop
Speed	Single
Button Text	Arrow Tip
Working Voltage	500V
Working Current	5A
Contact Rating	5A at 500VAC
Housing Color	Yellow
Housing Material	ABS
Enclosure Protection	IP20
Operating Temperature	-45 C to +55 C
Emergency Stop	Mechanical interlock, cuts power in emergency
Warranty	12 months
Button Type	Combination
Size	30.5 x 9 x 8 cm
Weight	Approx. 500 g
Cable Length	1 m standard
Cable Type	3-core flexible cable with strain relief
Mounting	Handheld, no fixed mounting required

Materials

What The Housing And Contacts Are Made Of

Yellow ABS housing for impact resistance and long service life in industrial settings
Metal contacts rated 5A at 500VAC for reliable switching under continuous load
3-core flexible cable with strain relief to prevent cable breakage at the connector

Manufacturing Process

How This Unit Is Made

Step 1

Buttons and terminals are assembled on the production line with precision tools

Step 2

Mechanical interlock is tested during assembly to ensure correct operation

Step 3

Each unit is tested for continuity, insulation and emergency stop function

Step 4

Final inspection includes visual check of housing, button labels and cable integrity

Step 5

Packed in individual box with label and serial number before shipping

Quality Control

What Is Checked Before It Ships

All components inspected upon arrival at the factory
Each control station is function tested before packing
Mechanical interlock verified on every unit
Emergency stop tested under load to confirm power cutoff
12 month warranty from delivery date

Customization Options

What Can Be Changed On Your Order

Button text can be changed to custom English labels upon request
Brand name and logo printing accepted on OEM orders
Number of buttons can be adjusted from 2 to 16 depending on model
Cable length and type can be customized for special applications
Custom button color or housing color available on bulk orders

Comparison

How It Compares With The Alternatives

Wired pendant with no emergency stop	The AR1-63CS includes a mechanical interlock and dedicated E-stop, improving safety over basic pendants
F24-8D radio remote control	The pendant is more reliable in high-interference environments and does not require batteries or pairing
XAC series pendant (Schneider model)	The AR1-63CS offers the same functionality at a lower cost with faster delivery and customization options

Use Guide

Getting It Onto The Machine

Confirm the control voltage and current rating on the existing hoist or winch panel before ordering
Check that the number of motions matches the button count; add one spare if needed
Mount the pendant securely on the hoist or winch for easy access during operation
Test the emergency stop before first use to ensure it cuts power immediately
Keep the pendant clean and dry; avoid submerging in water or exposing to extreme heat
