Crane Remote Control
The AR1-68CD is a 12-button double speed pendant control station for overhead cranes, monorails, hoists and electric chain winches. It features a compact, ergonomic design with black arrow tip buttons and a yellow ABS housing. The
What The Crane Remote Control Is For
The AR1-68CD is a 12-button double speed pendant control station for overhead cranes, monorails, hoists and electric chain winches. It features a compact, ergonomic design with black arrow tip buttons and a yellow ABS housing. The unit includes an open button, stop button, emergency stop and selector switch, and is rated for 5A at 500VAC. It is built with mechanical interlock for safety and is suitable for indoor and outdoor use in industrial environments. The control is designed to be mounted at a workstation or on a moving platform where direct access to the machine is needed.
What You Get From This Unit
- Compact and ergonomic design allows easy mounting and operation at a workstation or on moving equipment
- Double speed control on all 12 buttons enables fast travel and precise positioning without extra hardware
- Mechanical interlock prevents conflicting commands, improving safety during operation
- Yellow ABS housing is durable and resistant to impact and wear in industrial settings
- 5A contact rating at 500VAC allows direct connection to contactor coils without external relays

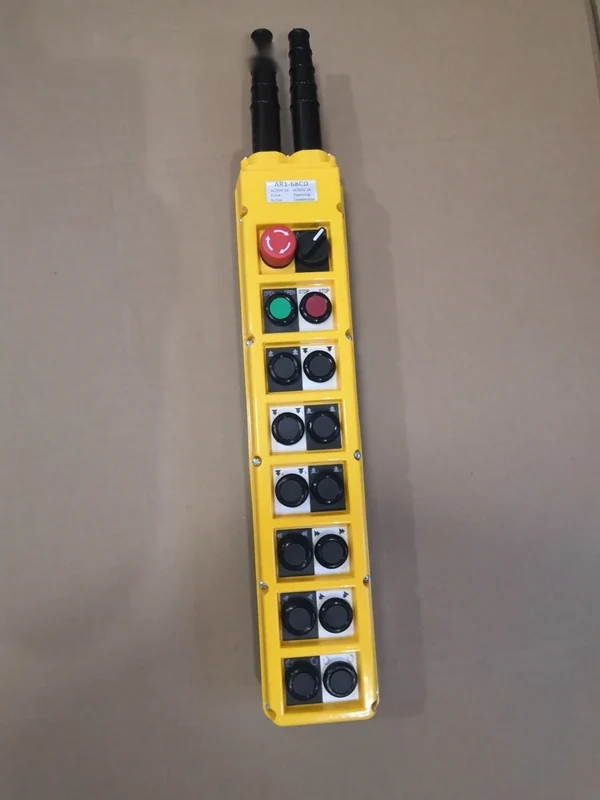

Crane Remote Control As Supplied
Where This Model Is Used
- Workstation crane control in fabrication or assembly shops where the operator needs to stand close to the load
- Monorail systems in warehouses or production lines where the operator must move with the load
- Electric chain hoists and winches used in maintenance or lifting tasks requiring precise control
- Truck-mounted or mobile lifting equipment where a fixed control station is impractical
- Retrofit of an existing crane or hoist with a pendant control that matches the machine's voltage and motion requirements
Buyers This Model Suits
- Crane and hoist OEMs integrating a pendant control into a new machine build
- Maintenance teams replacing a failed or worn pendant control station
- Equipment dealers stocking a control unit that fits multiple machine types and voltages
- Traders sourcing a pendant control from China with low MOQ and fast delivery
What Goes Wrong Without It
- Operator must stand in a fixed cab or at a distance from the load, reducing visibility and control
- Existing pendant cable is damaged, frayed or too short for safe operation
- Control panel voltage does not match standard control units, requiring a custom receiver
- Two cranes in the same area respond to the same control due to lack of unique coding
- Lack of mechanical interlock leads to accidental conflicting commands during operation
How The Unit Is Built
- 12 double speed push buttons with arrow tip labels, plus open, stop and emergency stop
- Selector switch for mode selection between single and double speed control
- Rated 5A at 500VAC for direct contactor switching without external relays
- Working voltage 500VAC, current rating 10A at 500V, 2A at 250V
- Operating temperature range from -45°C to +55°C for use in extreme environments
- Emergency stop switch cuts power immediately to prevent accidents
- Compact size with 1 m cable for easy mounting and connection to control panel
Data From The Original Product Sheet
| Model | AR1-68CD |
|---|---|
| Housing Color | Yellow |
| Button Color | Black |
| Number of Buttons | 12 |
| Speed | Double |
| Button Type | Combination |
| Button Text | Arrow Tip |
| Start Type | Button |
| Working Voltage | 500V |
| Working Current | 5A |
| Contact Rating | 5A at 500VAC |
| Maximum Current | 10A at 500V, 2A at 250V |
| Operating Temperature | -45 C to +55 C |
| Warranty | 12 months |
| Cable Length | 1 m |
| Housing Material | ABS |
| Interlock | Mechanical |
| Mounting Type | Wall or Panel Mount |
| Power Supply | AC 500V |
| Control Type | Push Button |
| Selector Switch | Yes |
| Emergency Stop | Yes |
| Open Button | Yes |
| Stop Button | Yes |
What The Housing And Contacts Are Made Of
- Yellow ABS housing for impact resistance and durability in industrial environments
- Mechanical interlock mechanism to prevent conflicting button presses
- High-grade contacts rated 5A at 500VAC for reliable switching under load
How This Unit Is Made
Step 1
Raw materials inspected before entering production line
Step 2
Buttons and housing assembled with mechanical interlock mechanism
Step 3
Wiring and terminal connections tested for continuity and safety
Step 4
Each unit tested under simulated load conditions before packaging
Step 5
S/N and model printed on the back for traceability and replacement
What Is Checked Before It Ships
- Step-by-step inspection from raw material to finished product
- All units powered and tested for correct button function and interlock
- Contact resistance and insulation tested to ensure safety and reliability
- 12 month warranty from delivery date
- Working process follows ISO9001:2008
What Can Be Changed On Your Order
- Button text can be changed from arrow tips to custom English labels
- Brand and label printing accepted on OEM orders
- Button count available from 2 to 16, single or double speed
- Voltage and current ratings matched to the customer’s panel requirements
How It Compares With The Alternatives
| Wired pendant control with longer cable | This pendant is lighter and more compact but requires a fixed mounting point; a long cable offers more mobility but is prone to damage |
|---|---|
| F24 series radio remote control | This pendant is wired and does not require batteries or pairing; a radio remote offers mobility but needs power and channel management |
| AR1-Y series pendant control | The AR1-68CD has a selector switch and mechanical interlock; the Y series may lack interlock and have fewer button options |
Getting It Onto The Machine
- Confirm the control voltage and current rating on the existing machine panel before ordering
- Mount the pendant at a comfortable height and angle for the operator
- Use the selector switch to toggle between single and double speed modes as needed
- Test the emergency stop and interlock function before first use
- Record the S/N and model number for future replacement orders
Other Models In This Series
Industries Cases And Guides For This Model
Overhead and Bridge Cranes
Industry application
Electric Hoists and Winches
Industry application
Agriculture and Garden Machinery
Industry application
F21-2S Up and Down Remote Control For Chain Hoists
Case study
Factory Visit And Six Month Field Test Before A Pakistan Order
Case study
Pendant Control Or Radio Remote Control For Your Crane
Technical guide
What Does IP65 Mean On A Crane Remote Control
Technical guide
How To Replace A Broken Or Lost Remote Control
Technical guide
OEM And Private Label Control Units
Solution
Retrofit A Pendant Crane To Radio Control
Solution
Catalogue And Datasheets
Download center
Frequently Asked Questions
What is the minimum order quantity?
One piece. A single sample is available for testing before placing a larger order.
How long is delivery?
Samples are delivered in 3-4 days; small volume orders take about 7 days after confirmation.
Can the button text be customized?
Yes. Arrow tips are standard, but your own English labels can be printed on OEM orders.
Is mechanical interlock included?
Yes. The AR1-68CD includes a mechanical interlock to prevent conflicting button operations.
Can I get a replacement pendant?
Yes. Provide the S/N and model number, and we will build a new unit with the same configuration.
What is the working temperature range?
The pendant operates from -45°C to +55°C, suitable for cold storage and hot industrial environments.
How is it packed?
One unit per box, 20 units per carton. Packing size: 46 x 24.4 x 14.8 cm per box, 76.3 x 49.3 x 33 cm per carton.
Quote The Crane Remote Control
Send the control voltage on your panel and the motion list. A price, a lead time and the matching receiver build come back the same working day.
