AR1-C Series Pendant Control
AR1-C series is the rainproof pendant control range for cranes and hoists that need a durable, wired control station with mechanical interlock and a compact, ergonomic design. Available in single or double speed versions with 2 to 20 buttons, it matches existing control panel voltages and is built for harsh industrial environments.
Every AR1-C Series Pendant Control Model We Build
Buyers This Series Was Built For
- Crane and hoist OEMs integrating a rainproof pendant into new machine builds
- Maintenance teams replacing a failed pendant control in a wet or dirty bay
- Dealers who need a single control family covering multiple voltages and button counts
- Traders sourcing a sample to verify fit and function before a bulk order
What This Series Fixes On The Machine
- Wired pendant controls fail in wet or dusty environments due to exposed connectors and cable damage
- Standard pendant stations lack mechanical interlock, increasing risk of unintended motion
- Control units do not match the voltage of the crane panel, requiring an external transformer
- Button layout does not match the machine’s motion sequence, causing operator confusion
- Cable strain and snagging lead to frequent disconnections and downtime
Why This Series Rather Than A Generic Control
- IP65 rated enclosure protects against water, dust and wash-down conditions
- Mechanical interlock prevents conflicting button presses and ensures safe operation

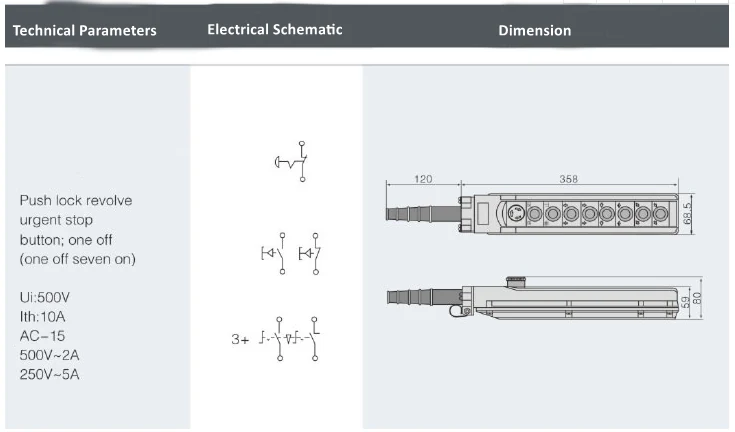

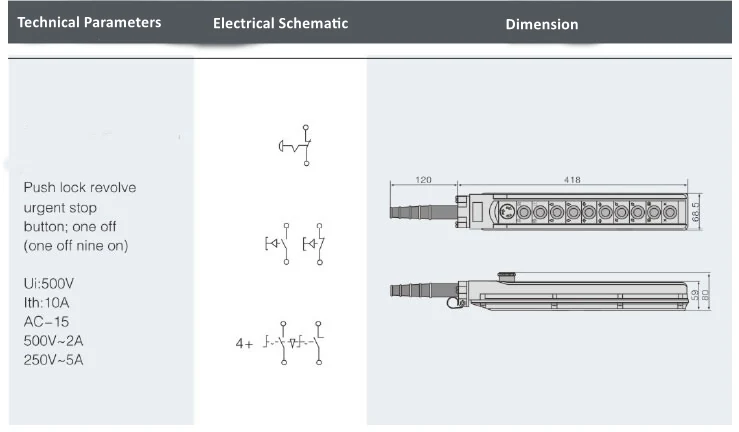

- Built for 500V working voltage and 5A current, suitable for most industrial crane panels
- Button count from 2 to 20, with single or double speed options to match machine functions
- Model numbers include AR1-67CS (single speed) and AR1-68CD (double speed) for clear identification
Where These Units Are Working Today
- Overhead and bridge cranes in fabrication shops with high humidity or frequent cleaning
- Electric hoists and winches used in outdoor or wet environments
- Crane control stations in mining or construction sites exposed to dust and moisture
- Maintenance bays where control cables are frequently moved and stressed
- Factories with multiple cranes in one bay where consistent control layout is needed
Sectors Buying This Series
Overhead and Bridge Cranes
Overhead and bridge cranes rely on precise control input from the operator. Acontrol Remote supplies both radio and pendant control solutions for EOT cranes, si
Electric Hoists and Winches
Electric hoists and winches benefit from wireless control when the operator needs to move freely or when the pendant cable interferes with the load path. Acontr
Agriculture and Garden Machinery
Industrial remote controls are used on agriculture and garden machinery, including tillers, garden equipment, and electric carts. Acontrol supplies push button
Orders That Used This Kind Of Control
F21-2S Up and Down Remote Control For Chain Hoists
The OEM required a wireless remote control that could replace the standard wired pendant on chain hoists across multiple load capacities, maintain consistent operation in harsh con
Factory Visit And Six Month Field Test Before A Pakistan Order
The buyer needed to validate the reliability and compatibility of the F24-10S radio remote control in real-world conditions before placing a large order. They required a physical s
Frequently Asked Questions

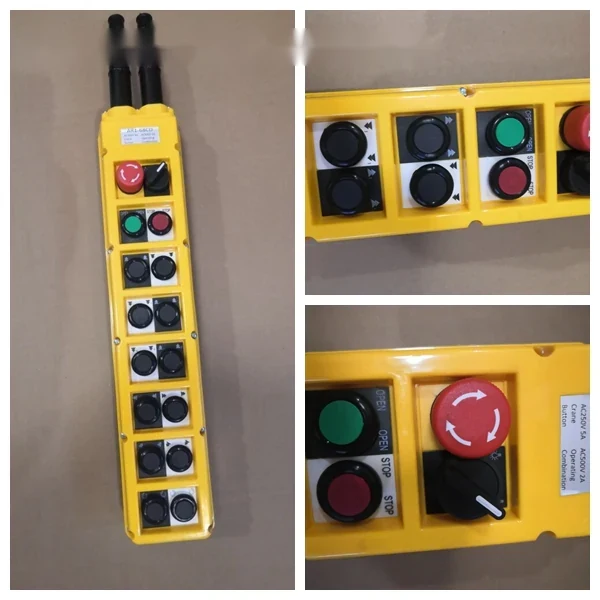

What is the difference between AR1-67CS and AR1-68CD?
AR1-67CS is single speed with 10 buttons; AR1-68CD is double speed with 12 buttons. Choose based on whether the machine requires fast and slow motion control.
Can I order a pendant with fewer than 10 buttons?
Yes. Button counts range from 2 to 20. Specify the number and function when placing the order.
Is mechanical interlock standard?
Yes. All AR1-C series pendants include mechanical interlock to prevent conflicting button operations.
What voltage and current does it support?
Designed for 500V working voltage and 5A current. The receiver is built for the panel voltage you specify.
How long is delivery for a sample?
Samples are delivered within 2-4 days. Small volume orders take around 7 days.
Can I get a custom button layout?
Yes. OEM button text, voltage and brand printing are accepted on order.
Get A Quote On The AR1-C Series Pendant Control Range
Send the control voltage and motion list and the right model in this series is proposed with a price and a lead time.
