Crane Hoist Control
The AR1-67CS is a single speed pendant control station for cranes, hoists and mobile equipment, designed with a compact and ergonomic form factor. It features 10 function buttons, an open button, stop button, emergency stop and se
What The Crane Hoist Control Is For
The AR1-67CS is a single speed pendant control station for cranes, hoists and mobile equipment, designed with a compact and ergonomic form factor. It features 10 function buttons, an open button, stop button, emergency stop and selector switch, all mounted on a durable yellow ABS housing. The unit is rated for 500VAC and 5A continuous current, making it suitable for direct control of contactor coils in electric chain hoists, monorails and transfer systems. Built for industrial environments, it includes a mechanical interlock for safety and a standard emergency switch to cut power immediately.
What You Get From This Unit
- Compact and ergonomic design allows comfortable operation in tight workspaces
- Single speed control simplifies operation for basic lifting and positioning tasks
- Durable yellow ABS housing resists impact and wear on shop floors
- Emergency stop switch cuts power immediately for operator safety
- 12-button configuration with arrow tip labels improves clarity and reduces training time

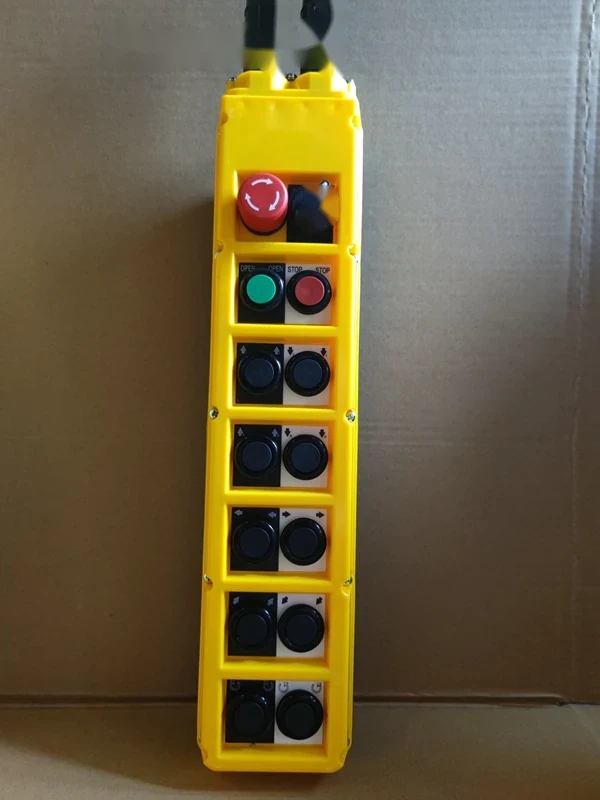

Crane Hoist Control As Supplied
Where This Model Is Used
- Electric chain hoists in fabrication shops and maintenance bays
- Monorail systems where space is limited and a compact control is needed
- Transfer systems for moving parts between workstations
- Electric chain winch carts used in material handling
- Lifts and garden machines requiring simple, reliable control
- Truck-mounted or mobile equipment where a lightweight pendant is essential
Buyers This Model Suits
- Crane and hoist OEMs integrating a pendant into new machine builds
- Maintenance teams replacing a failed or worn pendant control
- Equipment dealers stocking a control unit for multiple machine types
- Traders sourcing a low MOQ pendant control from China for immediate delivery
What Goes Wrong Without It
- Existing pendant is too bulky or heavy for use in tight or overhead workspaces
- Operator must use two hands on a large pendant, reducing control precision
- Worn or damaged buttons on a pendant lead to inconsistent operation
- Lack of mechanical interlock causes accidental simultaneous motion activation
- Standard pendant lacks emergency stop or has a weak switch that fails under pressure
How The Unit Is Built
- 10 function buttons with arrow tip labels, plus open, stop, emergency stop and selector switch
- Single speed control with push button start type
- Mechanical interlock prevents conflicting button combinations
- Emergency stop switch cuts power immediately
- Rated 5A at 500VAC, suitable for direct contactor control
- Housing made of yellow ABS for impact resistance and long service life
- Working temperature range from -45 C to +55 C
- Button color is black, housing color is yellow
- Standard emergency switch for immediate power cutoff
Data From The Original Product Sheet
| Model | AR1-67CS |
|---|---|
| Series | AR1-C |
| Button No. | 10 + Open + Stop + Emergency Stop + Selector Switch |
| Speed | Single / 1 |
| Start Type | Button |
| Button Type | Combination |
| Button Color | Black |
| Housing Color | Yellow |
| Working Voltage | 500V |
| Working Current | 5A |
| Rated Current | 10A |
| Contact Rating | 500V-2A, 250V-5A |
| Ui | 500V |
| Working Temperature | -45 C to +55 C |
| Housing Material | ABS |
| Emergency Switch | Standard |
| Warranty | 12 months |
What The Housing And Contacts Are Made Of
- Yellow ABS housing for impact resistance and durability in industrial settings
- Black combination buttons with arrow tip labels for clear function identification
- Mechanical interlock mechanism to prevent conflicting motion activation
How This Unit Is Made
Step 1
Buttons and contacts are assembled on the production line with mechanical interlock tested at assembly
Step 2
Each unit is tested for continuity and correct button function before final inspection
Step 3
Housing is injection molded and inspected for defects before button installation
Step 4
Final assembly includes wiring, emergency switch integration, and label printing
Step 5
Each pendant is powered and tested under load to verify contact performance
What Is Checked Before It Ships
- Raw materials inspected upon receipt
- In-process checks at button assembly, wiring, and final test stages
- Each unit is function tested with simulated load before packing
- 12 month warranty from delivery date
- Working process follows ISO9001:2008
What Can Be Changed On Your Order
- Button text can be changed to custom English labels on OEM orders
- Button count available from 2 to 16, single or double speed
- Housing color can be changed to match customer branding
- Brand and label printing accepted on OEM orders
How It Compares With The Alternatives
| Wired pendant with 20 buttons | The AR1-67CS is lighter and more compact, ideal for simple tasks; a 20-button pendant adds weight and complexity for no benefit if only 10 motions are used |
|---|---|
| Double speed pendant control | Single speed is simpler to train operators on; double speed adds motion control but increases cost and complexity for basic lifting |
| F24 series radio remote control | The pendant offers direct wired control with no batteries or pairing; a radio remote adds mobility but requires battery changes and channel management |
Getting It Onto The Machine
- Confirm the control voltage and current requirements on the machine panel before ordering
- Use the 10 function buttons for primary motions; reserve the open and selector switch for auxiliary functions
- Mount the pendant securely to avoid strain on the cable during operation
- Check the emergency stop switch regularly to ensure it operates smoothly
- Record the model number and button layout for future replacement or spare ordering
Other Models In This Series
Industries Cases And Guides For This Model
Overhead and Bridge Cranes
Industry application
Electric Hoists and Winches
Industry application
Agriculture and Garden Machinery
Industry application
F21-2S Up and Down Remote Control For Chain Hoists
Case study
Factory Visit And Six Month Field Test Before A Pakistan Order
Case study
Pendant Control Or Radio Remote Control For Your Crane
Technical guide
What Does IP65 Mean On A Crane Remote Control
Technical guide
How To Replace A Broken Or Lost Remote Control
Technical guide
OEM And Private Label Control Units
Solution
Retrofit A Pendant Crane To Radio Control
Solution
Catalogue And Datasheets
Download center
Frequently Asked Questions
What is the minimum order quantity?
One piece. A single sample is available for testing on your machine.
How long is delivery?
Samples are delivered in 3-4 days; small volume orders take about 7 days.
Can I get a replacement pendant?
Yes. Provide the model number and button configuration, and we will build a matching unit.
Can the button text be changed?
Yes. Arrow tips are standard, but custom English labels can be printed on OEM orders.
What is the working temperature range?
From -45 C to +55 C, suitable for cold storage and outdoor use.
Is there a mechanical interlock?
Yes. The unit includes a mechanical interlock to prevent conflicting button combinations.
How is it packed?
One pendant per box; 20 pendants per carton.
