AR1-67CD pendant control station in yellow ABS housing with ten double speed buttons and emergency stop

Electrical Crane Control

Name: Electrical Crane Control
Brand: Acontrol Remote

Product Overview

What The Electrical Crane Control Is For

The AR1-67CD is a compact, ergonomic pendant control station for electric cranes, hoists, and mobile equipment, featuring ten double speed push buttons, an open button, stop button, and emergency stop. It operates at 500V AC and is built with a durable yellow ABS enclosure. The unit is designed for use in workstations, monorails, and chain hoists, with mechanical interlock for safety. It is part of the AR1-C series and supports both single and double speed control systems.

Key Benefits

What You Get From This Unit

Compact and ergonomic design fits comfortably in hand for extended use
Ten double speed buttons allow precise control of multiple motions at two speeds
Mechanical interlock prevents conflicting commands during operation
Durable yellow ABS housing resists impact and wear in industrial environments
Rated 5A at 500VAC ensures reliable switching of contactor coils without external relays

Photos

Electrical Crane Control As Supplied

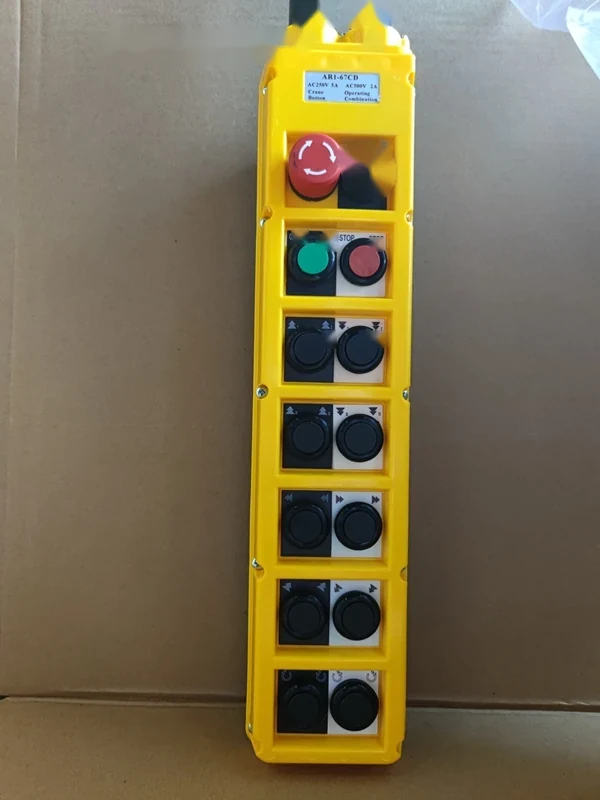

Close-up of AR1-67CD front panel showing black buttons, arrow tips, and emergency stop

Application Scenarios

Where This Model Is Used

Workstation cranes and monorail systems in fabrication and assembly shops
Electric chain hoists and winches used in maintenance and material handling
Truck-mounted lifting equipment requiring portable, rugged control
Garden machines and power lifts where compact control is essential
Retrofit of existing hoist systems without replacing the motor panel

Who It Is For

Buyers This Model Suits

Crane and hoist OEMs integrating controls into new machine builds
Maintenance teams replacing worn or failed pendant stations
Equipment dealers stocking a control unit that fits multiple machine types
Traders sourcing a pendant control from China with low MOQ and fast delivery

Problems It Solves

What Goes Wrong Without It

Operator fatigue from holding a heavy or poorly shaped pendant during long shifts
Risk of accidental double commands due to lack of mechanical interlock
Existing pendant fails in a dusty or wet environment due to poor enclosure sealing
Control system requires an external relay because the contactor cannot handle the load directly
Need to replace a lost or damaged pendant without reprogramming the entire system

Technical Features

How The Unit Is Built

10 double speed push buttons for 20 motion commands across two speeds
One open button, one stop button, one emergency stop button
Working voltage 500V AC, rated current 5A at 500VAC, 2A at 500VDC, 5A at 250VAC
Housing made of yellow ABS plastic for impact resistance and durability
Emergency switch cuts power immediately for safety
Compact size allows use in tight workspaces
Button color black for high contrast and visibility

Specifications

Data From The Original Product Sheet

Model	AR1-67CD
Series	AR1-C
Housing Color	Yellow
Button Color	Black
Number of Buttons	10
Button Type	Combination
Speed	Double speed
Start Type	Button
Working Voltage	500V AC
Working Current	5A
Contact Rating	5A at 500VAC, 2A at 500VDC, 5A at 250VAC
Operating Temperature	-45 C to +55 C
Housing Material	ABS
Emergency Stop	Standard
Mechanical Interlock	Yes
Warranty	12 months
Button Text	Arrow Tip
Packing	1 piece per box, 20 pieces per carton

Materials

What The Housing And Contacts Are Made Of

Yellow ABS plastic housing for impact resistance and long-term durability
Mechanical interlock mechanism to prevent conflicting button presses
High-grade contacts rated 5A at 500VAC for reliable switching without external relays

Manufacturing Process

How This Unit Is Made

Step 1

Buttons and contacts are assembled on the production line with precision alignment

Step 2

Mechanical interlock is tested during assembly to ensure proper function

Step 3

Each unit is powered and tested for all button functions and emergency stop

Step 4

Final inspection includes visual check of housing, button color, and label clarity

Step 5

Packed in individual boxes, then grouped into cartons of 20 for shipping

Quality Control

What Is Checked Before It Ships

Raw materials inspected before use on the production line
Each unit is function tested under load before packing
Mechanical interlock verified on every unit
Visual inspection for defects in housing, button alignment, and labeling

Customization Options

What Can Be Changed On Your Order

Button text can be changed from arrow tips to custom English labels on OEM orders
Button count available from 2 to 16, depending on model and control system
Single speed or double speed configurations available
Custom branding and label printing accepted on OEM orders
Voltage and current ratings matched to customer’s panel requirements

Comparison

How It Compares With The Alternatives

Wired pendant control with no interlock	Mechanical interlock prevents dangerous simultaneous commands; a non-interlocked pendant risks short circuits or unintended motion
F21-2S series with two buttons	The AR1-67CD offers ten double speed buttons for complex motion control; the 2S is suitable only for simple lift and travel
F24-6D radio remote control	Pendant offers direct tactile feedback and no battery replacement; radio adds range but requires pairing and battery changes

Use Guide

Getting It Onto The Machine

Confirm the control voltage and current on the existing machine panel before ordering
Check the number of motions required and select a pendant with enough buttons and speeds
Mount the pendant securely to avoid strain on the cable during operation
Test the emergency stop and mechanical interlock before first use
Record the model and button configuration for future replacement orders
