AR1-62FS hoist pendant control station in yellow ABS housing with four black push buttons and emergency stop

Hoist Remote Control Switch

Name: Hoist Remote Control Switch
Brand: Acontrol Remote

Product Overview

What The Hoist Remote Control Switch Is For

The AR1-62FS is a single speed pendant control station for electric hoists and overhead cranes, featuring four push buttons and an emergency stop. It is designed for use in industrial environments where reliable, wired control is needed without the complexity of radio systems. The unit is built with a rugged, double insulated thermoplastic enclosure and includes mechanical interlock for safety. It operates at up to 500V and 10A, making it suitable for direct control of contactor coils in crane panels. The model is part of the AR1-F series, which is rainproof and suitable for indoor and outdoor use.

Key Benefits

What You Get From This Unit

Single speed control with four directional buttons and emergency stop for straightforward operation
Mechanical interlock prevents conflicting button presses, improving safety during operation
Rugged double insulated thermoplastic housing resists impact and electrical shock
Ergonomic design allows use with heavy work gloves and prolonged handling
Direct panel wiring avoids the need for a separate receiver and battery replacement
Yellow ABS enclosure improves visibility in low-light or busy work areas

Photos

Hoist Remote Control Switch As Supplied

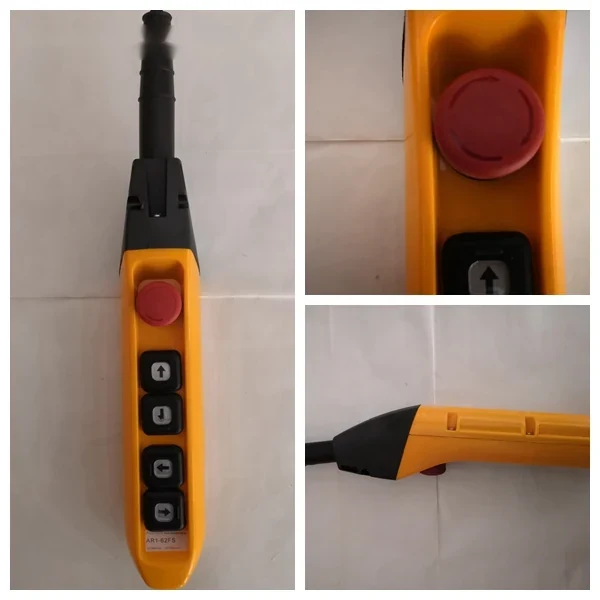

Yellow industrial crane pendant control station with red emergency stop button and directional pushbuttons, shown from three angles

Application Scenarios

Where This Model Is Used

Electric hoists in fabrication shops where a simple, reliable wired control is preferred
Overhead cranes with limited space for radio equipment or where radio interference is a concern
Maintenance teams replacing a failed pendant station with a known voltage and button count
New machine builds where a standard, low-cost pendant control is specified
Outdoor or semi-outdoor crane operations where a rainproof pendant is required

Who It Is For

Buyers This Model Suits

Crane and hoist OEMs specifying a basic pendant control for standard hoist models
Equipment dealers stocking a control unit that matches common hoist voltages and button counts
Maintenance contractors replacing a damaged or worn pendant station
Traders sourcing a wired control unit from China with low MOQ and fast delivery
Workshops requiring a durable, easy-to-use control for daily hoist operation

Problems It Solves

What Goes Wrong Without It

Operator cannot reach the control point due to a trailing pendant cable or awkward positioning
Radio remote control fails in a high-electromagnetic environment or near large metal structures
Existing crane panel lacks space or power for a radio receiver and transmitter
A pendant control fails due to water ingress or physical damage in a harsh environment
Need for a simple, low-cost control without the complexity of pairing or battery management

Technical Features

How The Unit Is Built

Four push buttons: ↑, ↓, →, ← for single speed control
One mushroom-shaped emergency stop button with mechanical interlock
Maximum current rating: 10A at 500V, with separate ratings for different voltages
Housing made from double insulated thermoplastic for electrical safety
Operating temperature range: -45°C to +55°C for use in extreme environments
Rotary start button with combination button type for secure activation
Button color: black on yellow ABS housing for high contrast and visibility
Cable entry with strain relief for durable connection to the control panel

Specifications

Data From The Original Product Sheet

Model	AR1-62FS
Category	AR1-F series
Control Type	Wired pendant control
Number of Buttons	4 push buttons + 1 emergency stop
Speed	Single speed
Max Voltage	500V
Max Current	10A
Working Temperature	-45°C to +55°C
Housing Material	Yellow ABS thermoplastic
Enclosure Protection	Double insulated
Button Type	Combination button with rotary start
Emergency Stop	Mushroom-shaped with mechanical interlock
Cable Entry	Strain relief for secure wiring
Warranty	1 year

Materials

What The Housing And Contacts Are Made Of

Yellow ABS thermoplastic housing for impact resistance and electrical insulation
Double insulated construction to prevent electric shock during operation
Black push buttons for high contrast and clear identification of functions

Manufacturing Process

How This Unit Is Made

Step 1

Raw materials are inspected before entering production

Step 2

Buttons and terminals are assembled on the production line with mechanical interlock tested

Step 3

Each unit is tested for correct button function and electrical continuity

Step 4

Final inspection includes visual check of housing, button alignment, and cable strain relief

Step 5

Packed individually with S/N and model printed on the box for traceability

Quality Control

What Is Checked Before It Ships

Step-by-step inspection from raw material to finished product
Each unit is function tested for button response and emergency stop operation
Mechanical interlock verified to prevent simultaneous activation of conflicting functions
Voltage and current ratings confirmed during testing
12 month warranty from delivery date

Customization Options

What Can Be Changed On Your Order

Button text can be customized with your own labels or brand name
OEM orders accept custom branding and label printing
Button count can be adjusted from 2 to 6 depending on control system needs
Single or double speed versions available upon request
Housing color can be changed to match your equipment branding

Comparison

How It Compares With The Alternatives

Radio remote control	Wired pendant avoids battery replacement and radio pairing; radio adds mobility but requires receiver and power source
F24-6D radio remote	Pendant is simpler and cheaper; radio allows operator to move freely but adds complexity and cost
AR1-62FD double speed pendant	This model is single speed; double speed version allows faster travel but requires more buttons and control logic

Use Guide

Getting It Onto The Machine

Confirm the control voltage and current on the crane panel before ordering
Ensure the button count matches the machine’s motion requirements
Mount the pendant securely on the crane or workstation with strain relief on the cable
Test the emergency stop function before first use to verify mechanical interlock
