AR1-62FD pendant control station for hoist in yellow ABS housing with four black push buttons and emergency stop

Pendant Control For Hoist

Name: Pendant Control For Hoist
Brand: Acontrol Remote

Product Overview

What The Pendant Control For Hoist Is For

The AR1-62FD is a double speed wired pendant control station for electric hoists and overhead cranes, designed with four push buttons and an emergency stop. It features a compact, ergonomic yellow ABS housing and is built for operation with heavy work gloves. The unit is part of the AR1-F series, which includes rainproof models, and supports both single and double speed control systems. Mechanical interlock prevents conflicting commands, and the control is rated for up to 10 amperes at 500 volts. It is used in a range of crane types, including single girder, double girder, top running, and underhung overhead cranes.

Key Benefits

What You Get From This Unit

Compact yellow ABS housing fits comfortably in hand, even with heavy gloves
Mechanical interlock prevents simultaneous activation of conflicting motions
Double speed control allows fast travel and precise slow approach without extra hardware
Rated for 10A at 500V, so it can directly switch contactor coils without a relay
4 push buttons with arrow tips and emergency stop provide clear, intuitive control

Photos

Pendant Control For Hoist As Supplied

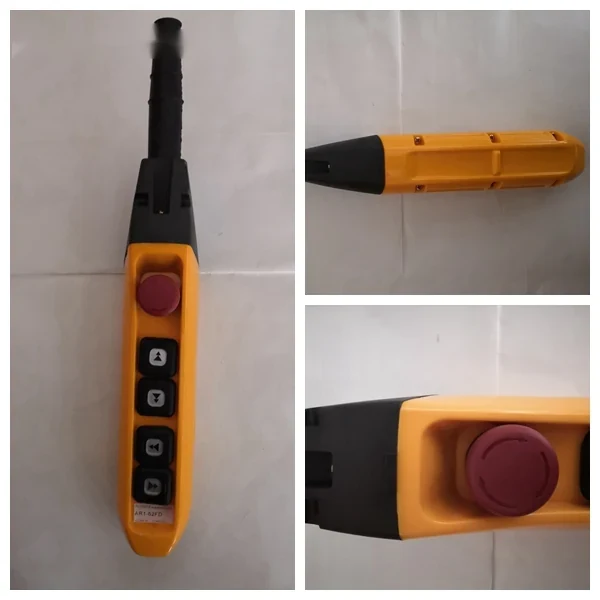

Three views of a yellow industrial pendant control station with black buttons and a red emergency stop button

Application Scenarios

Where This Model Is Used

Electric hoists in fabrication shops where operators need to control lift and travel from ground level
Overhead cranes with limited cab visibility, requiring ground-level control
Maintenance teams replacing a failed pendant station without rewiring the panel
Workstation cranes where space is tight and a compact control is needed
Retrofit of an existing hoist system with a wired pendant instead of a remote

Who It Is For

Buyers This Model Suits

Equipment dealers stocking a control unit that fits multiple hoist voltages and models
Maintenance contractors replacing a worn or damaged pendant station
Traders sourcing a wired control station from China at low MOQ with fast delivery
Operators in cold environments who need a control that works with thick gloves

Problems It Solves

What Goes Wrong Without It

Existing pendant cable is damaged or frayed, causing intermittent control
Operator cannot reach the control from the cab due to poor visibility or layout
A remote control is not suitable due to interference or battery replacement needs
Control panel lacks space for a larger control station or additional relays
A failed pendant station requires a direct replacement without changing the wiring

Technical Features

How The Unit Is Built

4 push buttons with arrow tips: ↑, ↓, →, ←, and one mushroom-shaped emergency stop
Double speed control for each motion: fast travel and slow approach
Mechanical interlock prevents simultaneous activation of conflicting commands
Maximum current rating: 10 amperes, maximum voltage: 500 volts
Housing made from rugged, double insulated yellow ABS material
Working temperature range: -45°C to +55°C
Rotary start button with combination button text
Cable entry with strain relief for durable connection
Standard 1.5 m cable with industrial-grade connectors

Specifications

Data From The Original Product Sheet

Model	AR1-62FD
Configuration	1 pendant control station
Button count	4 push buttons + E-stop
Speed	Double / 2 speed
Control type	Wired
Max current	10 A
Max voltage	500 V
Working temperature	-45 C to +55 C
Housing material	Yellow ABS
Housing color	Yellow
Button color	Black
Start type	Rotary
Button type	Combination
Cable entry	Strain relief
Interlock	Mechanical
Warranty	1 year

Materials

What The Housing And Contacts Are Made Of

Yellow ABS enclosure for impact resistance and electrical insulation
Double insulated thermoplastic housing for safety in industrial environments
Black push buttons with arrow tips for clear function identification
Industrial-grade cable with strain relief for long-term durability

Manufacturing Process

How This Unit Is Made

Step 1

Raw materials inspected before production begins

Step 2

Buttons and housing assembled with mechanical interlock tested during assembly

Step 3

Cable connected with strain relief and tested for continuity

Step 4

Each unit function tested with simulated load to verify all motions and emergency stop

Step 5

Final inspection for cosmetic defects and correct button labeling before packing

Quality Control

What Is Checked Before It Ships

Step-by-step inspection from raw material to finished product
All units powered and tested for correct button response and emergency stop function
Mechanical interlock verified on every unit
Working process follows ISO9001:2008
12 month warranty from delivery

Customization Options

What Can Be Changed On Your Order

Button text can be customized with your own labels or brand
Button count available from 2 to 12, including single and double speed options
Cable length can be adjusted upon request
Housing color can be changed to match your system (standard yellow)

Comparison

How It Compares With The Alternatives

Radio remote control	A pendant eliminates battery changes and RF interference but adds a trailing cable that can snag on structures
F24-6D radio remote	The pendant offers direct mechanical control with no pairing needed; a remote adds mobility but requires battery maintenance
XAC series pendant (Schneider model)	The AR1-62FD is a direct replacement for Schneider XAC series; same footprint and wiring, but available at lower MOQ and faster delivery

Use Guide

Getting It Onto The Machine

Confirm the control voltage and current requirements on the hoist panel before ordering
Check that the button layout matches your machine’s motion needs; this model has 4 push buttons
Mount the pendant securely near the operator’s station with the cable routed away from moving parts
Test the emergency stop button before use to ensure it cuts power immediately
Record the model number and button layout for future replacement orders
