Name: control pendant demag
Brand: Acontrol Remote

Product Overview

What The control pendant demag Is For

The AR1-63FS is a single speed wired pendant control station for overhead and bridge cranes, designed with a compact, ergonomic form and six push buttons plus an emergency stop. It features a rugged yellow ABS enclosure with double insulation, suitable for use with heavy gloves and harsh industrial environments. The unit is built for direct connection to crane control panels and includes mechanical interlock for safety. It supports up to 10 amperes at 500 volts and is rated for operation from -45°C to +55°C. This model is part of the AR1-F series, which is rainproof and suitable for indoor and outdoor use.

Key Benefits

What You Get From This Unit

Compact and ergonomic design allows easy handling with heavy gloves
Rugged yellow ABS housing resists impact and environmental stress
Mechanical interlock prevents conflicting button operations
Single speed control simplifies operation for basic crane movements
Emergency stop button halts equipment immediately in case of emergency
Built for direct panel connection with no need for additional control transformers

Photos

control pendant demag As Supplied

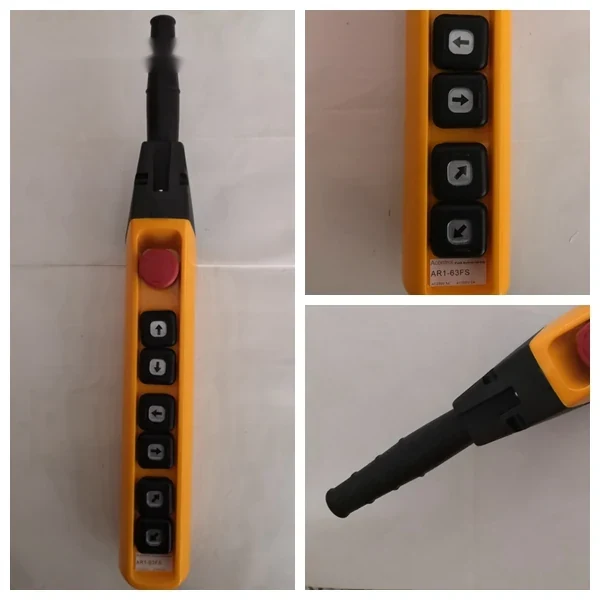

AR1-63FS pendant control station front view showing arrow button layout and rotary start

Application Scenarios

Where This Model Is Used

Overhead cranes in fabrication shops where operators wear protective gloves
Bridge cranes in outdoor yards exposed to dust and moisture
Single girder and double girder overhead cranes with basic motion control needs
Maintenance teams replacing a failed pendant station without rewiring
Crane OEMs integrating a reliable, low-cost control station into new builds

Who It Is For

Buyers This Model Suits

Crane and hoist OEMs specifying control stations into new machine builds
Maintenance contractors replacing a worn or damaged pendant control
Equipment dealers stocking a standard control unit for multiple crane types
Traders sourcing a wired pendant control from China at low MOQ

Problems It Solves

What Goes Wrong Without It

Existing pendant cable is damaged or frayed, causing intermittent control
Operator cannot reach or operate a control station due to awkward positioning
Control station lacks emergency stop functionality, creating safety risk
Standard pendant does not fit the operator’s hand or glove size
Control station fails in high dust or wet environments due to poor enclosure

Technical Features

How The Unit Is Built

Six push buttons with arrow tips for up, down, left, right, and two additional functions
One mushroom-shaped emergency stop button with mechanical interlock
Single speed control for all motions
Maximum current rating of 10 A at 500 V
Rated for 500 V-2 A and 250 V-5 A on separate circuits
Double insulated thermoplastic enclosure for electrical safety
Rotary start button with combination button type for reliable actuation
Cable gland entry for secure wiring and strain relief
Housing color yellow with black buttons for high visibility

Specifications

Data From The Original Product Sheet

Model	AR1-63FS
Series	AR1-F
Button No.	6 push buttons + E-stop
Speed	Single
Max Voltage	500 V
Max Current	10 A
Output Rating	500 V-2 A, 250 V-5 A
Working Temperature	-45°C to +55°C
Housing Material	Yellow ABS
Enclosure Protection	Double insulated
Start Type	Rotary
Button Type	Combination
Button Text	Arrow tip
Warranty	12 months
Housing Color	Yellow
Cable Entry	Gland entry
Mounting	Pendant style
Application	Overhead cranes, EOT cranes, bridge cranes

Materials

What The Housing And Contacts Are Made Of

Yellow ABS enclosure for impact resistance and electrical insulation
Double insulated thermoplastic housing for safety in wet or dusty conditions
Black push buttons with arrow tips for clear function identification

Manufacturing Process

How This Unit Is Made

Step 1

Enclosure is injection molded from yellow ABS with double insulation

Step 2

Buttons and rotary start are assembled with mechanical interlock

Step 3

Wiring is routed through cable gland with strain relief

Step 4

Each unit is tested for continuity, insulation, and emergency stop function

Step 5

Final inspection includes visual check of button alignment and housing integrity

Quality Control

What Is Checked Before It Ships

Raw materials inspected before production
Each unit tested for electrical continuity and insulation resistance
Emergency stop function verified under load
Mechanical interlock checked for proper operation

Customization Options

What Can Be Changed On Your Order

Button text can be changed to custom English labels on OEM orders
Number of buttons available from 2 to 6 depending on model
Housing color can be changed upon request for OEM orders
Brand and label printing accepted on bulk orders
Button layout and function mapping can be adjusted for specific crane systems

Comparison

How It Compares With The Alternatives

F24-8D radio remote control	Pendant has no batteries or pairing; radio adds wireless freedom but requires battery replacement and channel setup
XAC series pendant control	XAC is Schneider model compatible; AR1-F is a direct replacement with same interface but lower cost
AR1-Y series pendant control	AR1-Y has different button layout and is not rainproof; AR1-F is designed for outdoor use with sealed enclosure

Use Guide

Getting It Onto The Machine

Confirm the crane control panel voltage and current rating before installation
Ensure the pendant cable length matches the reach required from the operator's station
Install the pendant with the cable gland tightened to prevent strain on internal wires
Test the emergency stop button before first use to verify immediate shutdown
Record the model number and button layout for future replacement or spare ordering
