Pendant Control Overhead Crane

Name: Pendant Control Overhead Crane
Brand: Acontrol Remote

Product Overview

What The Pendant Control Overhead Crane Is For

The AR1-63FD is a 6-button double speed pendant control station for overhead cranes, designed as a wired control unit with a compact, ergonomic form. It features a yellow ABS enclosure and mechanical interlock for safety, allowing reliable operation even with heavy work gloves. The station supports up to 10A at 500V and is rated for operation from -45°C to +55°C, making it suitable for harsh industrial environments. It is part of the AR1-F series, which includes rainproof and standard models for various crane types.

Key Benefits

What You Get From This Unit

Compact and ergonomic design allows easy handling and operation with gloves
Mechanical interlock prevents conflicting button presses for safer operation
Double speed control on all motions enables precise positioning and fast travel
Rated for 10A at 500V, suitable for direct control of contactor coils without external relays
Operates reliably in extreme temperatures from -45°C to +55°C
Yellow ABS housing resists impact and wear on busy shop floors

Photos

Pendant Control Overhead Crane As Supplied

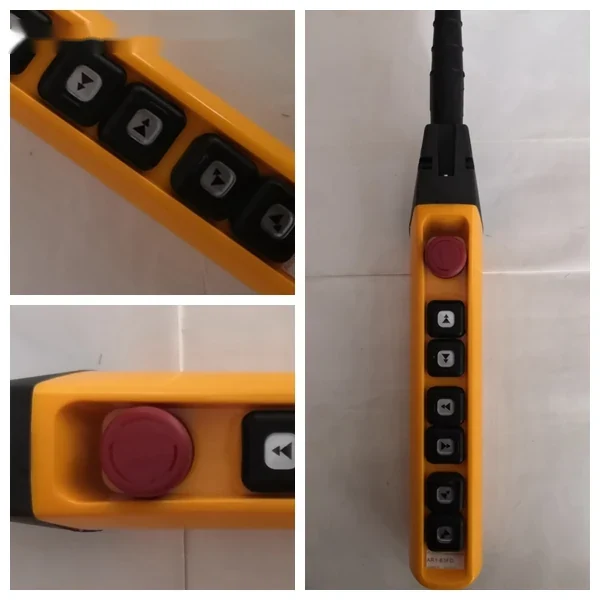

Yellow industrial pendant control station with black directional buttons and red emergency stop button on cable

Application Scenarios

Where This Model Is Used

Overhead cranes in cold storage facilities where low temperature operation is required
Fabrication shops with frequent crane use and heavy gloves worn by operators
EOT cranes where a wired control is preferred over radio due to interference or safety concerns
Single girder and double girder overhead cranes needing a durable, easy-to-maintain control station
Retrofit of an existing crane with a control station that matches the machine's voltage and button count

Who It Is For

Buyers This Model Suits

Crane and hoist OEMs integrating a reliable pendant control into new machine builds
Maintenance teams replacing a worn or damaged control station on an existing crane
Equipment dealers stocking a control unit that fits multiple crane models and voltages
Traders sourcing a wired pendant control from China with low MOQ and fast delivery

Problems It Solves

What Goes Wrong Without It

Existing pendant control fails due to cracked housing or loose buttons in a high-impact environment
Operator cannot operate the crane safely with gloves on due to poor grip or small buttons
Two buttons pressed at once causes unintended motion due to lack of mechanical interlock
Control station fails in cold environments where plastic becomes brittle and breaks
Crane panel runs at 500V and a standard 24V control cannot handle the load without a relay

Technical Features

How The Unit Is Built

6 push buttons plus emergency stop with mushroom head for immediate shutdown
Double speed control on all motions: fast travel and slow approach without extra hardware
Rated for 10A at 500V, with separate ratings for 2A at 500V and 5A at 250V
Housing made from rugged, double insulated thermoplastic material for durability
Operating temperature range from -45°C to +55°C for use in extreme environments
Rotary start button with combination button text for clear function identification
Black button caps for high contrast against yellow housing, improving visibility

Specifications

Data From The Original Product Sheet

Model	AR1-63FD
Configuration	1 pendant control station
Button count	6 push buttons + E-stop
Speed	Double / 2 speed
Max current	10 A
Max voltage	500 V
Working temperature	-45 C to +55 C
Housing material	Yellow ABS thermoplastic
Enclosure protection	Double insulated
Interlock	Mechanical
Start type	Rotary
Button type	Combination
Button text	Arrow tip
Warranty	12 months
Cable length	1 m (standard)
Mounting type	Handheld
Color	Yellow housing, black buttons
Application	Overhead cranes, EOT cranes, bridge cranes

Materials

What The Housing And Contacts Are Made Of

Yellow ABS thermoplastic housing for impact resistance and durability on shop floors
Double insulated construction for electrical safety in high-voltage environments
Mechanical interlock mechanism made from metal and plastic to prevent conflicting button operation

Manufacturing Process

How This Unit Is Made

Step 1

Raw materials are inspected before entering production

Step 2

Housing is injection molded and inspected for defects before assembly

Step 3

Buttons and internal components are assembled with mechanical interlock tested for function

Step 4

Each unit is tested under load at 500V and 10A to verify contact integrity

Step 5

Final inspection includes visual check, button function test, and cable strain relief

Quality Control

What Is Checked Before It Ships

All raw materials and components are inspected upon arrival
In-process checks at each assembly stage ensure correct button alignment and interlock function
Each unit is powered and tested at rated voltage and current before packing
12 month warranty from delivery covers defects in materials and workmanship
Working process follows ISO9001:2008 standards

Customization Options

What Can Be Changed On Your Order

Button text can be customized with your own labels or brand name on OEM orders
Button color and housing color available in standard options upon request
Number of buttons can be adjusted from 2 to 12 depending on control system needs
Single or double speed configurations available based on machine requirements
Brand logo and label printing accepted on OEM and bulk orders

Comparison

How It Compares With The Alternatives

F24-8D radio remote control	Pendant is wired and does not require batteries or pairing; radio adds mobility but needs power and channel management
AR1-C series pendant control	AR1-63FD has mechanical interlock and higher current rating; AR1-C is simpler with no interlock and lower current capacity
XAC series (Schneider model)	XAC is designed for Schneider electrical systems; AR1-63FD is a standalone unit with broader voltage compatibility

Use Guide

Getting It Onto The Machine

Confirm the crane’s control voltage and current rating before ordering the pendant
Check the number of motions needed and select the button count with one spare for future use
Mount the pendant securely on the crane’s control rail or use a handheld grip
Test the emergency stop button regularly to ensure it cuts power immediately
Record the model number and button configuration for future replacement or spare ordering
