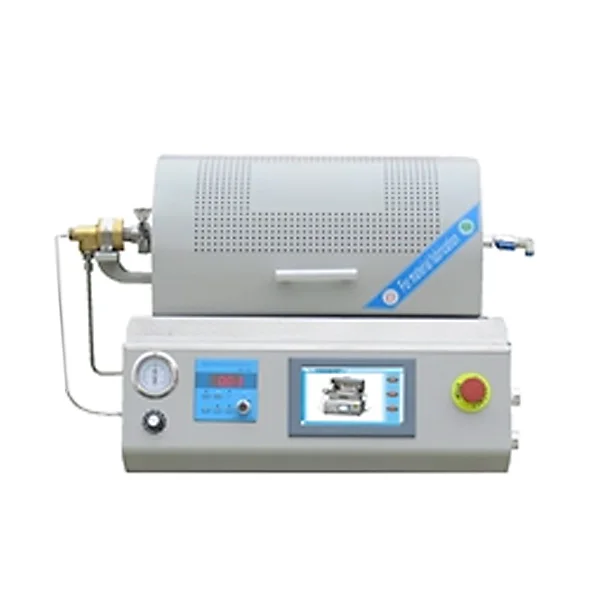

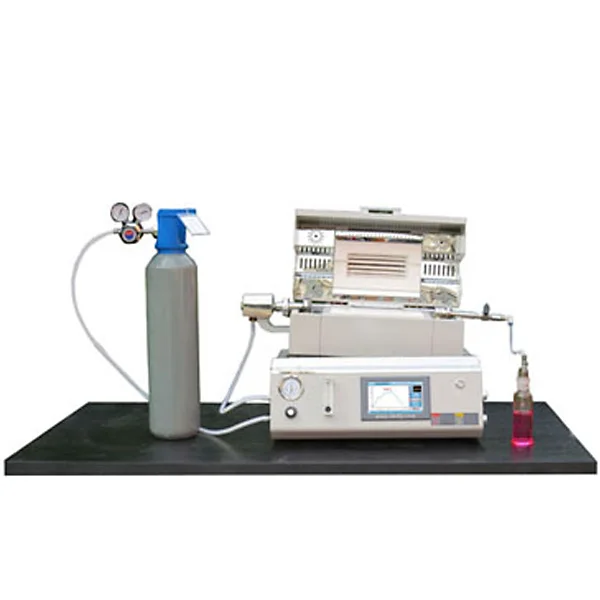

Rotary Sintering Furnace
Applications: The vacuum atmosphere vibrating rotary sintering furnace is designed for: Laboratory calcination, drying, high-temperature reactions, heat treatment, and carbonization of powdered or granular materials. Including but not limited to positive and negative electrode materials for lithium-ion batteries (such...
Applications
The vacuum atmosphere vibrating rotary sintering furnace is designed for:
Laboratory calcination, drying, high-temperature reactions, heat treatment, and carbonization of powdered or granular materials.
Including but not limited to positive and negative electrode materials for lithium-ion batteries (such as iron aluminum phosphate, lithium manganese oxide, lithium cobalt oxide, ternary materials, graphite anodes, etc.), rare earth materials, chemical catalytic materials, magnetic materials, powder metallurgy materials, non-ferrous metal materials, and non-metallic mineral materials like kaolin.
Users can also customize the atmospheric conditions based on the material sintering process.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | RT1200-50TIF | ||
|---|---|---|---|
| Power supply | AC220V 1.5KW | ||
| Max. temperature | 1200 ℃ (＜1 hour) | ||
| Working temperature | 1150 ℃ (continuing) | ||
| Heating rate | ≤ 20 ℃/min | ||
| Length of heating zone | 200mm | ||
| Effective Volume | 55ml | ||
| Intelligent Touch Screen Temperature controller | • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. •30 programmable segments for precise control. •Can store sintering programs to avoid the trouble caused by repeated settings of different processes. •Built in protection for over-heated and broken thermal couple, and leakage. | ||
| Temperature accuracy | +/- 1 ℃ | ||
| Heating element | Molybdenum-Doped Fe-Cr-Al Alloy High-Temperature Heating Wire | ||
| Sealing System | Stainless Steel Sealing Flange | Sealing Tube | |
| Vacuum level：≤10Pa (Mechanical Pump) | |||
| Pressure Measurement and Monitoring | Utilizing a mechanical pressure gauge with shock-absorbing oil to introduce damping effects during pressure fluctuations, reducing the back-and-forth oscillation of the pointer. | ||
| Dimension | 740(L) * 480(W) * 480(H)mm | ||
| Net weight | 30KG | ||
| Warranty | One-year warranty, lifetime support (excluding consumable parts such as furnace tubes, O-rings ) |
Rotary Sintering Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Guides
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Laboratory 1200°C Rocking Tube Furnace with Vacuum and Atmosphere Control
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
High-Temperature Laboratory Ashing Furnace for Precise Thermal Analysis
2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
Ordering Rotary Sintering Furnace
What is Rotary Sintering Furnace typically used for?
Applications: The vacuum atmosphere vibrating rotary sintering furnace is designed for: Laboratory calcination, drying, high-temperature reactions, heat treatment, and carbonization of powdered or granular materials. Including but not limited to positive and n
How quickly can Rotary Sintering Furnace be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Rotary Sintering Furnace within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for Rotary Sintering Furnace?
No. ZYLAB has no minimum order requirement, so a single unit of Rotary Sintering Furnace is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering Rotary Sintering Furnace?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if Rotary Sintering Furnace is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For Rotary Sintering Furnace
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
