High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Highlight Intelligent touch screen controller; Top quality alloy heating wire; Separate heating system and control unit; Vacuum formed ceramic fiber furnace chamber; Come with
Introduction

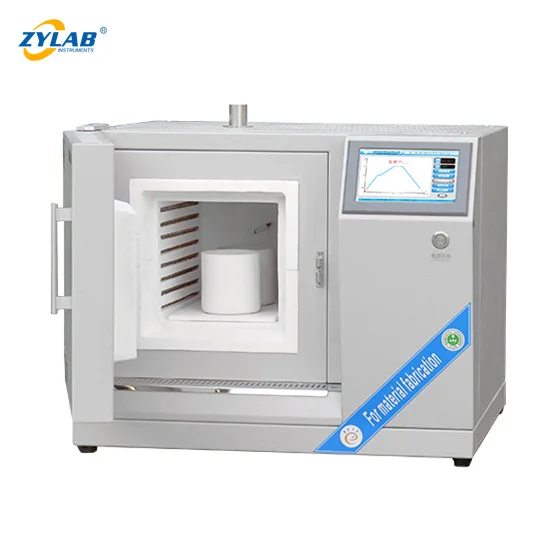

The High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass, with engineers’ ingenious flat design not only greatly enhance the proportion of space, but also fit most people’s operating habits. Separate heating system and control unit can’t interfere with each other, this can ensure that the electric components and the entire circuit system to maintain a safe and reliable working condition in a sustained high temperature environment. At the same of strict control product quality, we pay more attention to customers’ experience to make the operation easier.
Features and Benefits
1. Max. Temperature 1200.C, working temperature RT-1100.C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
6. Vent hole carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal programmable box furnace for material research labs.
Applications
The High-Temperature Lab Furnace is designed for precise thermal processing of soil, biomass, and organic samples to determine carbon content. It is commonly used for:
- Organic carbon testing in environmental and agricultural studies
- Loss-on-Ignition (LOI) analysis for soil and sediment
- Ash content determination in plant materials and biomass
- Sample pre-treatment before carbon and elemental analysis
- Routine analysis in research labs, universities, and environmental agencies
Its compact footprint, temperature uniformity, and programmable controls make it an ideal choice for laboratories with limited space and high-precision needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200 |
|---|---|
| Furnace structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 oC. |
| Chamber size (working space) | 200*200*300mm (other optional sizes: 100*100*100, 150*150*200, 200*120*300, 300*300*300, 300*300*400, 400*400*500mm) |
| Max. temperature | 1200 ℃(<1 hour) |
| Working temperature | Rt -1100 ℃ |
| Intelligent Touch Screen Temperature controller | 1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Furnace Lining | Special lining with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life. |
| Heating Element | High quality resistance wire, three sides heating. |
| Atmosphere Protection Box (Optional) | The Atmosphere Protection Box is an accessory for furnaces designed to create and maintain a specific atmospheric environment, protecting materials being heated from oxidation, contamination, or undesirable reactions with other components in the air. (Custom sizes available.) |
| Heating rate | 0~20℃/min |
| Temperature accuracy | +/- 1 ℃ |
| Thermocouple | K type |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 4 Kw |
| Dimension | 650(W)*520(H)*600(D)mm |
| Quantity / Net weight | 1set / 60kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO |
