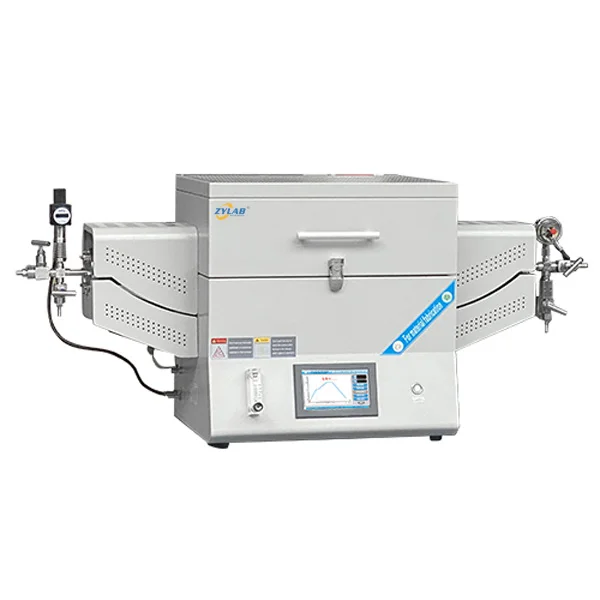

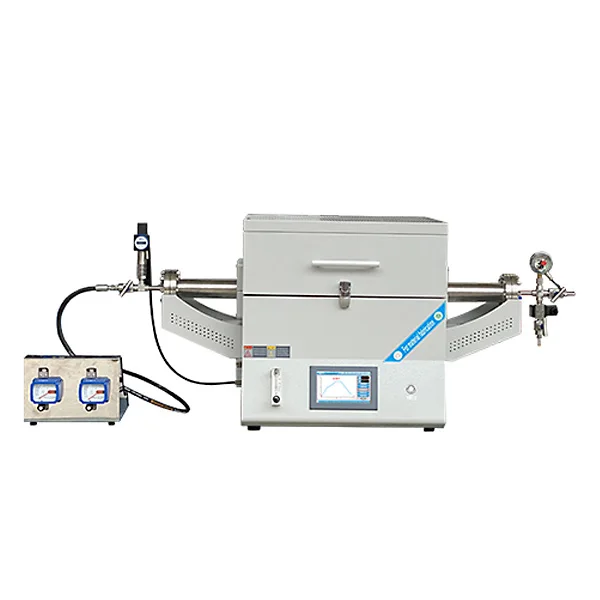

2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
The 2-Zone High-Pressure Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid pressure release valve...
Introduction
The 2-Zone High-Pressure Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid pressure release valve automatically opens to vent the gas, maintaining the pressure inside the tube at the desired level.
This furnace can perform heat treatment on samples in high-pressure gas environments, with a maximum temperature of 1150°C. It is ideal for research on superconducting and dielectric materials.
Features and Benefits of 2-Zone High-Pressure Furnace
- Triple safety protection ensure peace of mind during operation.
- High quality circular heater ensures uniform temperature distribution.
- Modular design for durability and ease of maintenance.
- Stabilized pressure setting for safety and reliability.
- Simple one-touch operation with 15 pre-stored work curves for flexible use.
- Real-time monitoring of sintering temperature and power consumption, ensuring safety and energy savings.
Applications
The High-Pressure Furnace is designed for advanced material research, especially in superconducting and dielectric materials. Its high-temperature capabilities (up to 1150°C) and precise pressure control make it ideal for heat treatment processes under controlled atmospheres.
Include:
- Synthesis and thermal treatment of superconducting materials
- Dielectric material research and sintering
- High-pressure gas reactions and material phase transformations
- Advanced studies requiring high-temperature stability and precision under varied atmospheres
- Controlled environment testing for ceramics, composites, and thin films
This versatile furnace supports high-pressure experiments and is equipped with safety features to ensure reliable performance for intensive laboratory and industrial research applications.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | HP1200A (ID 36mm, OD60mm) | |
|---|---|---|
| Tmax | 1200°C | |
| Power Supply | AC220V 50HZ | |
| Temperature Control Accuracy | ±1°C | |
| Rated Power | 4.0KW | |
| Sensor | K-type thermocouple | |
| Continuous Working Temperature | 300~1100°C | |
| Tube Size | 60 × 1030 mm | |
| Dimensions | L1300 × D550 × H610 mm | |
| Heating Rate | 1°C/hr – 20°C/min | |
| Temperature and Pressure Allowance | The maximum allowable pressure varies with temperature, as shown below: Furnace Temperature | Max Pressure in Chamber |
| 0- 600°C | ≤ 7MPa | |
| 600-800°C | ≤ 6MPa | |
| 800- 900°C | ≤ 3MPa | |
| 900- 1000°C | ≤ 1MPa |
