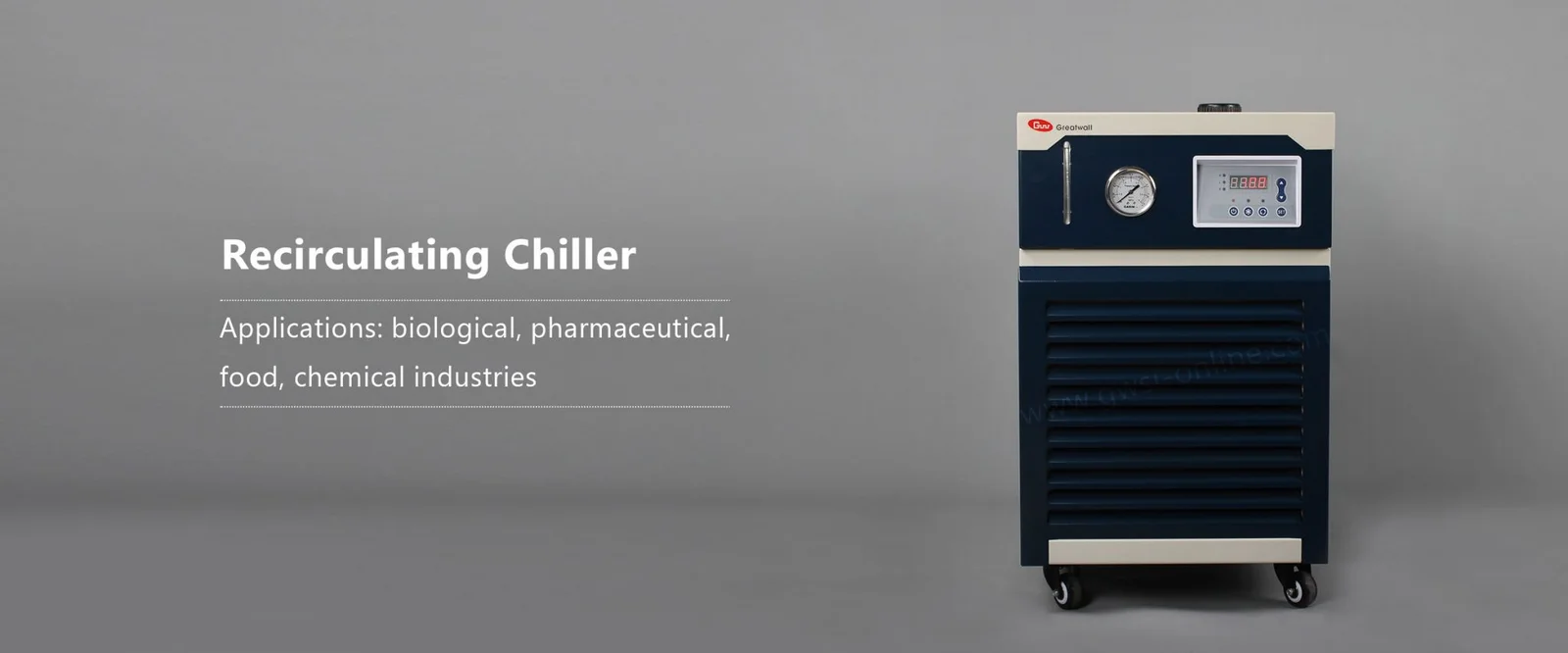

DL Series Recirculating Chiller( Temperature range -30-5℃)
This series Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and...
Introduction
This series Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.
Main Features
1. Application in chemistry and biology, like atomic absorption, ICP-MS, Nuclear magnetic resonance, biological fermenter, chemical reaction vessel (synthetic vessel) etc.
2. Material area: electron microscopy, X-ray diffraction, X fluorescence, magnetron sputtering, vacuum coating machine, laser machine etc.
3. Equipped with world famous brand compressor, ensure low noise, high reliability, stable performance and long life span。
4. High performance circulating pump or imported high pressure vane pump with stable and reliable quality。
5. Pump pressure is adjustable.
6. Compact design with good-looking appearance.
7. Environmental friendly CFC-FREE refrigerant meets international standards.
8. Designed with liquid level monitor, which make it easier to check the bath fluid left in the tank.
9. Pressure of bath fluid can be measured by the pressure gauge which is fixed near the fluid outlet.
10. Variable models to meet customer`s different requirements
11. Removable side panels for quick and easy cleaning and maintenance.
Which Kinds of Industry Can Use This Recirculating Chiller?
1. Application in chemistry and biology, like atomic absorption, ICP-MS, Nuclear magnetic resonance, biological fermenter, chemical reaction vessel (synthetic vessel) etc.
2. Material area: electron microscopy, X-ray diffraction, X fluorescence, magnetron sputtering, vacuum coating machine, laser machine etc.
Applications of Recirculating Chiller
This series Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | DL30-300 | DL30-700 | DL30-1000 | DL30-2500 |
|---|---|---|---|---|
| Working Temperature Range | -30～5℃ | -30～5℃ | -30～5℃ | -30～5℃ |
| Temperature Stability | +/-2℃ | +/-2℃ | +/-2℃ | +/-2℃ |
| Power Supply | 220-240V～ 50/60Hz | 220-240V～ 50/60Hz | 220-240V～ 50/60Hz | 3～, 380V 50Hz |
| Cooling Capacity | 300W (-20℃) | 700W (-20℃) | 1000W (-20℃) | 2500W (-25℃) |
| Refrigerant | R410A | R410A | R410A | R404A |
| Bath Fluid Filling Volume | 10L | 17L | 30L | 40L |
| Circulation Pump Flow Rate | 20L/min | 20L/min | 20L/min | 30L/min |
| Pump Pressure | 0.4Bar | 0.4Bar | 0.4Bar | 1Bar |
| Hose connecting size | 1/2″ | 1/2″ | 1/2″ | 3/4″ |
| Dimensions(mm) W*D*H | 435*690*720 | 465*690*820 | 495*760*860 | 650*1055*1070 |
| Net Weight | 70kg | 80kg | 100kg | 195kg |
DL Series Recirculating Chiller( Temperature Range -30-5℃) In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab -30℃-200℃ Refrigerated Heating Circulator
SY-100-250 Heating Circulator for Reactor
Top Quality SY-50-250D High Temperature Circulator
Dynamic Temperature Control System(-30℃-200℃)
Heating Circulator(Temperature range RT+5～250℃)
Lab 5L Explosion-proof Rotary Evaporator
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
Ordering DL Series Recirculating Chiller( Temperature Range -30-5℃)
What is DL Series Recirculating Chiller( Temperature range -30-5℃) typically used for?
This series Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food pro
How quickly can DL Series Recirculating Chiller( Temperature range -30-5℃) be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship DL Series Recirculating Chiller( Temperature range -30-5℃) within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for DL Series Recirculating Chiller( Temperature range -30-5℃)?
No. ZYLAB has no minimum order requirement, so a single unit of DL Series Recirculating Chiller( Temperature range -30-5℃) is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering DL Series Recirculating Chiller( Temperature range -30-5℃)?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if DL Series Recirculating Chiller( Temperature range -30-5℃) is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For DL Series Recirculating Chiller( Temperature Range -30-5℃)
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
