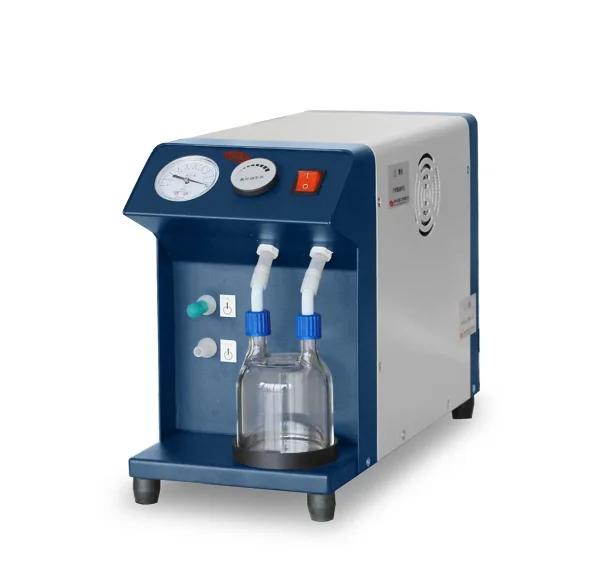

MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
Application Scope: Providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression and degassing. And solvent recollection, extracting for various materials with severe toxicity, flammability and probability of explosion, strong acid and...
Introduction
MP-401 Diaphragm vacuum pump with filter is one of the necessary laboratory equipments used to create vacuum conditions.
You can use the diaphragm vacuum pump with Glass Reactors and Rotary Evaporators in small space as diaphragm vacuum pump require very little area.
The diaphragm vacuum pump can work without water and oil so it is very environmental.
Application Scope
- Providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression and degassing.
- And solvent recollection, extracting for various materials with severe toxicity, flammability and probability of explosion, strong acid and alkali.
- Besides applicable occasion of circulating water vacuum pump and spiral slice vacuum pump, it also can be used in fields like product analysis of medical treatment and medication and Police detective techniques.
Features and Benefits
- Replace circulating water vacuum pump and spiral slice vacuum pump.
- No need of any working medium. No friction in working parts. Is entirely oil-free operation, just plug and play.
- The vacuum is stable. And the degree is easy to be controlled and can be adjusted according to experiment requirements.
- All parts that exposed to gas need surface treatment with Teflon (PTFE) , has complete chemical resistant ability.
- Uses imported PEEK (polyether ether ketone) valve plates and Teflon diaphragms to effectively prevent gas corrosion.
- The special motors is made by the famous electric manufacture ODM with reasonable. transmission design and self cooling exhaustion system that can work for a long time.
- Small volume, light weight, easy to move and save space in the lab.
- Easy to repair and maintain.
- Comes with a silencer to effectively reduce noise.
- The air inlet is equipped with a filter bottle to prevent solid particles and liquid water from entering the pump body.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | MP-401 |
|---|---|
| Power | 250W |
| Electrical Requirements | 1～, 220V/50Hz |
| Rotation Speed | 1400 rpm |
| Inlet Diameter | Φ10*Φ6 mm |
| Outlet Diameter | Φ10*Φ6 mm |
| Ultimate Vacuum | 0.095 Mpa (50mbar) |
| Pumping Speed | 45 L/min |
| Safety | Check Valve |
| Dimensions (mm) | 195W*440D*310H |
| Net weight | 23kgs |
| Warranty | 12 months, lifetime support |
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
High-Performance Two-Stage Rotary Vane Vacuum Pump for Laboratory
High-Precision Digital Vacuum Gauge
High-Speed Direct-Coupled Lab Mechanical Vacuum Pump – 5×10⁻² Pa Ultimate Pressure
Lab 10pa Direct-Drive Rotary Vane Vacuum Pump for Tube Furnace
4.4 × 10⁻³ Pa High Vacuum System Molecular Pump Unit
Rotary Vane Vacuum Pump for Vacuum Glove Box
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
GM-1.0 2cfm Laboratory Oilless Vacuum Pump
Ordering MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
What is MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter typically used for?
Application Scope: Providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression and degassing. And solvent recollection, extracting for various materials with severe toxicity, fl
Can MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
