Lab 5L Explosion-proof Rotary Evaporator
This explosion proof rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in the research and production of medicine, chemical and biological products. It is developed under the condition of vacuum and negative pressure, using the principle...
Introduction
This explosion-proof rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in the research and production of medicine, chemical and biological products.
It is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Main Features
- Main body bracket: stainless steel + aluminum alloy.
- Bathis made of high-quality stainless steel, which is corrosion-resistant and durable.
- Sealing system adopts PTFE and imported fluororubber oil seal combination sealing, which can maintain high vacuum.
- Glass is all made of high borosilicate3.3(GG-17), which is resistant to high temperature and corrosion.
- Handwheel control the host machine goes up and down..
- Digital display of bath, intelligent constant temperature control.
- Electronic stepless speed regulation (0-120rpm), speed digital display, knob setting, easy to operate.
- The vacuum pressure gauge displays the real-time vacuum degree.
- Upright double-layer serpentine coil condenser to ensure high recovery rate.
- Continuous feeding is convenient for customers.
Which Kinds of Industry Can Use This Explosion Proof Rotary Evaporator?
- Pharmaceuticals: Solvent recovery and drug development.
- Chemicals: Safe distillation and synthesis.
- Petrochemicals: Refining and purifying volatile compounds.
- Food & Beverage: Flavor extraction and solvent recovery.
- Cannabis: Safe cannabinoid extraction.
- Biotechnology: Extracting and concentrating bioactive compounds.
- Fragrance & Essential Oils: Distilling aromatic compounds.
- Environmental Testing: Handling hazardous chemicals in labs.
Applications of Explosion Proof Rotary Evaporator
- Distillation
- Purification (purify samples)
- Concentration
- Crystallization
- Extraction
- Drying
- Separation(liquid separation)
- Solvent recovery
- Indistillation of volatile solvents
- Chemical synthesis
- Prepare samples for analysis.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Glass | High Borosilicate Glass GG-17(3.3) |
|---|---|
| Frame | Stainless Steel + Aluminium Alloy |
| Bath | Spray anti-corrosion shell: 385*375*245mm Stainless steel inner: 280*170mm |
| Bottom Plate Size | 350*330mm |
| Rotary Bottle | 5L Φ50 |
| Collecting Bottle | 3L #35 |
| Achievable vacuum | 0.098Mpa |
| Evaporating capability | 60ml/min |
| Rotary Motor | EX40W |
| Rotary Speed | 0-120rpm |
| Heating Power | 2KW |
| Temperature Range | 0-180℃ |
| Temperature Accuracy | ±1℃ |
| Elevating Stroke(mm) | 220mm |
| Voltage | 220V 50/60Hz(others can be customizd) |
| Dimensions | 735*375*1100mm |
| Packing (mm*mm*mm) | 995*590*490 0.29m3 |
| Gross Weight (KG) | 44 |
| Speed-regulation | Electronic Stepless Speed-regulation |
| Rotary Speed Display | Digital |
| Temperature Display | Digital |
| Temperature Control | Intelligent temperature control |
| Sealing | Double Sealing with Teflon(PTFE) |
| Elevating Function | Manual Elevating |
| Condenser Model | Vertical Type 100*590mm |
| Continue Charging | 19# Charging Valve |
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
R-1050 50L Rotary Evaporator
20L Rotary Evaporator

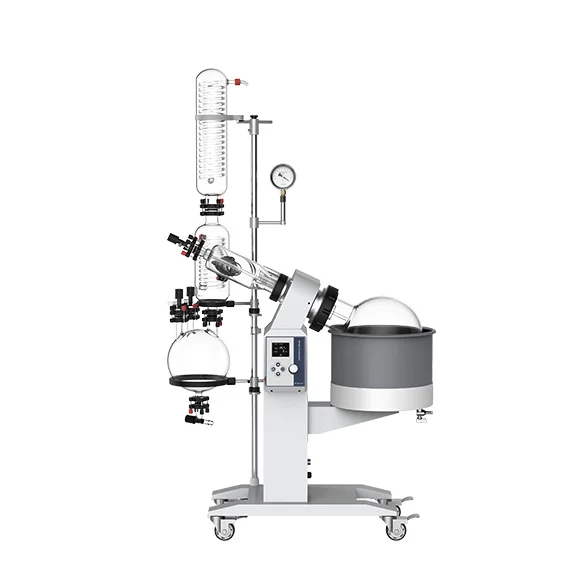

10L Rotary Evaporator

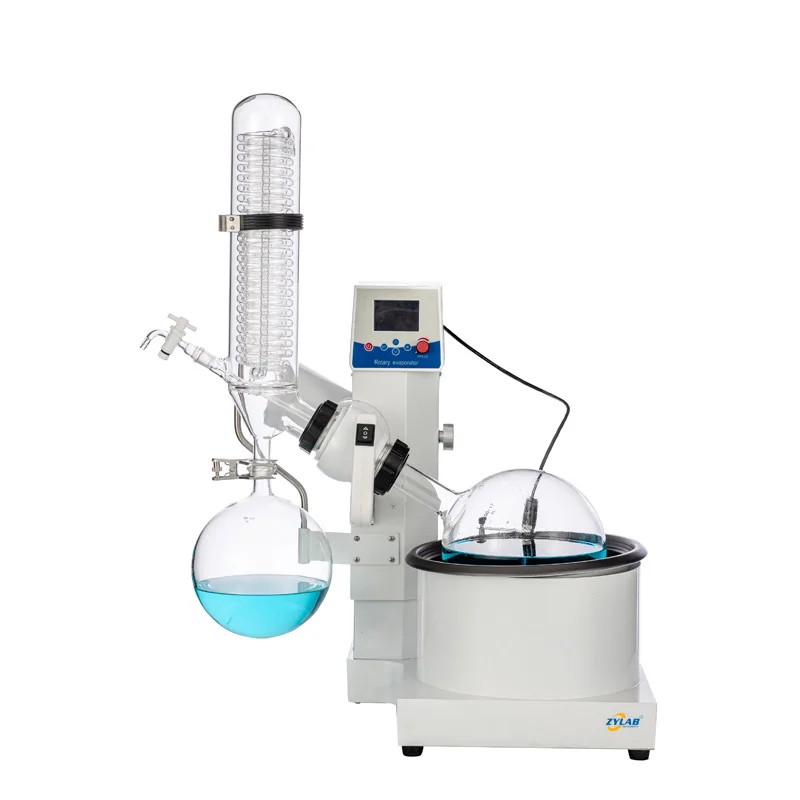

Auto-lifting 5L Rotary Evaporator

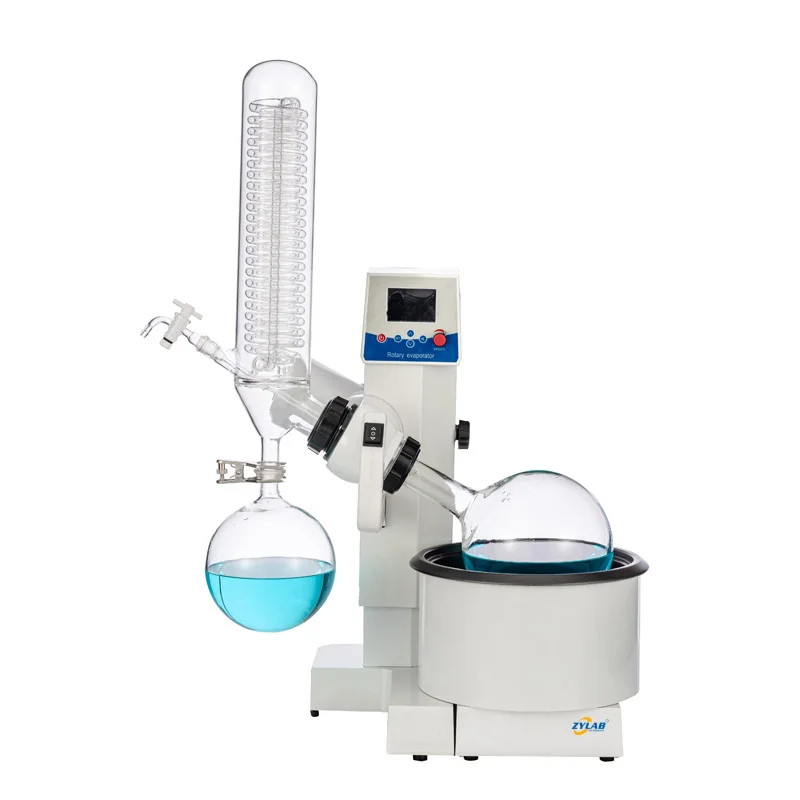

Auto-lifting 3L Rotary Evaporator

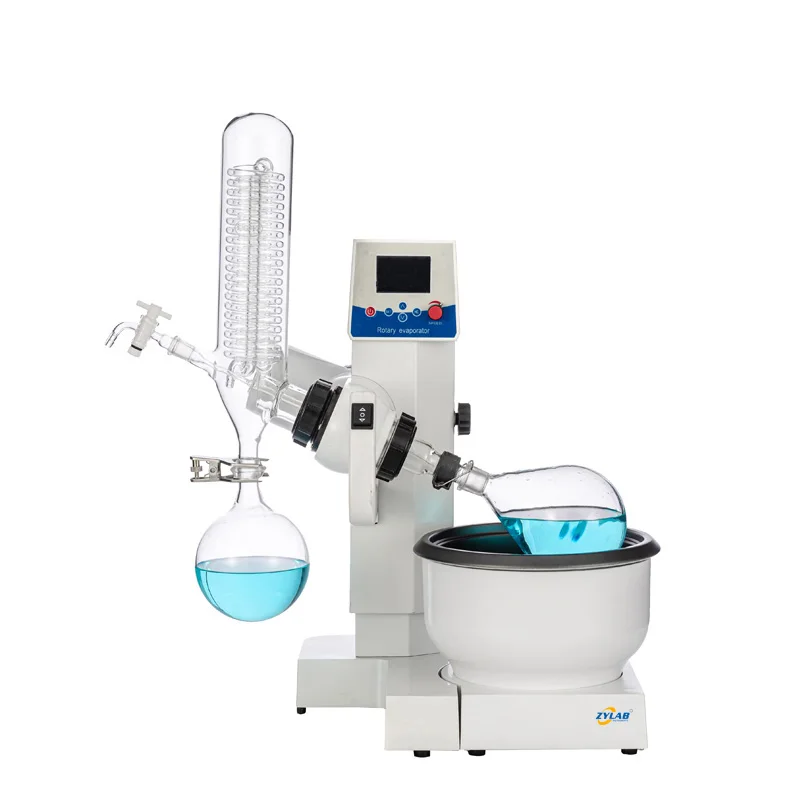

Auto-lifting 1L Rotary Evaporator

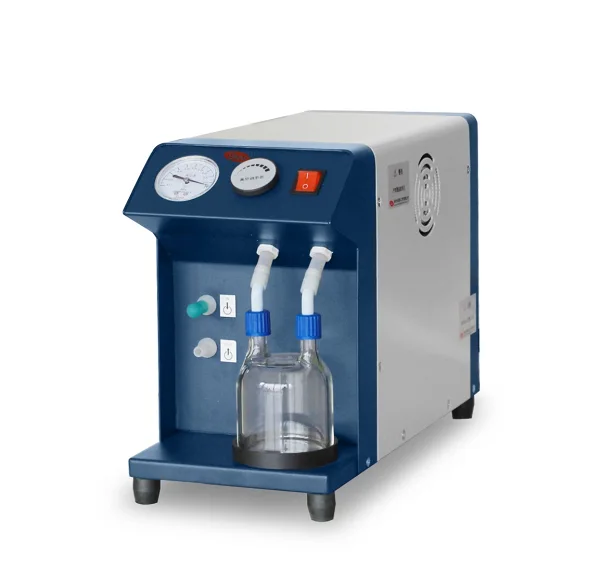

MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
