Heating Circulator(Temperature range RT+5～250℃)
SY series Heating Circulator heat liquids effectively at working temperatures between RT+5 °C to +250 °C for chemical industry, petrochemical industry, laboratory research,
Introduction
This Heating Circulator is a water-cooled type heating circulator. The bath fluid is heated up by electricity and transferred to reactors by circulating pump, which can be applied to pharmaceutical plants, chemical industry, petrochemical industry, laboratory research, etc.
Main Features
1. Designed with exhaust valve, which makes it easy and smooth when filling in bath fluid.
2. Using oil as bath fluid will extend the service life of circulator.
3. Over-temperature alarm, overload protection, over-current protection.

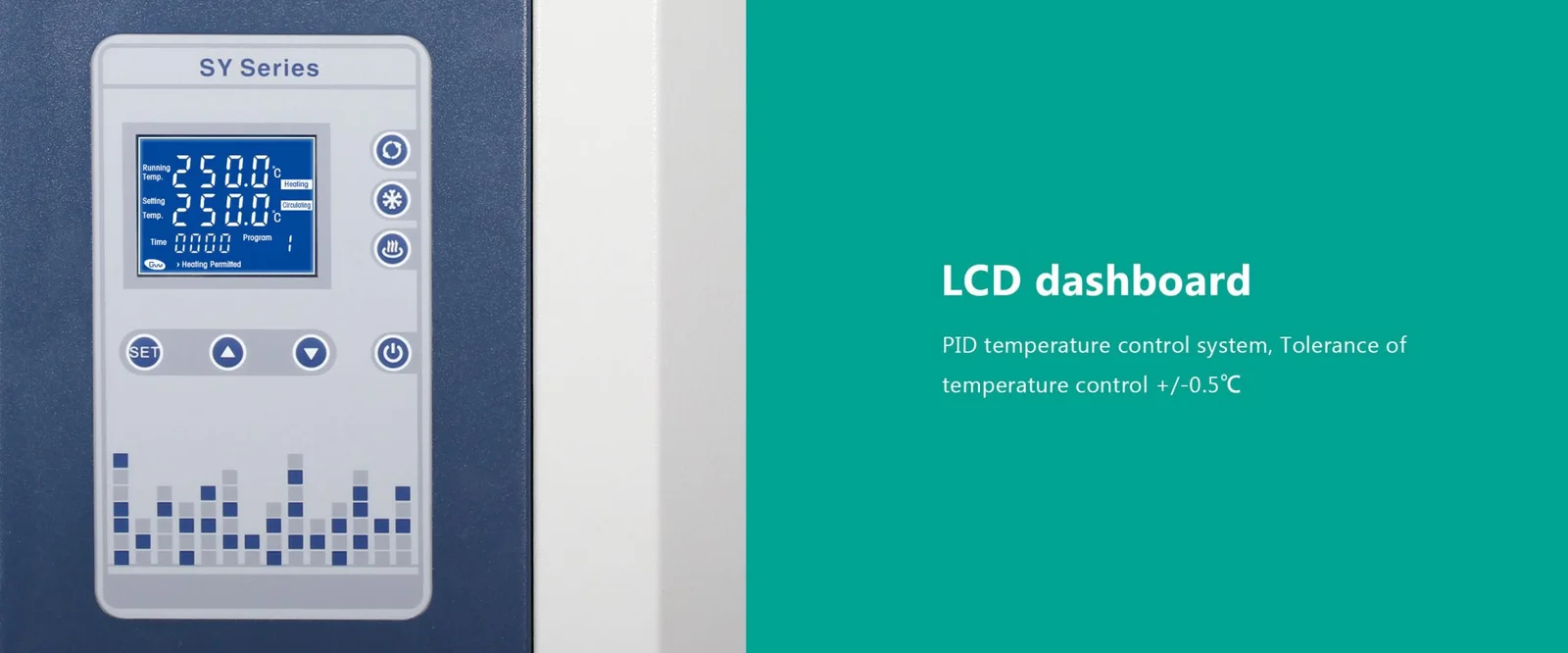

4. Intelligent PID control with high precision.
5.Bath fluid tank is made of anti-corrosive stainless steel.
6.Heating bath fluid circulates in a closed system, which extends its service time.

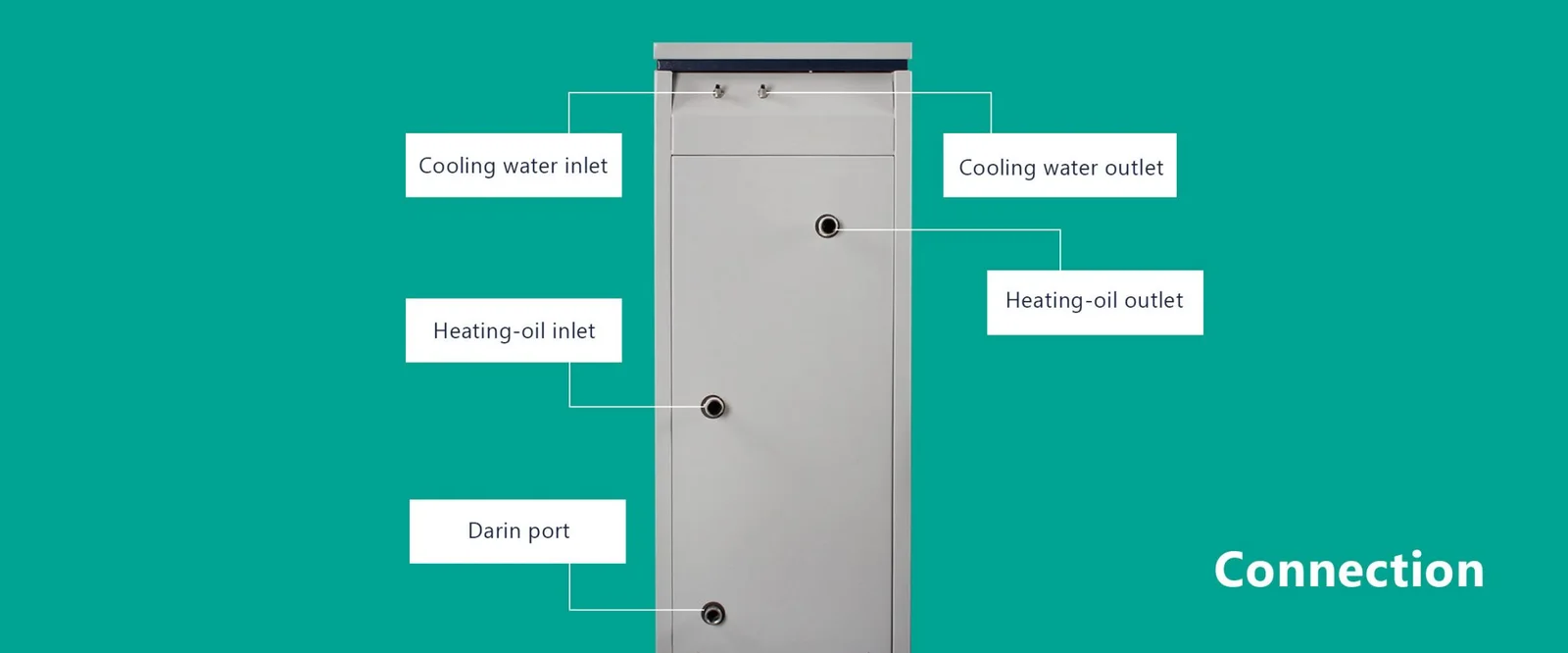

7.Tap water cooling design can down the high temperature bath fluid rapidly.
Which Kinds of Industry Can Use This Heating Circulator?
Pharmaceutical plants;
Chemical industry;
Petrochemical industry;
Biological industry
Laboratory research;
Education; etc
Applications of Heating Circulator
This heating circulators heat liquids effectively at working temperatures between RT+5 °C to +250 °C. Meeting demanding tasks and strict requirements for research, material testing, and production applications.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | SY-20-250 | SY-50-250 | SY-100-250 |
|---|---|---|---|
| Max. temperature | 250℃ | 250℃ | 250℃ |
| Working Temperature Range | RT+5～250℃ | RT+5～250℃ | RT+5～250℃ |
| Temperature Stability | +/-0.5℃ | +/-0.5℃ | +/-0.5℃ |
| Power Supply | 220-240V～ 50Hz | 3～, 380V,50Hz | 3～, 380V,50Hz |
| Pump Power | 370W | 370W | 1500W |
| Max Flow Rate | 42L/min | 42L/min | 100L/min |
| Max Pressure | 2.8bar | 2.8bar | 1.5bar |
| Connection Size | 3/4″ | 3/4″ | 3/4″ |
| Bath Fluid Filling Volume | 9L | 13L | 17L |
| Heating Power | 3W | 6W | 12W |
| Dimensions(mm) | 430W*690D*1075H | 430W*690D*1225H | 640W*940D*1585H |
| Net Weight | 60kg | 120kg | 185kg |
Heating Circulator(Temperature Range RT+5～250℃) In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab -30℃-200℃ Refrigerated Heating Circulator
SY-100-250 Heating Circulator for Reactor
Top Quality SY-50-250D High Temperature Circulator
Dynamic Temperature Control System(-30℃-200℃)
DL Series Recirculating Chiller( Temperature range -30-5℃)
Double Glass Walled Reactor with Dosing System | Temperature Control | For Lab Synthesis & Catalysis
Lab Disperser Emulsifier
Vertical Laboratory Mixer
Ordering Heating Circulator(Temperature Range RT+5～250℃)
What is Heating Circulator(Temperature range RT+5～250℃) typically used for?
SY series Heating Circulator heat liquids effectively at working temperatures between RT+5 °C to +250 °C for chemical industry, petrochemical industry, laboratory research,
Can Heating Circulator(Temperature range RT+5～250℃) be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Heating Circulator(Temperature range RT+5～250℃)?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Heating Circulator(Temperature range RT+5～250℃)?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Heating Circulator(Temperature range RT+5～250℃) packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For Heating Circulator(Temperature Range RT+5～250℃)
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
