Dynamic Temperature Control System(-30℃-200℃)
Mainly used in laboratories for biology, pharmacy, food, and other organic research, dynamic temperature control systems provide high or low temperature liquid necessary to achieve reaction results for
Introduction
Dynamic temperature control system is a hermetic refrigerated heating circulator which is designed for fast heat-up and cool-down times in external applications.
Main Features
1. Wide working temperature ranges using one bath fluid: -30℃～200℃.
2. Refrigeration system, heating system and pre-cooling system can work independently or work together continuously.
3. It is available with air cooling and water cooling.
4. Multi safety protections: Over temperature cut-off, electrical leakage prodtection, over-current protection etc.

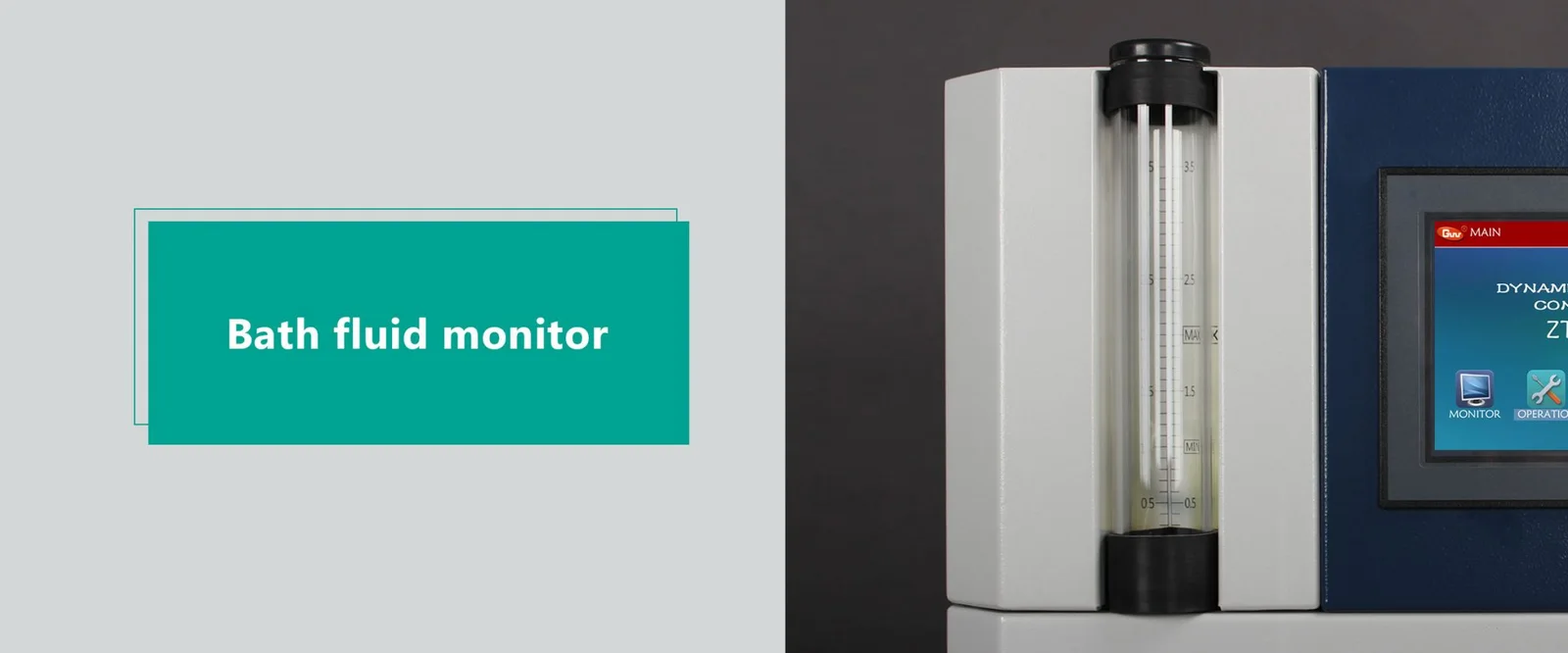

5. Designed with bath fluid monitoring window, avoid shortage of liquid.

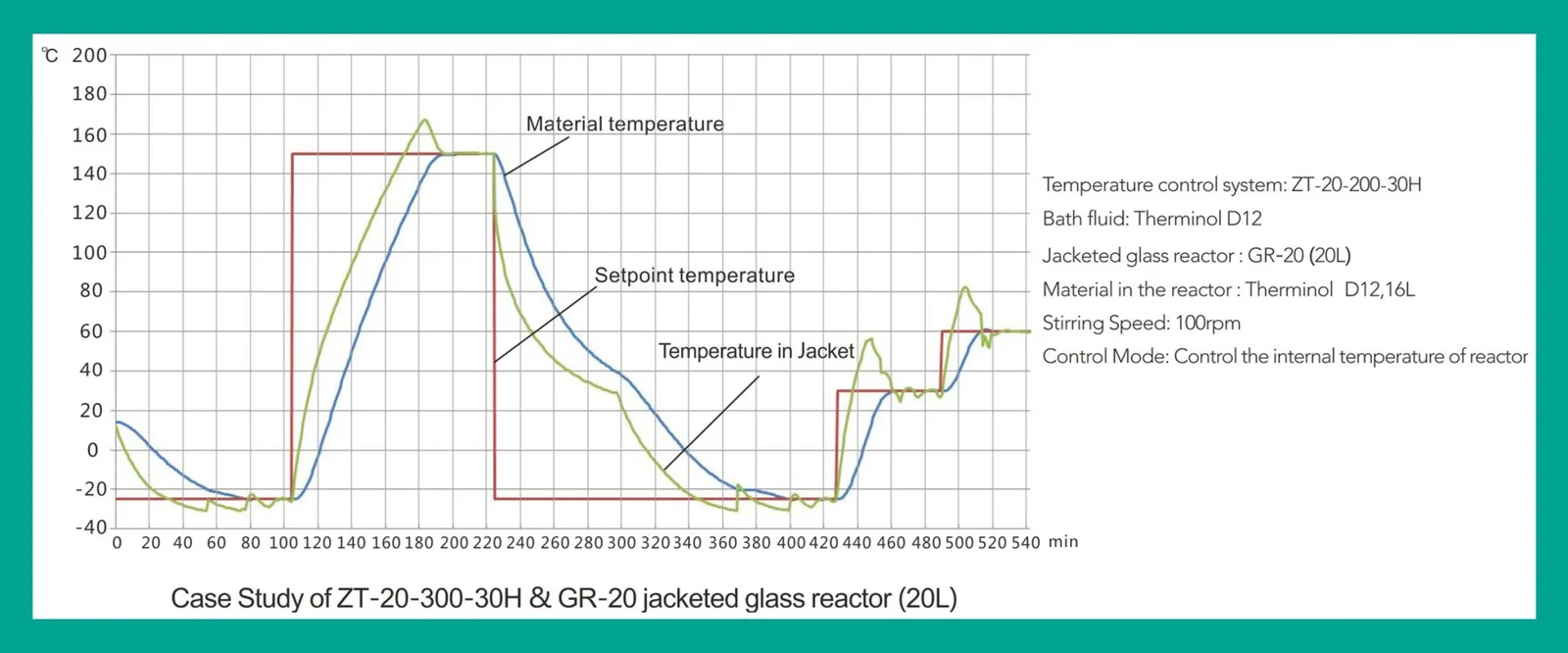

6. Rapid heat-up or cool-down.
Which Kinds of Industry Can Use This Dynamic Temperature Control System?
Biology, pharmacy, food, other organic research,etc laboratories
Education
Applications of Dynamic Temperature Control System

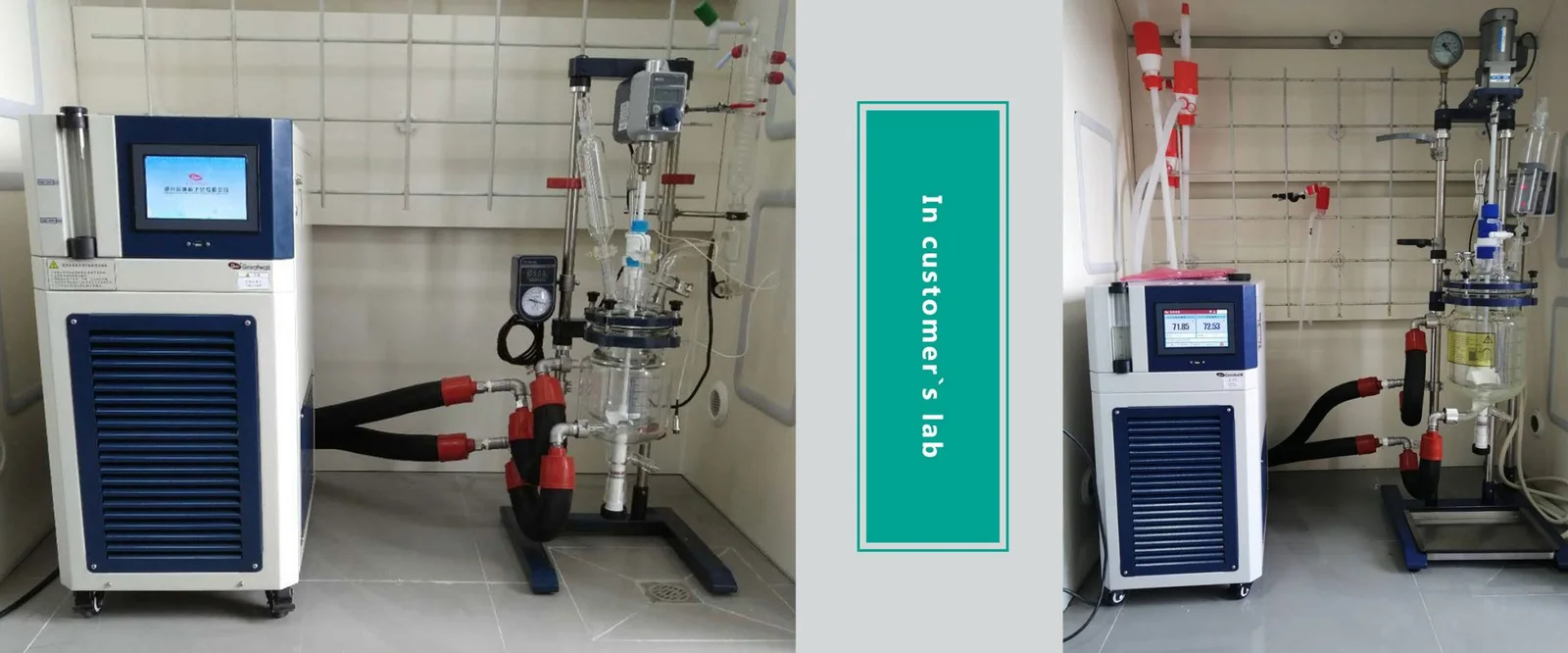

Mainly used in laboratories for biology, pharmacy, food, and other organic research, dynamic temperature control systems provide high or low temperature liquid necessary to achieve reaction results for tests.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | ZT-5-200-30H | ZT-20-200-30H | ZT-50-200-30H | ZT-100-200-30H |
|---|---|---|---|---|
| Working Temperature Range | -30-200℃ | -30-200℃ | -30-200℃ | -30-200℃ |
| Temperature Stability | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Power Supply | 220-240V～ 50Hz | 220-240V～ 50Hz | 3～, 380V,50Hz | 3～, 380V,50Hz |
| Overall Power | 3KW | 4.7KW | 9.2KW | 18KW |
| Cooling Capacity at 200℃ | 0.6KW | 1.7KW | 3.0KW | 3.0KW |
| Cooling Capacity at 10℃ | 0.6KW | 2.6KW | 7.5KW | 8.2KW |
| Cooling Capacity at -10℃ | 0.4KW | 1.1KW | 4.6KW | 6.2KW |
| Cooling Capacity at -20℃ | 0.3KW | 0.7KW | 2.5KW | 4.5KW |
| Cooling Capacity at -30℃ | 0.17KW | 0.3KW | 1.0KW | 2.5KW |
| Regrigerant | R404A | R410A | R404A | R404A |
| Bath Fluid Filling Volume | 3.5L | 10L | 13L | 20L |
| Heating Power | 2KW | 3KW | 6KW | 12KW |
| Flow Rate | 25L/min | 30L/min | 30L/min | 40L/min |
| Pressure | 1.5Bar | 1Bar | 1Bar | 1.4Bar |
| Dimensions(mm) | 420W*640D*850H | 550W*820D*1370H | 813W*1092D*1445H | 875W*1375D*1687H |
| Net weight | 106kg | 177kg | 251kg | 385kg |
Dynamic Temperature Control System(-30℃-200℃) In Detail
