Manual Winding Machine for Electrodes
Applications: The manual winding machine is specifically designed for the winding process of aluminum foil pouch batteries, cylindrical batteries, and the electrode winding process of supercapacitors. It manually winds the positive and negative electrode sheets with the separator into a battery
Applications
The manual winding machine is specifically designed for the winding process of aluminum foil pouch batteries, cylindrical batteries, and the electrode winding process of supercapacitors. It manually winds the positive and negative electrode sheets with the separator into a battery core.
Features and Benefits
1.Adjustable positions for the up, down, left, right, and front-back movement of the guide plate.
2.Equipped with auxiliary support rollers to ensure the tightness and tension of the winding.
3.Precision components with minimal winding needle deflection.
4.Achieves stepless speed regulation.
5.Reversible winding capability.
6.Compact machine size for easy operation and adjustment.
Technical Parameters
•Power Supply: 220V/50Hz
•Power: 40W
•Speed: Adjustable from 0 to 170 revolutions per minute
•Applicable for cylindrical cores: Within a diameter of 30mm
•Equipment Dimensions: L360xW310xH280mm
•Equipment Weight: 20Kg
Optional square winding needle for winding square-shaped batteries.

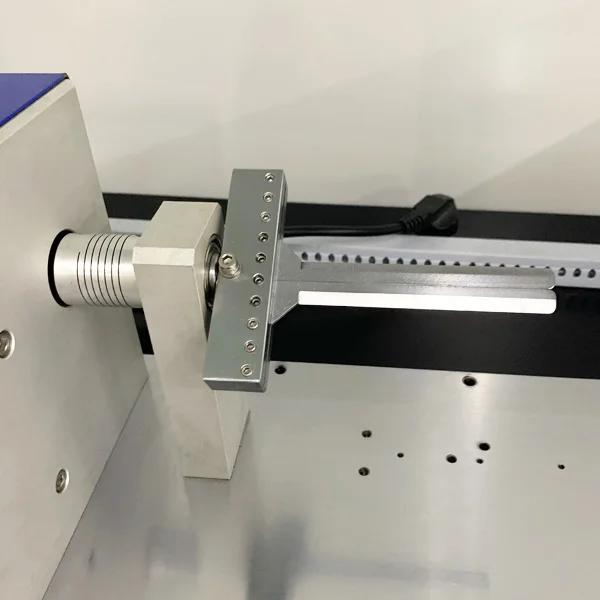

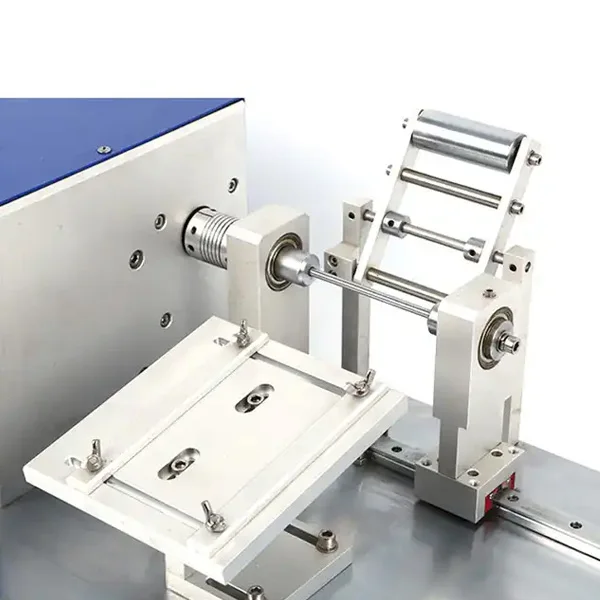

Manual Winding Machine for Electrodes In Detail
Processes This Unit Supports
