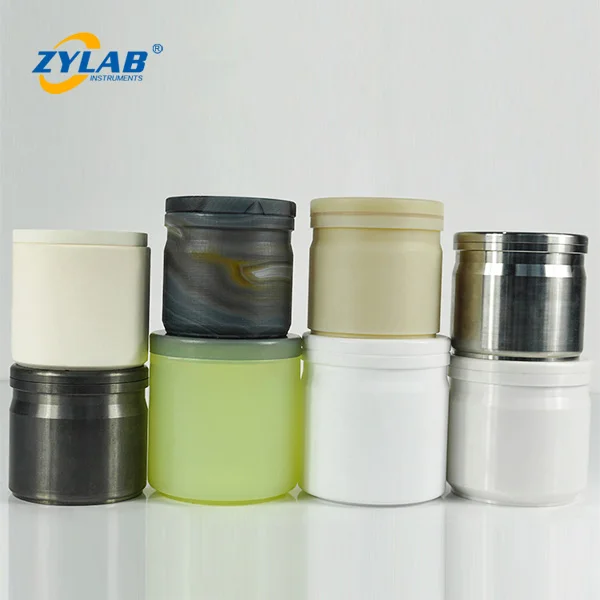

High Purity Alumina Planetary Milling Jar for Laboratory Grinding
The ZYLAB Alumina Planetary Milling Jar is made of high-purity alumina (>95%) and sintered at 1850°C for outstanding hardness, wear resistance, and chemical stability. The jar features a one-piece structure with a large-radius inner transition design, ensuring no dead corners, no leakage, and easy cleaning. With thick...
Introduction
The ZYLAB Alumina Planetary Milling Jar is made of high-purity alumina (>95%) and sintered at 1850°C for outstanding hardness, wear resistance, and chemical stability.
The jar features a one-piece structure with a large-radius inner transition design, ensuring no dead corners, no leakage, and easy cleaning. With thick walls and a flat sealing gasket, it provides a tight seal while preventing material agglomeration. The body is robust, beautifully designed, and ideal for long-term, high-intensity milling. It delivers excellent grinding efficiency and produces ultra-fine, uniformly distributed particles in a short time.
Key Features
High-Purity Alumina (>95%) – Offers excellent hardness, wear resistance, and chemical inertness.
Sintered at 1850°C – Ensures high mechanical strength and long service life.
One-Piece Jar Body – Seamless construction for enhanced durability and easy cleaning.
Flat Sealing Gasket – Provides tight sealing and prevents material agglomeration.
Large-Radius Inner Bottom (R Angle) – Eliminates sedimentation and dead corners.
Thick Wall Design – Improves stability and impact resistance during high-speed rotation.
Ergonomic Design – Smooth, elegant structure with easy opening and closing.
Efficient Milling Performance – Achieves fine and uniform particle size distribution quickly.
Applications
The ZYLAB Alumina Planetary Milling Jar is widely used for fine grinding, mixing, dispersion, and homogenization of powder materials in both laboratory and industrial environments. It is suitable for use in:
Ceramic and advanced material research – Ideal for milling ceramic powders, oxides, and composite materials.
Electronic materials – Used for preparation of phosphors, dielectric materials, and semiconductor powders.
Chemical and pharmaceutical industries – Suitable for grinding high-purity chemical reagents, catalysts, and pharmaceutical precursors.
Metallurgy and material science – Effective for producing metal and non-metal powders with controlled particle size.
Battery and energy research – Commonly used for milling electrode materials such as lithium, nickel, and cobalt compounds.
University and R&D laboratories – Perfect for small-batch sample preparation and material analysis.
Its excellent wear resistance and chemical inertness make it particularly suitable for processes where contamination-free grinding is essential.
Recommended Planetary Milling Setup (for 1L Jar)
Milling Balls Material: High-Purity Alumina
Ball Sizes: 5 mm / 10 mm / 15 mm
Ball Ratio: 5:3:2
Filling Volume: Approximately 1/3 of jar volume
Optimization Basis: Recommended based on extensive laboratory milling experience for best results
Matched Planetary Ball Mill
| Model | Spec | With ball mill jar | Remarks | |
|---|---|---|---|---|
| Spec(ml) | Quantities | |||
| M-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
| M-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
| M-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
| M-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
| M-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
| M-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
| M-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
| M-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
| M-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
| M-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
| M-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
| M-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
| M-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
Optional Turnkey Solution
Planetary Ball Mill
Grinding Balls
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Capacity | Outer Diameter (D) | Inner Diameter (D2) | Bottom Diameter (D3) | Height (H) | Lid Thickness (h) |
|---|---|---|---|---|---|
| 50 mL | 64 | 46 | 58 | 48 | 13 |
| 100 mL | 64 | 50 | 58 | 58 | 13 |
| 250 mL | 90 | 70 | 78 | 78 | 16 |
| 500 mL | 103 | 85 | 86 | 95 | 16 |
| 1 L | 130 | 110 | 116 | 117 | 16 |
| 2 L | 152 | 144 | 144 | 172 | 16 |
| 3 L | 168 | 150 | 150 | 210 | 16 |
| 5 L | 200 | 186 | 186 | 265 | 16 |
