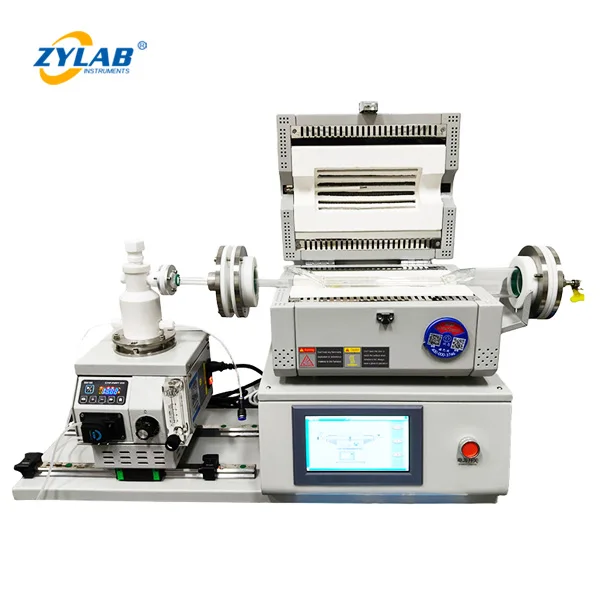

Ultrasonic Atomization Pyrolysis CVD System
The ZYLAB Ultrasonic Atomization Pyrolysis CVD System is an advanced thin-film deposition equipment that integrates ultrasonic atomization with chemical vapor deposition (CVD) technology. It employs ultrasonic waves to atomize liquid precursor solutions into uniform micro- or sub-micron droplets, which are then...
Overview
The ZYLAB Ultrasonic Atomization Pyrolysis CVD System is an advanced thin-film deposition equipment that integrates ultrasonic atomization with chemical vapor deposition (CVD) technology. It employs ultrasonic waves to atomize liquid precursor solutions into uniform micro- or sub-micron droplets, which are then transported by carrier gas into a high-temperature reaction zone. On the substrate surface, the droplets undergo pyrolysis or chemical reactions to form high-quality solid thin films.
This technology is particularly suitable for material systems where high-purity gaseous precursors are difficult to obtain or prohibitively expensive. It represents a significant upgrade over conventional CVD and spray pyrolysis methods.
Key Features
Wide Range of Precursor Sources & Low Cost
The system can utilize inexpensive and readily available liquid metal salt solutions (e.g., nitrates, chlorides, acetates), avoiding costly and hazardous metal-organic gas precursors.Precise Composition Control
Multiple precursor solutions can be mixed in controlled ratios for ultrasonic atomization, enabling precise doping and composition regulation for multicomponent thin films, such as perovskites or ternary cathode materials.Excellent Film Uniformity
Ultrasonic atomization produces fine droplets with narrow size distribution and uniform concentration, resulting in films with consistent thickness and composition.Large Deposition Area
The system supports large-area uniform deposition, making it ideal for roll-to-roll continuous production processes.Relatively Low Operating Temperature
Compared with conventional CVD, certain materials (e.g., FTO) can be deposited at lower temperatures (450–550°C), reducing thermal stress on substrates.Capability to Fabricate Complex Morphologies
By adjusting process parameters such as solution concentration, flow rate, and temperature, the system can control thin-film microstructures, including dense, porous, and nanoparticle-based films.Environmentally Friendly
The system avoids the use of highly toxic metal-organic precursors, and solvents can be recovered and reused, making the process greener and safer.
Applications
Transparent conductive films (e.g., FTO, ITO)
Perovskite solar cells and optoelectronic devices
Battery cathode and anode materials
Multicomponent oxide thin films
Nanostructured coatings for sensors and catalysts
All about Aerosol-Assisted Chemical Vapor Deposition (AACVD) System
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Component | Parameter | Specification |
|---|---|---|
| Ultrasonic Atomizer | Device Name | Corrosion-Resistant Ultrasonic Atomizer |
| Power Supply | Single Phase 220V 50Hz | |
| Rated Power | 55 W (Atomizer: 35 W, Peristaltic Pump: 20 W) | |
| Rated Flow Rate | 9 ml/min | |
| Peristaltic Pump Head Model | WP110 | |
| Peristaltic Pump Tube Size | φ2 mm (ID) × 1 mm (Wall Thickness) | |
| Rotameter (Float Flow Meter) | 0.5–8 L/min | |
| Solution Tank Capacity | 160 ml | |
| Atomized Droplet Size | 5–10 μm | |
| Atomization Frequency | 2.4 MHz | |
| Device Dimensions (with Metal Rail & Base) | 800 mm (L) × 390 mm (H) × 280 mm (D) | |
| Device Weight (with Metal Rail & Base) | ~10 kg | |
| Mini Tube Furnace | Device Name | Mini Tube Furnace |
| Model | O1200-50 | |
| Power Supply | 220V/50Hz | |
| Rated Power | 1.2 kW | |
| Maximum Temperature | 1200℃ | |
| Rated Temperature | 1150℃ | |
| Furnace Chamber | Φ80 × 200 mm | |
| Device Dimensions | 920 mm (L) × 460 mm (H) × 360 mm (D) | |
| Sensor Type | K-type Thermocouple | |
| Recommended Heating Rate | 10℃/min | |
| Compatible Furnace Tube Sizes | Φ25 × 600 mm, Φ50 × 600 mm | |
| Device Weight | ~23 kg | |
| Control System | 1. 15 programmable temperature curves 2. 7-inch full-color touch screen 3. Non-linear temperature correction 4. over-temperature alarm, thermocouple failure warning, leakage protection | |
| Temperature Accuracy | ±1℃ | |
| Service & Warranty | One-year limited warranty with lifetime support (consumable parts such as processing tubes and O-rings are not covered under warranty and should be ordered separately under related products). |
