Stainless Steel Planetary Milling Jars – High-Performance Wet & Dry Milling
Designed with a large-radius bottom, ZYLAB jars effectively reduce material settling during milling, ensuring uniform grinding and improved particle size consistency. The smooth inner and outer surfaces minimize material sticking, enhancing milling efficiency and making cleaning easier. Available in capacities from 50...
Introduction

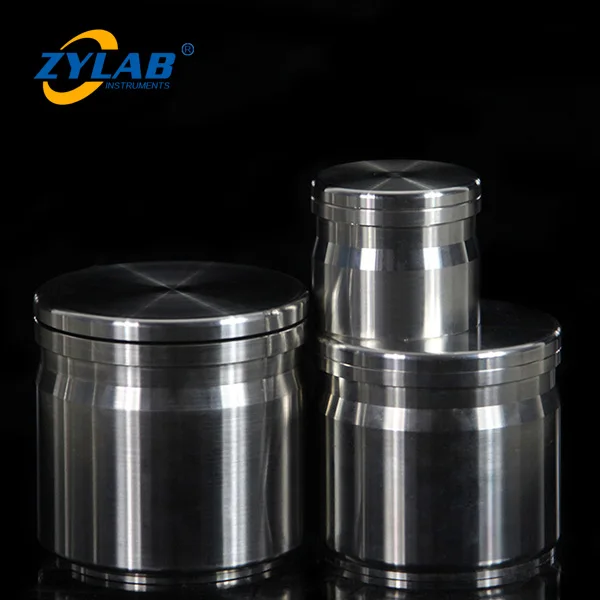

The ZYLAB Stainless Steel Planetary Milling Jars are precision-engineered for high-performance planetary milling applications in laboratories and industrial settings. Constructed from premium 304 stainless steel, these jars provide excellent wear resistance, corrosion resistance, and high-temperature tolerance, making them ideal for rigorous wet and dry grinding tasks.
Designed with a large-radius bottom, ZYLAB jars effectively reduce material settling during milling, ensuring uniform grinding and improved particle size consistency. The smooth inner and outer surfaces minimize material sticking, enhancing milling efficiency and making cleaning easier.
Available in capacities from 50 mL to 1 L, these jars are suitable for both small-scale experiments and larger material science projects, delivering reliable and reproducible results even under demanding conditions.
Note: In addition to stainless steel, ZYLAB planetary milling jars are available in a wide range of materials including tungsten carbide, alumina, zirconia, agate, and others. Contact us to discuss your specific requirements.
Key Features
Mold-Made Smooth Surfaces: Extremely smooth inner and outer walls reduce material sticking during grinding.
High-Quality Material: Crafted from 304 stainless steel for superior corrosion resistance and long service life.
Durable & Wear-Resistant: Can withstand high-speed planetary milling without deformation.
High-Temperature Resistance: Suitable for processes requiring elevated temperatures.
Versatile Milling: Supports both wet and dry grinding applications.
Robust & Reliable: High strength and toughness for safe and stable operation.
Customizable Options: Special sizes and specifications available to meet specific research needs.
Applications
Laboratory Research: Efficient grinding of powders, chemicals, and samples.
Material Science: Preparation of high-purity powders for experiments and analysis.
Nanomaterials & Composites: Effective milling of nanoparticles and composite materials.
Chemical & Pharmaceutical Industries: Suitable for active ingredients, catalysts, and intermediate compounds.
Advanced Research: Ideal for planetary milling processes requiring precise control and high reproducibility.
Recommended Planetary Milling Setup (for 1L Jar)
Milling Balls Material: Stainless Steel
Ball Sizes: 5 mm / 10 mm / 15 mm
Ball Ratio: 5:3:2
Filling Volume: Approximately 1/3 of jar volume
Optimization Basis: Recommended based on extensive laboratory milling experience for best results
Matched Planetary Ball Mill
| Model | Spec | With ball mill jar | Remarks | |
|---|---|---|---|---|
| Spec(ml) | Quantities | |||
| M-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
| M-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
| M-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
| M-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
| M-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
| M-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
| M-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
| M-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
| M-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
| M-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
| M-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
| M-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
| M-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
Optional Turnkey Solution
Planetary Ball Mill
Grinding Balls
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Capacity | Outer Diameter (D) | Inner Diameter (D2) | Bottom Diameter (D3) | Height (H) | Lid Thickness (h) |
|---|---|---|---|---|---|
| 50 mL | 64 | 50 | 64 | 56 | 12 |
| 100 mL | 74 | 60 | 64 | 68 | 12 |
| 250 mL | 94 | 80 | 89.5 | 90 | 13 |
| 500 mL | 103 | 89 | 89.5 | 106 | 13 |
| 1 L | 130 | 114 | 119.5 | 131 | 13 |
