Laboratory High-Temperature High Pressure Tube Furnace

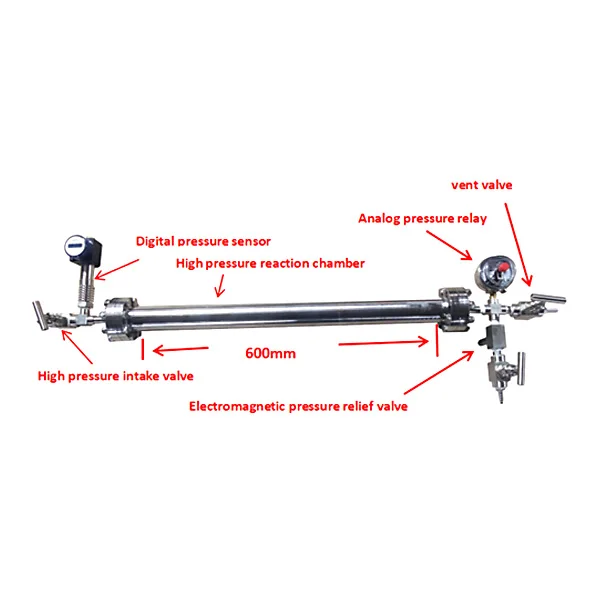

The HP1200 Mini High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid...
Introduction

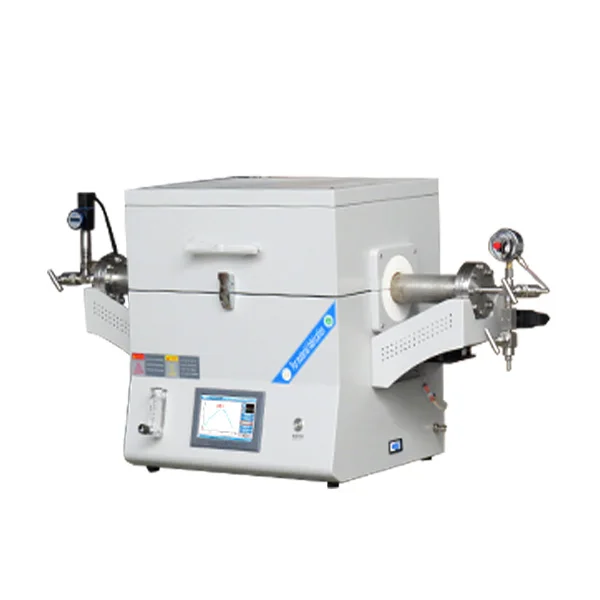

The HP1200 Mini High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid pressure release valve automatically opens to vent the gas, maintaining the pressure inside the tube at the desired level. This furnace allows for heat treatment of samples in a high-pressure gas atmosphere, with a maximum temperature of up to 1150°C, making it suitable for research in superconducting and dielectric materials.
Features and Benefits of High Pressure Tube Furnace
- Triple safety protection ensure peace of mind during operation.
- High circular heater ensures uniform temperature distribution.
- Modular design for durability and ease of maintenance.
- Stabilized pressure setting for safety and reliability.
- Simple one-touch operation with 15 pre-stored work curves for flexible use.
- Real-time monitoring of sintering temperature and power consumption, ensuring safety and energy savings.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | HP1200-2350TIY-D | |
|---|---|---|
| Power Supply | AC220V 1.5KW | |
| Temperature and Pressure Allowance | The maximum allowable pressure is dependent on the temperature, as shown in the table below: Furnace Temperature | Maximum Chamber Pressure |
| ≤ 600°C | ≤ 24MPa | |
| ≤ 800°C | ≤ 20MPa | |
| ≤ 900°C | ≤ 12MPa | |
| ≤ 1000°C | ≤ 6MPa | |
| ≤ 1100°C | ≤ 4MPa |
Laboratory High-Temperature High Pressure Tube Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Laboratory 1200°C Rocking Tube Furnace with Vacuum and Atmosphere Control
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
High-Temperature Laboratory Ashing Furnace for Precise Thermal Analysis
2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
Ordering Laboratory High-Temperature High Pressure Tube Furnace
What is Laboratory High-Temperature High Pressure Tube Furnace typically used for?
The HP1200 Mini High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure i
How quickly can Laboratory High-Temperature High Pressure Tube Furnace be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Laboratory High-Temperature High Pressure Tube Furnace within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for Laboratory High-Temperature High Pressure Tube Furnace?
No. ZYLAB has no minimum order requirement, so a single unit of Laboratory High-Temperature High Pressure Tube Furnace is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering Laboratory High-Temperature High Pressure Tube Furnace?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if Laboratory High-Temperature High Pressure Tube Furnace is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For Laboratory High-Temperature High Pressure Tube Furnace
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
