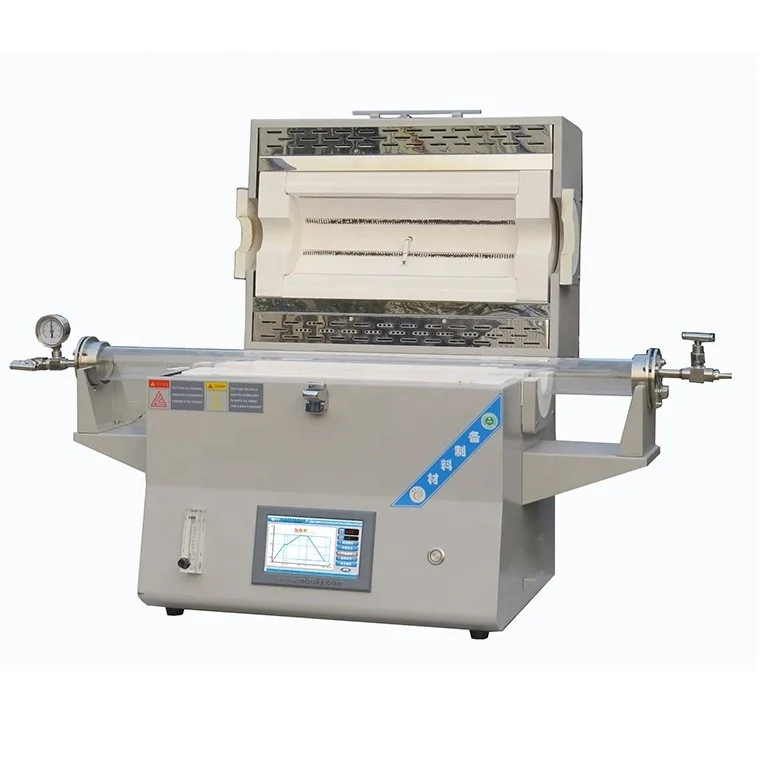

Compact and Versatile Folding Tube Furnace for Laboratory Use
Highlight High purity quartz tube; 7” colored graphic touch panel; Can store and preset temperature curves; Come with gas flowmeter; Unique flange has a multi-function test
Introduction
Our factory devote to developing better laboratory heat treatment equipment, especially tube furnace. Starting from the details, after repeated design, to create this exquisite and convenient tube furnace.
Precise and advanced touch screen auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform and can work under inert atmosphere and vacuum environment.
This Folding Tube Furnace is widely used in the labs of university and research institutions.
Key Features
1. High purity quartz tube as furnace tube, max. temperature 1200.C, continue working temperature Rt –1100.C.
2. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
3. 30 segments programmable and auto control.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6. By using special lining and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
9. Come with gas flowmeter, atmosphere sintering more convenient.
10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Can add modules to contol and download data remotely(optional).
12. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs.
Which Kinds of Industry Can Use This Folding Tube Furnace?
Materials Science, Metallurgy, Chemistry, Environmental Science, Energy Research, University Labs, & R&D Centers, etc.
Applications of Folding Tube Furnace
- Material synthesis, including nanomaterials, powder metallurgy, and ceramic materials.
- Heat treatment processes such as annealing, calcination, and sintering.
- Experiments requiring controlled atmospheres, including inert gas protection, reducing atmosphere, and vacuum processing.
- Semiconductor processing, including wafer annealing, diffusion, and single crystal growth.
- Thermal decomposition, pyrolysis, and gas-solid reactions.
- Chemical vapor deposition (CVD) for thin-film preparation and surface coating.
- Catalyst preparation, activation, and performance testing.
- Research and development in material science, chemistry, and physics.
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Applications of Tube Furnace in the Development of Advanced Ceramic Powder Materials
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | O1200 |
|---|---|
| Chamber Model | Open |
| Chamber Material | High quality import alumina fiber refraction insulation |
| Heating Element | High quality resistance wire |
| Max.temperature | 1200℃(<1hour) |
| Working Temperature | ≤1100℃ |
| Heating Rate | ≤20℃/min(advice:10℃/min) |
| Heating Zone | Single |
| Length of Heating Zone | 440mm |
| Constant Zone | 260mm |
| Tube Material | High Purity Quartz |
| Tube Sizes | Φ50×1000(mm Φ60×1000(mm) Φ80×1000(mm) Φ100×1000(mm Above are standard stock sizes, can be fast delivery within one week. Other sizes can be customized. |
| Sealing Mode | Vacuum Flange — High Quality Stainless Steel Flange |
| Gas Tightness | 4.03×10-3Pa |
| Control Mode | Smart PID Control (Intelligent 7″ touch screen controller) |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve, 30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Working Voltage | AC208-240V 50/60HZ |
| Standard Accessories | Quartz Tube, Vacuum Flange,Vacuum Gauge, Gas Flow Meter,Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |

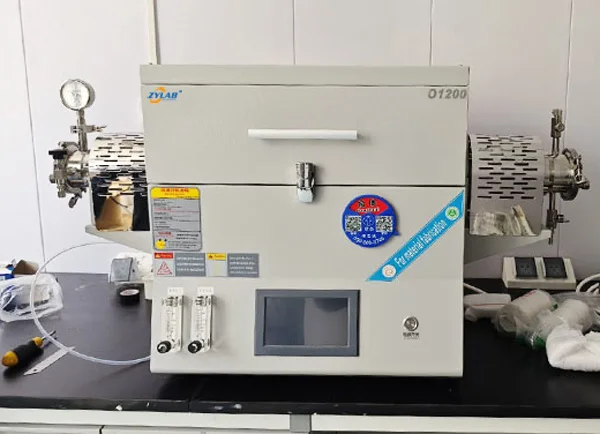

Compact and Versatile Folding Tube Furnace for Laboratory Use In Detail
