Coin Cell Crimper
The Coin Cell Crimper is designed for sealing and disassembling button cells in laboratory testing applications. It is commonly used in universities, research institutes, electronics, and other related
Introduction

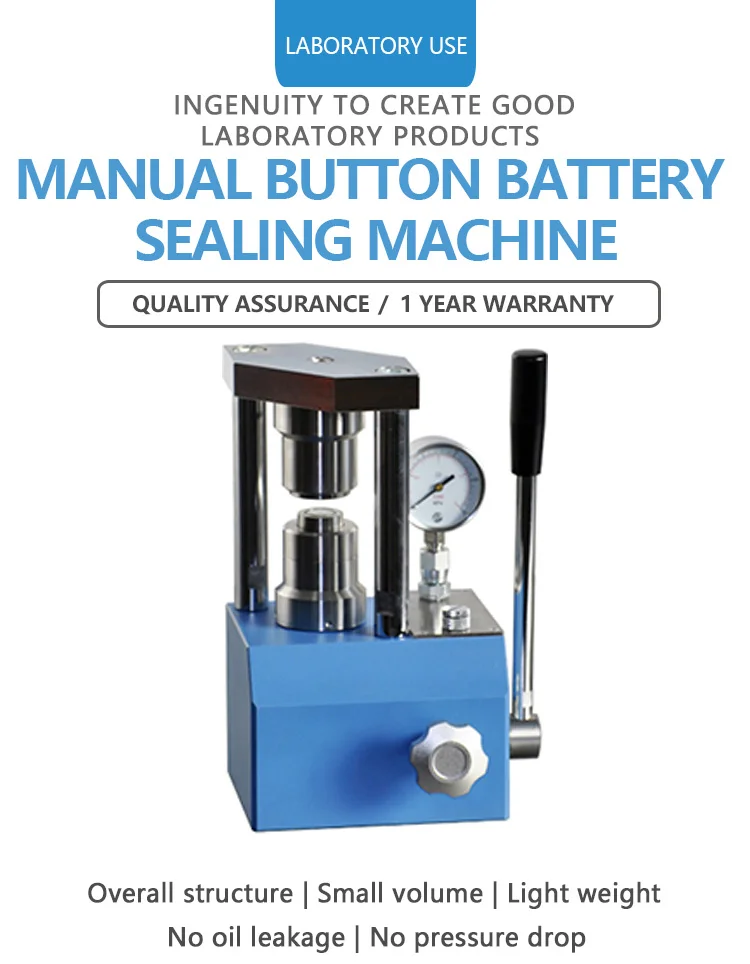

The Coin Cell Crimper, also known as the coin cell sealing machine, is designed for sealing and disassembling button cells in laboratory testing applications. It is commonly used in universities, research institutes, electronics, and other related fields.
Equipped with the standard CR20 series sealing mold, it is suitable for sealing CR20 series button cells. Customization options are available for CR16 series, CR25 series, and CR30 series sealing molds.
With different molds, this machine can also be used for tasks such as pressing electrode sheets and compacting battery powder cakes.
Applications
The Coin Cell Crimper is designed for sealing and disassembling button cells in laboratory testing applications. It is commonly used in universities, research institutes, electronics, and other related fields.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Product Name | Coin Cell Crimper (Coin Cell Sealing Machine) |
|---|---|
| Model | P-2N |
| Pressure range | 0-2T (0-25MPa) |
| Piston diameter | φ32mm |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Standard die | CR20 series packaging die |
| Sealing die | CR16, CR20, CR24, CR30 optional |
| Sealing pressure | 0.8-1.2Ton |
| Disassembly die | CR16, CR20, CR24 optional |
| Disassembly pressure | ＜0.4 Ton |
| Dimensions | 210x165x290mm |
| Weight | 12Kg |
Coin Cell Crimper In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing
Automatic Single Punch Tablet Press for Laboratory Tablet Production
Laboratory 60-ton Automatic Hydraulic Pellet Press with Precision Control
Laboratory 20-ton Automatic Hydraulic Pellet Press with Precision Control
Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)
100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield
Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)
Powder Tablet Mold – Annular Ring Molds
Ordering Coin Cell Crimper
What is Coin Cell Crimper typically used for?
The Coin Cell Crimper is designed for sealing and disassembling button cells in laboratory testing applications. It is commonly used in universities, research institutes, electronics, and other related
How quickly can Coin Cell Crimper be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Coin Cell Crimper within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can Coin Cell Crimper be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Coin Cell Crimper?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Coin Cell Crimper?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For Coin Cell Crimper
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
