Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing
The ZYLAB Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press is a high-precision compacting solution designed for laboratory-scale powder compaction and dry granulation processing. With advanced programmable control, real-time pressure monitoring, and robust safety protection, this equipment is ideal for...
Introduction
The ZYLAB Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press is a high-precision compacting solution designed for laboratory-scale powder compaction and dry granulation processing. With advanced programmable control, real-time pressure monitoring, and robust safety protection, this equipment is ideal for research institutes, universities, and industrial laboratories.
Engineered for reliability and ease of use, this automatic pellet press delivers consistent and repeatable pressing results, making it suitable for applications in materials science, pharmaceuticals, ceramics, battery research, and chemical analysis.
ZYLAB offers a wide range of planetary ball mills and grinding jars for particle size reduction before pressing, as well as Tablet Press Molds compatible with this automatic pellet press.
Applications：
Powder compaction and pelletizing
Dry granulation processing
Battery material preparation
Ceramic and advanced materials research
Pharmaceutical tablet R&D
XRF sample preparation
Metallurgical and chemical laboratories
Matching Die Set：
If you require other special-shaped die sets, or specific types such as tungsten carbide dies, XRF-dedicated molds, or electrically heated die sets, please contact our customer service team immediately. Our technical engineers will assist you in evaluating feasibility and providing customized solutions tailored to your application needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | PP-12A |
|---|---|
| Maximum Pressure | 0–12 Tons |
| Pressure Display Accuracy | 0.01 Ton |
| Display | 5-inch Touchscreen |
| Control Buttons | Metal buttons (silver-plated contacts, >100,000 cycles) |
| Program Control | Up to 18 programmable steps |
| Pressure Curve | Real-time display & USB export (Excel format) |
| Pressurization Speed | Adjustable |
| Safety Protection | Automatic overload protection |
| Limit Protection | Automatic pressure release at max stroke |
| Cylinder Stroke | 30 mm |
| Working Space | 110 × 140 mm |
| Protective Design | Steel frame with plexiglass safety door |
| Power Supply | 500 W (220V / 110V customizable) |

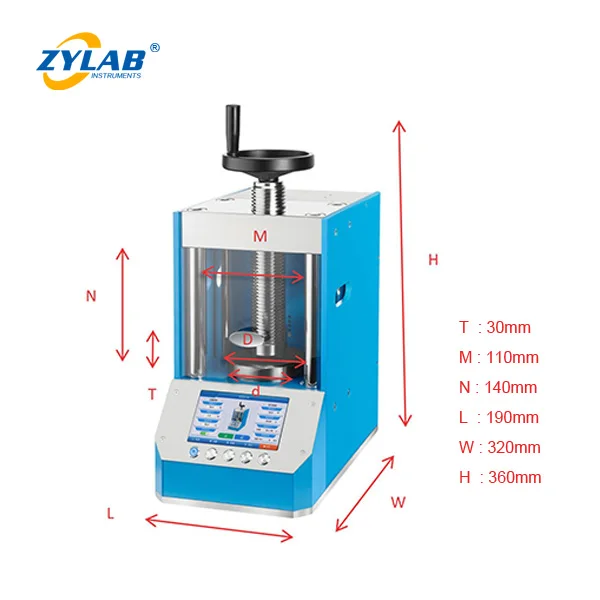

| Dimensions (L × W × H) | 190 × 320 × 360 mm |
| Weight | 50 kg |
