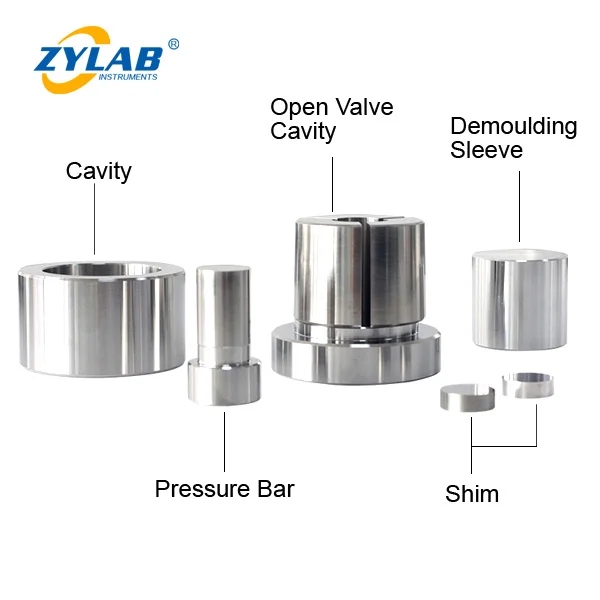

Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)
Optimize your powder compaction process with ZYLAB cylindrical split molds — precision-engineered tooling specifically designed for use with laboratory hydraulic presses. Manufactured from premium high-speed and alloy tool steels, these split die sets deliver excellent hardness, long-term durability, and clean powder...
Overview
Optimize your powder compaction process with ZYLAB cylindrical split molds — precision-engineered tooling specifically designed for use with laboratory hydraulic presses. Manufactured from premium high-speed and alloy tool steels, these split die sets deliver excellent hardness, long-term durability, and clean powder release during tablet or pellet forming.
To grind the required materials into powder with the correct particle size ( from millimeters to micrometers), we recommend using our planetary ball mill and accessories or agate mortar and pestle set.
Applications
Cylindrical split molds are mainly used for pressing powder samples that are difficult to form or demold.
When used with a tablet press, they can be utilized to press various powder materials, such as potassium bromide (KBr), sodium chloride (NaCl), silicon dioxide (SiO₂), aluminum oxide (Al₂O₃), zirconium oxide (ZrO2), etc., to create circular samples, cylinders, or other shapes for scientific analysis and research.
They are widely applied in research, teaching, catalysis, testing, pharmaceuticals, chemical engineering, and the development of new materials.
Specifications
The standard dimensions of ZYLAB cylindrical split molds for powder pressing include Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ13mm, Φ15mm, Φ18mm, Φ20mm, Φ30mm, Φ40mm, Φ50mm, Φ60mm, Φ70mm, and Φ80mm.
Custom sizes are available upon request, with delivery times ranging from 3 to 20 days.
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
Pressure Matching
Note: Molds are generally used within the pressure range of 100-800 MPa and can reach up to 1500 MPa.
Usage and Maintenance
- Before each use, clean the surface of the mold with lint-free paper to remove any anti-rust oil, as it may affect the accuracy of sample test results.
- Place the mold at the center of the tablet press, ensuring the applied pressure does not exceed the mold’s maximum pressure capacity.
- After use, promptly clean any remaining sample from the mold to prevent corrosion.
- If residual samples on the mold surface cannot be removed, avoid using chemical reagents for cleaning or soaking.
- For long-term storage, apply anti-rust oil to the mold and store it in a dry environment.
- Cylindrical Pill Press Mold Kit
- Square Dry Pellet Pressing Mold
- Square Split Pressing Die Set
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| ZYLAB Cylindrical Split Molds for Powder Pressing | ||||||||
|---|---|---|---|---|---|---|---|---|
| Sample Size | 3-10mm | 12-20mm | 30mm | 40mm | 50mm | 60mm | 70mm | 80mm |
| Material | High Speed Tool Steel ASSAB+17 | Alloy tool steel Cr12MoV | ||||||
| Indenter Hardness | HRC68-HRC70 | HRC60-HRC62 | ||||||
| Cavity Depth | 30mm | 40mm | 50mm | 50mm | 55mm | 55mm | 60mm | 60mm |
| Boundary Dimension | Φ43×93mm | Φ53×120mm | Φ73×133mm | Φ95×133mm | Φ115×150mm | Φ127×150mm | Φ153×180mm | Φ180×180mm |
| Weight | 0.75Kg | 1.2Kg | 3.8Kg | 6.3Kg | 14Kg | 20Kg | 30Kg | 40Kg |
